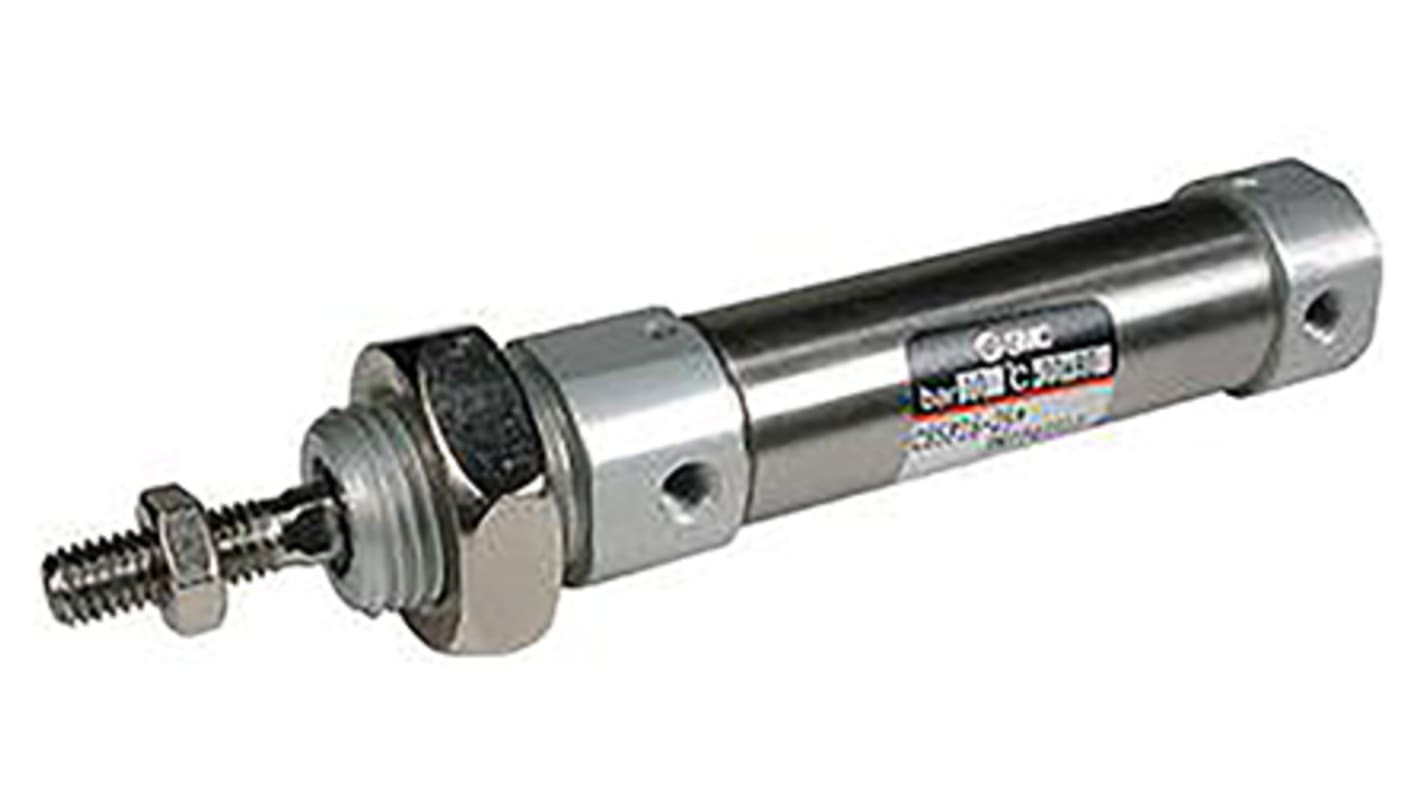

SMC Pneumatic Piston Rod Cylinder - 16mm Bore, 25mm Stroke, CD85 Series, Single Acting
- RS Stock No.:
- 838-8718
- Mfr. Part No.:
- CD85N16-25S-B
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£47.36
(exc. VAT)
£56.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £47.36 |
5 - 9 | £45.45 |
10 + | £43.59 |
*price indicative
- RS Stock No.:
- 838-8718
- Mfr. Part No.:
- CD85N16-25S-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CD85 | |
Bore | 16mm | |
Stroke | 25mm | |
Action | Single | |
Port Connection | M5 x 0.8 | |
Cushioning Type | Rubber | |
Dimensions | 19.7 (Dia.) x 111mm | |
Length | 111mm | |
Diameter | 19.7mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Minimum Operating Temperature | -10°C | |
Weight | 176.2g | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CD85 | ||
Bore 16mm | ||
Stroke 25mm | ||
Action Single | ||
Port Connection M5 x 0.8 | ||
Cushioning Type Rubber | ||
Dimensions 19.7 (Dia.) x 111mm | ||
Length 111mm | ||
Diameter 19.7mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Weight 176.2g | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
SMC C85 Pneumatic Cylinders
SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.
