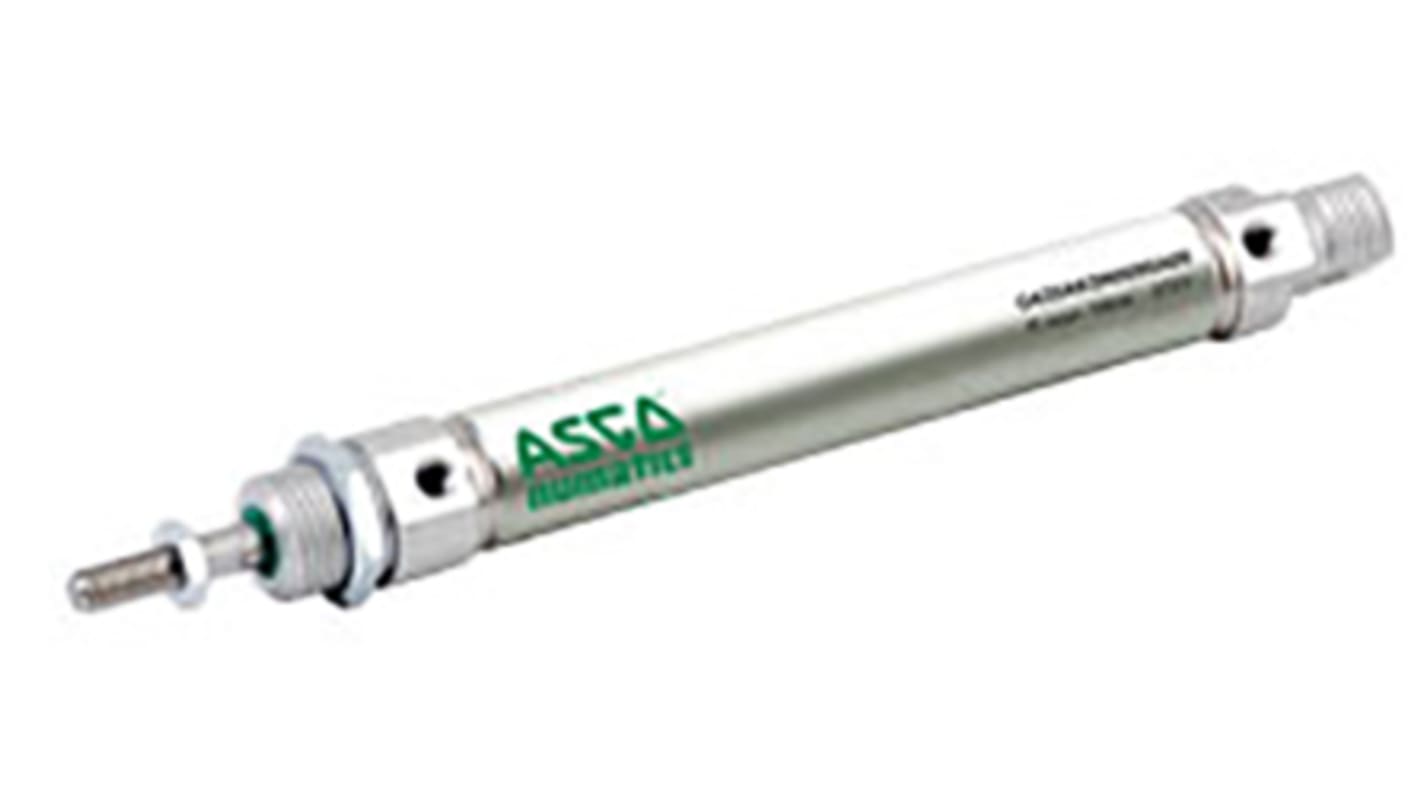

EMERSON – ASCO Pneumatic Roundline Cylinder 16mm Bore, 80mm Stroke, 435 Series, Double Acting
- RS Stock No.:
- 815-7612
- Mfr. Part No.:
- G435AKSN0080A00
- Brand:
- Asco
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£71.05
(exc. VAT)
£85.26
(inc. VAT)
- RS Stock No.:
- 815-7612
- Mfr. Part No.:
- G435AKSN0080A00
- Brand:
- Asco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Asco | |
| Stroke | 80mm | |
| Bore | 16mm | |
| Action | Double | |
| Manufacturer Series | 435 | |
| Length | 187mm | |
| Cushioning Type | Not Cushioned | |
| Dimensions | 187 x 19 x 18mm | |
| Width | 19mm | |
| Maximum Operating Pressure | 10 bar | |
| Height | 18mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand Asco | ||
Stroke 80mm | ||
Bore 16mm | ||
Action Double | ||
Manufacturer Series 435 | ||
Length 187mm | ||
Cushioning Type Not Cushioned | ||
Dimensions 187 x 19 x 18mm | ||
Width 19mm | ||
Maximum Operating Pressure 10 bar | ||
Height 18mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- ES
ISO 6432 Ø 12 → 25 mm micro-cylinders
Manufactured from non-magnetic stainless steel (body) with stainless steel rod for excellent corrosion resistance. Double acting variants are available with or without cushioning. Suitable for use with air or inert gases filtered to 50μm lubricated or un-lubricated and equipped for magnetic position detectors.
Single- or double-acting versions available.
Standards
ISO6432, CETOP RP52P and NF.E49030
