SMC Pneumatic Compact Cylinder - 12mm Bore, 10mm Stroke, CQ2 Series, Double Acting
- RS Stock No.:
- 753-1141
- Mfr. Part No.:
- CQ2B12-10DC
- Brand:
- SMC

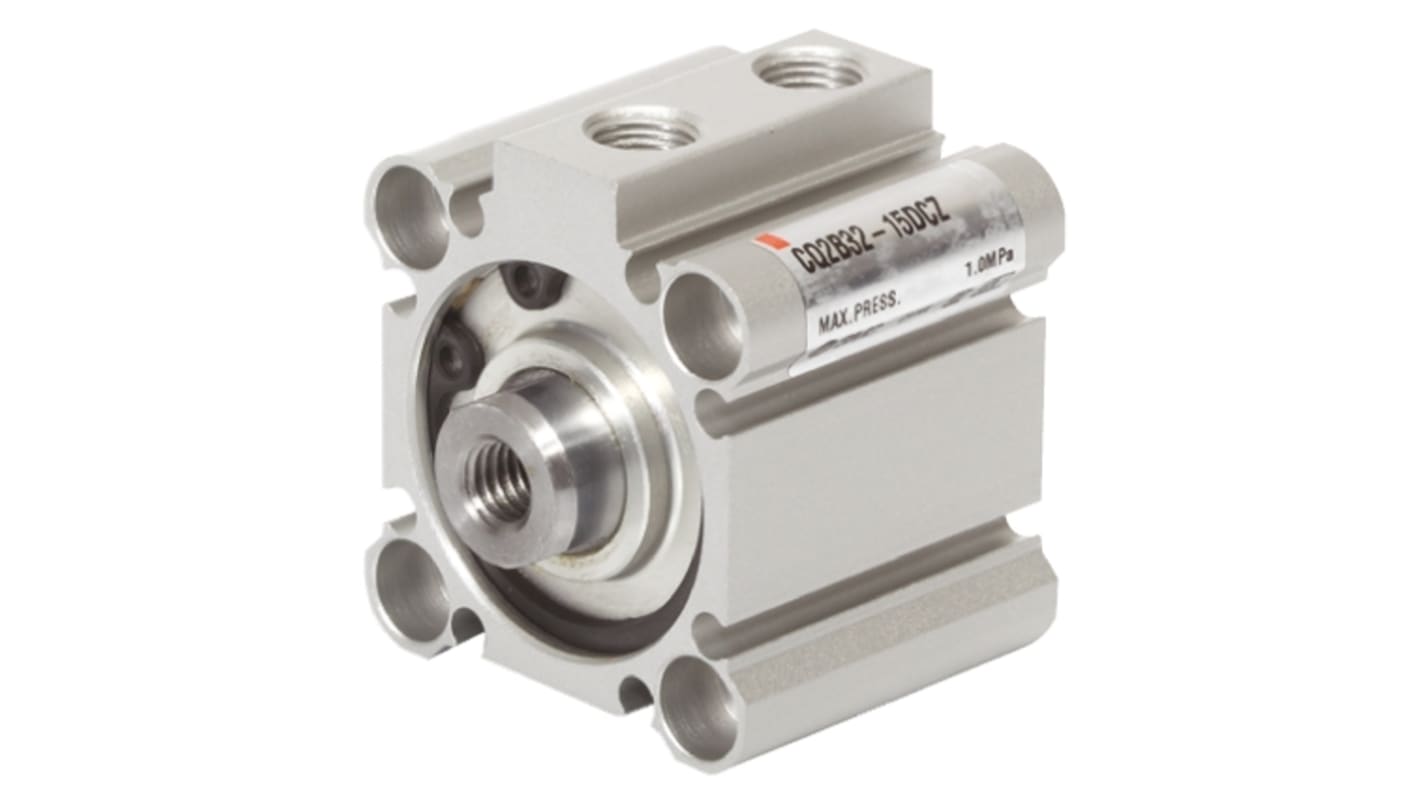

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 753-1141
- Mfr. Part No.:
- CQ2B12-10DC
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Manufacturer Series | CQ2 | |
| Bore | 12mm | |
| Action | Double | |
| Stroke | 10mm | |
| Port Connection | M5 x 0.8 | |
| Cushioning Type | Rubber | |
| Dimensions | 30.5 x 25 x 25mm | |
| Height | 25mm | |
| Length | 30.5mm | |
| Width | 25mm | |
| Absolute Maximum Pressure | 1.5MPa | |
| Maximum Operating Temperature | +70°C | |
| Weight | 35g | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Manufacturer Series CQ2 | ||
Bore 12mm | ||
Action Double | ||
Stroke 10mm | ||
Port Connection M5 x 0.8 | ||
Cushioning Type Rubber | ||
Dimensions 30.5 x 25 x 25mm | ||
Height 25mm | ||
Length 30.5mm | ||
Width 25mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Temperature +70°C | ||
Weight 35g | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
Cylinders
Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.
Space and weight saving
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports
