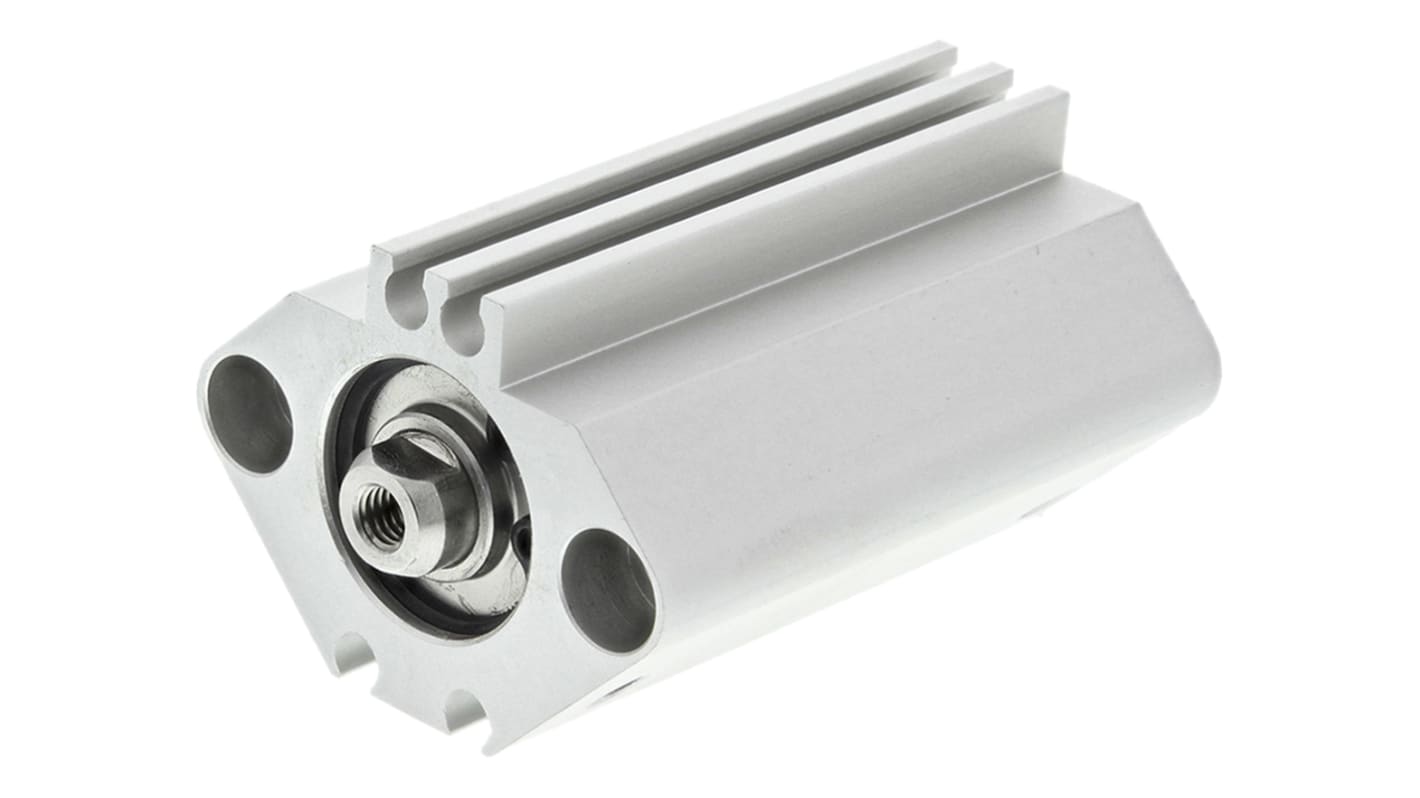

SMC Pneumatic Compact Cylinder - 20mm Bore, 30mm Stroke, CQ2 Series, Double Acting
- RS Stock No.:
- 721-3600
- Mfr. Part No.:
- CDQ2B20-30DZ
- Brand:
- SMC
Save 5% when you buy 5 units
Subtotal (1 unit)*
£38.36
(exc. VAT)
£46.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £38.36 |
5 + | £36.09 |
*price indicative
- RS Stock No.:
- 721-3600
- Mfr. Part No.:
- CDQ2B20-30DZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CQ2 | |
Bore | 20mm | |
Stroke | 30mm | |
Action | Double | |
Port Connection | M5 | |
Dimensions | 54 x 36 x 36mm | |
Length | 54mm | |
Width | 36mm | |
Height | 36mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Weight | 127g | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CQ2 | ||
Bore 20mm | ||
Stroke 30mm | ||
Action Double | ||
Port Connection M5 | ||
Dimensions 54 x 36 x 36mm | ||
Length 54mm | ||
Width 36mm | ||
Height 36mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Weight 127g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Non Compliant
- COO (Country of Origin):
- CN
Cylinders
Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.
Space and weight saving
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports
Magnetic piston
Proof pressure 15bar
Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max
Supplied with tapered and parallel ports
