EMERSON ? AVENTICS Pneumatic Piston Rod Cylinder - 25mm Bore, 25mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 703-5328
- Mfr. Part No.:
- 0822034202
- Brand:
- EMERSON ? AVENTICS

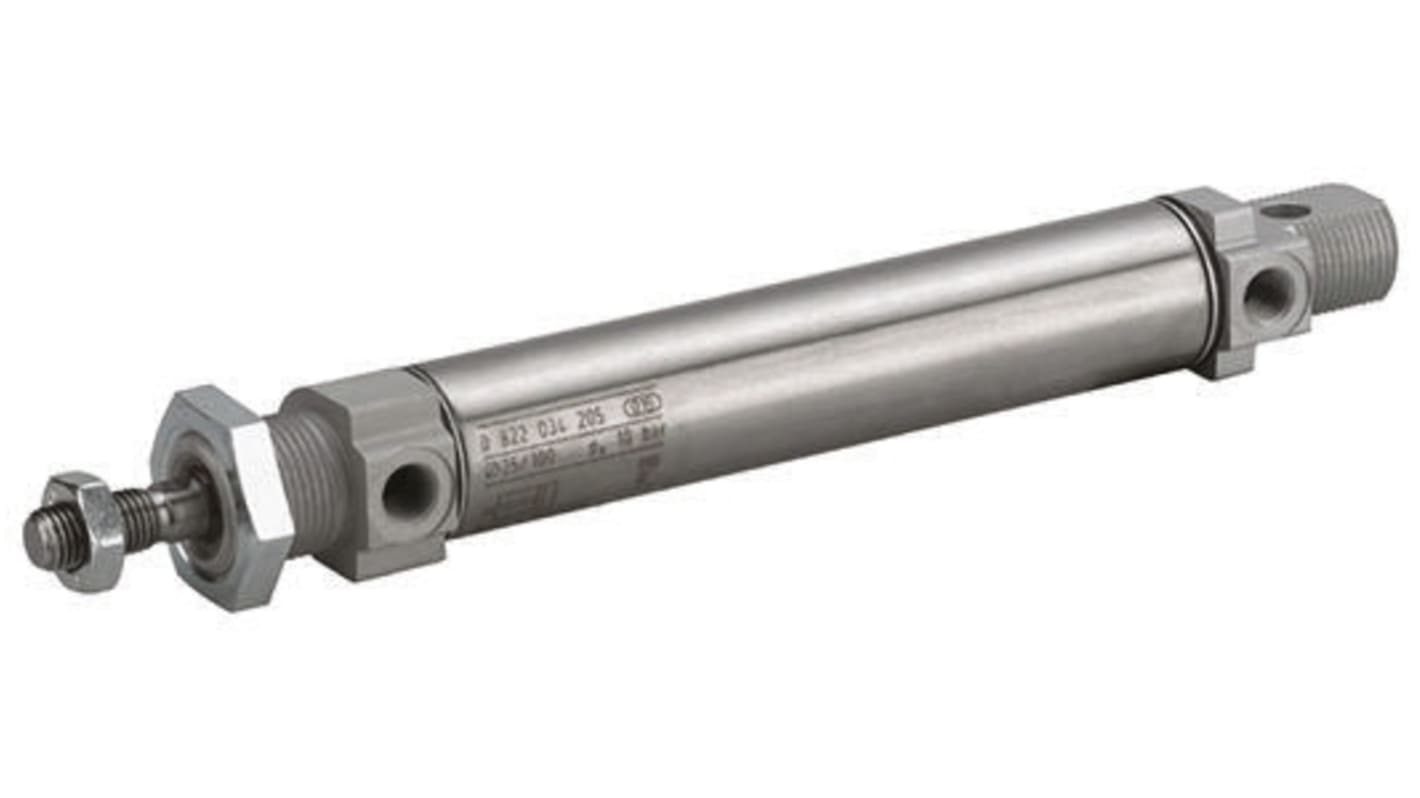

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£81.13
(exc. VAT)
£97.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £81.13 |
5 - 9 | £78.62 |
10 + | £76.11 |
*price indicative
- RS Stock No.:
- 703-5328
- Mfr. Part No.:
- 0822034202
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Action | Double | |
Stroke | 25mm | |
Bore | 25mm | |
Port Connection | G 1/8 | |
Cushioning Type | Rubber | |
Height | 28mm | |
Length | 144.5mm | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -25°C | |
Weight | 266g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Action Double | ||
Stroke 25mm | ||
Bore 25mm | ||
Port Connection G 1/8 | ||
Cushioning Type Rubber | ||
Height 28mm | ||
Length 144.5mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -25°C | ||
Weight 266g | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
MNI mini ISO Cylinder with Elastic Cushioning
Pneumatic ISO 6432 cylinders
Double Acting
Elastic Cushioning
Integrated rear eye
External piston rod thread
Elastic Cushioning
Integrated rear eye
External piston rod thread
MNI Mini ISO Cylinder
