SMC Pneumatic Compact Cylinder - 25mm Bore, 50mm Stroke, CQS Series, Double Acting
- RS Stock No.:
- 700-6153
- Mfr. Part No.:
- CDQSB25-50D
- Brand:
- SMC

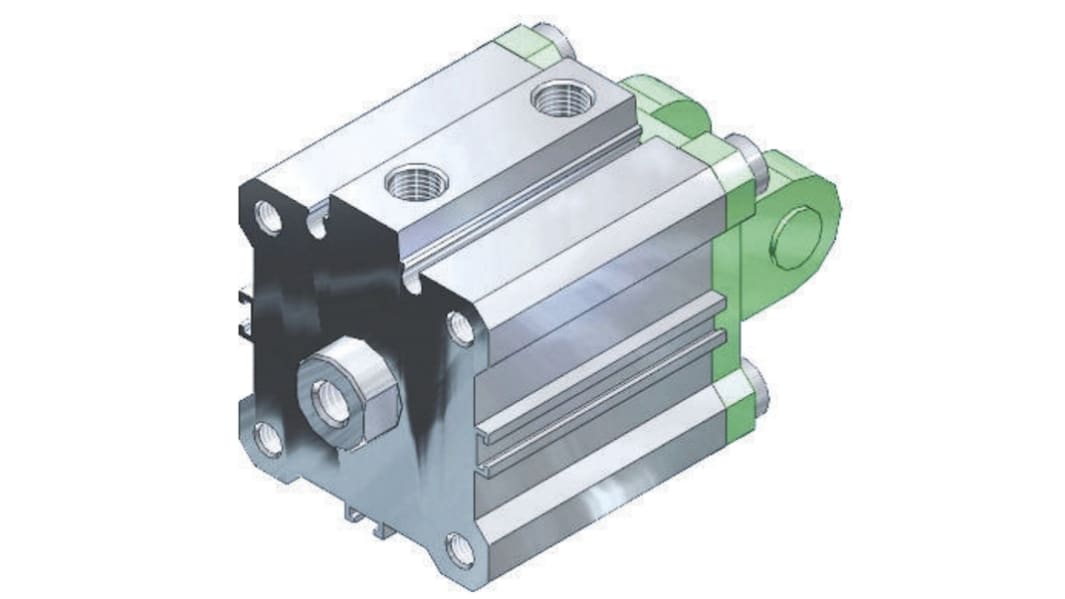

Image representative of range
Save 5% when you buy 5 units
Subtotal (1 unit)*
£57.68
(exc. VAT)
£69.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £57.68 |
5 + | £54.28 |
*price indicative
- RS Stock No.:
- 700-6153
- Mfr. Part No.:
- CDQSB25-50D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CQS | |
Bore | 25mm | |
Stroke | 50mm | |
Action | Double | |
Port Connection | M5 | |
Dimensions | 77.5 x 40 x 40mm | |
Height | 40mm | |
Width | 40mm | |
Length | 77.5mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +70°C | |
Weight | 234g | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CQS | ||
Bore 25mm | ||
Stroke 50mm | ||
Action Double | ||
Port Connection M5 | ||
Dimensions 77.5 x 40 x 40mm | ||
Height 40mm | ||
Width 40mm | ||
Length 77.5mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Weight 234g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
CQS Cylinders
The CQS Series of Compact Cylinders is available for those small bore cylinder applications. Both switch capable and non-switch capable body styles are the same.
Space and weight saving
Magnetic or non-magnetic pistons available
Proof pressure 15 bar
Internal thread rod ends
Nitrile seals
Clean Lines
Flush fitting auto switch as standard
Variety of switches and a variety of lead wire lengths
Magnetic or non-magnetic pistons available
Proof pressure 15 bar
Internal thread rod ends
Nitrile seals
Clean Lines
Flush fitting auto switch as standard
Variety of switches and a variety of lead wire lengths
CQS 12-25 mm Diameter
