RS PRO Pneumatic Roundline Cylinder - 25mm Bore, 160mm Stroke, ISO 6432 Series, Double Acting
- RS Stock No.:
- 304-3915
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£66.96
(exc. VAT)
£80.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 12 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £66.96 |
| 5 - 9 | £64.95 |
| 10 + | £62.81 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£66.06
(exc. VAT)
£79.27
(inc. VAT)
- RS Stock No.:
- 304-3915
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Manufacturer Series | ISO 6432 | |
| Bore | 25mm | |
| Action | Double | |
| Stroke | 160mm | |
| Port Connection | G 1/8 | |
| Cushioning Type | Buffer | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Manufacturer Series ISO 6432 | ||
Bore 25mm | ||
Action Double | ||
Stroke 160mm | ||
Port Connection G 1/8 | ||
Cushioning Type Buffer | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- IT

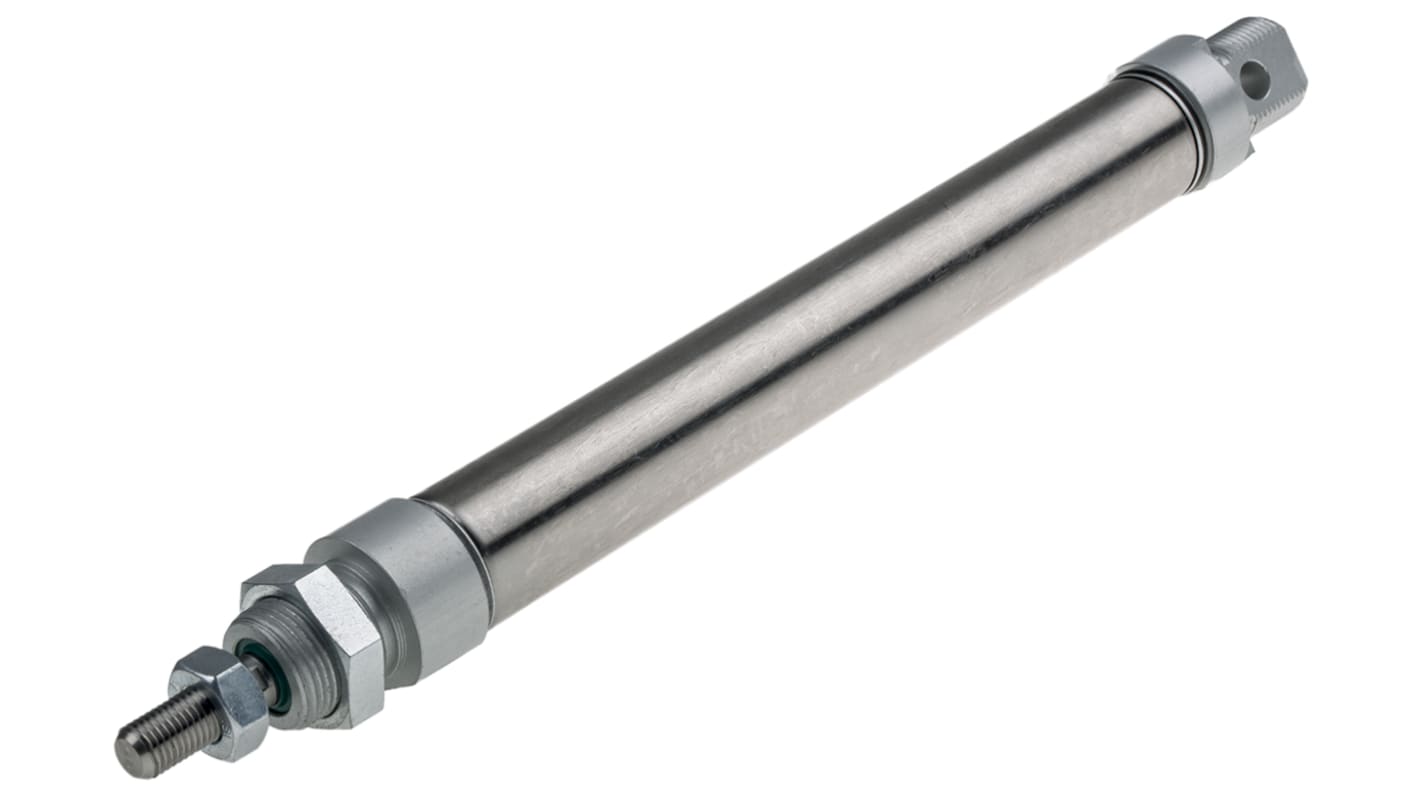

RS PRO Pneumatic Roundline Cylinder 25 mm Bore, 160 mm Stroke, ISO 6432 Series, Double Acting
Need a high-performance piston for use in your air compressor? Choose this RS PRO pneumatic round line cylinder. It's double-acting, so the air pressure applies alternately to each end to produce a longer stroke length than most single-acting cylinders.
Thanks to the built-in end-of-stroke-buffer that cushions the impact of the piston, the cylinder is protected against excessive wear and jolts. It's made of stainless steel, so it's corrosion-resistant and strong enough to withstand heavy-duty industrial use.
This cylinder is a durable choice even when used with non-lubricated air, meaning you can safely use it with oil-free air compressors. Its compact dimensions and durability make it well-suited for use in tight spaces in industrial environments.
Thanks to the built-in end-of-stroke-buffer that cushions the impact of the piston, the cylinder is protected against excessive wear and jolts. It's made of stainless steel, so it's corrosion-resistant and strong enough to withstand heavy-duty industrial use.
This cylinder is a durable choice even when used with non-lubricated air, meaning you can safely use it with oil-free air compressors. Its compact dimensions and durability make it well-suited for use in tight spaces in industrial environments.
Features and Benefits
- Double action
- Bore of 25 mm
- Buffer cushioning type
- Maximum operating pressure of 10 bar
- Operating temperature range of -20°C to +80°C
- G 1/8 port connection
- Single rods
- Stroke of 160 mm
