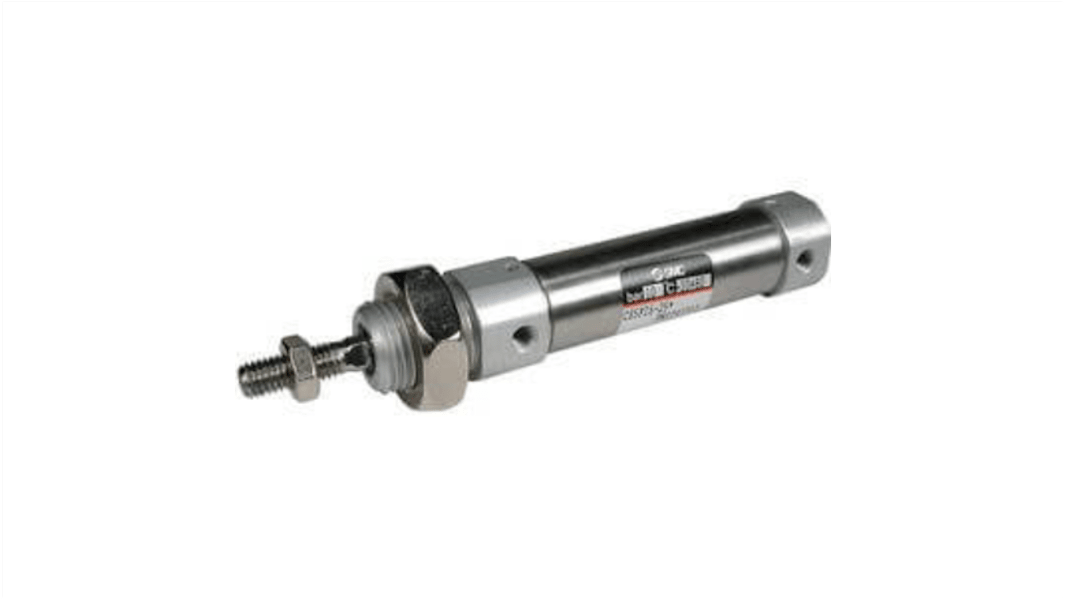

SMC ISO Standard Cylinder - 25mm Bore, 25 mm C85 Series, Double Acting Acting
- RS Stock No.:
- 254-7338
- Mfr. Part No.:
- C85N25-25
- Brand:
- SMC
Subtotal (1 unit)*
£50.02
(exc. VAT)
£60.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 8 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £50.02 |
*price indicative
- RS Stock No.:
- 254-7338
- Mfr. Part No.:
- C85N25-25
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | C85 | |
| Product Type | ISO Standard Cylinder | |
| Action Type | Double Acting | |
| Bore Diameter | 25mm | |
| Mount Type | Direct | |
| Cushioning Type | Rubber Bumper | |
| Stroke Length | 25mm | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Piston Speed | 1500mm/s | |
| Rod Type | Single | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO/21287 | |
| Weight | 0.66lb | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series C85 | ||
Product Type ISO Standard Cylinder | ||
Action Type Double Acting | ||
Bore Diameter 25mm | ||
Mount Type Direct | ||
Cushioning Type Rubber Bumper | ||
Stroke Length 25mm | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Piston Speed 1500mm/s | ||
Rod Type Single | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO/21287 | ||
Weight 0.66lb | ||
The SMC double acting single rod air cylinder has unique rod packing design that prevents entry of dust and the effectiveness of the seal is such that it suitable for use in extremely dusty environments. The tube is impact extruded aluminium to produce an
Easy fine adjustment of auto switch position
No trunnion mounting female thread
Various mounting bracket options
Bore size 25mm
