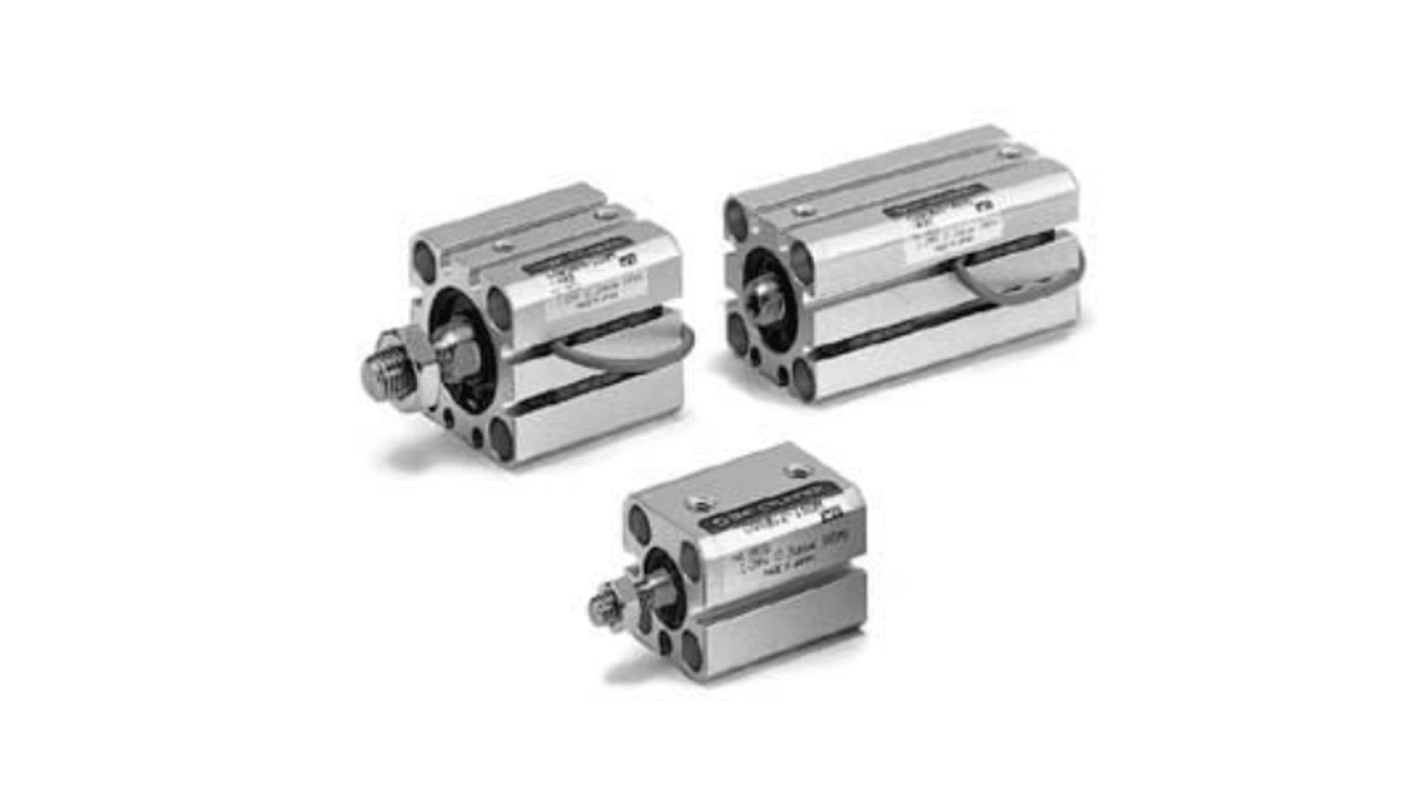

SMC Pneumatic Compact Cylinder - 12 mm Bore, 15 mm CQS Series, Double Acting Acting
- RS Stock No.:
- 254-6113
- Mfr. Part No.:
- CDQSB12-15DCM
- Brand:
- SMC
Subtotal (1 unit)*
£39.78
(exc. VAT)
£47.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.78 |
*price indicative
- RS Stock No.:
- 254-6113
- Mfr. Part No.:
- CDQSB12-15DCM
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | CQS | |
| Product Type | Pneumatic Compact Cylinder | |
| Bore Size | 12mm | |
| Action Type | Double Acting | |
| Mount Type | Through Hole | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Aluminium Alloy | |
| Stroke Length | 15mm | |
| Maximum Operating Pressure | 1 Mpa | |
| Piston Rod Gender | Female | |
| Rod Type | Single | |
| Maximum Piston Speed | 500mm/s | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO/21287 | |
| Weight | 0.13419lb | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series CQS | ||
Product Type Pneumatic Compact Cylinder | ||
Bore Size 12mm | ||
Action Type Double Acting | ||
Mount Type Through Hole | ||
Cushioning Type Rubber Bumper | ||
Body Material Aluminium Alloy | ||
Stroke Length 15mm | ||
Maximum Operating Pressure 1 Mpa | ||
Piston Rod Gender Female | ||
Rod Type Single | ||
Maximum Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO/21287 | ||
Weight 0.13419lb | ||
- COO (Country of Origin):
- CN
The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements.
Standard strokes up to 50 mm
Rubber cushion available
