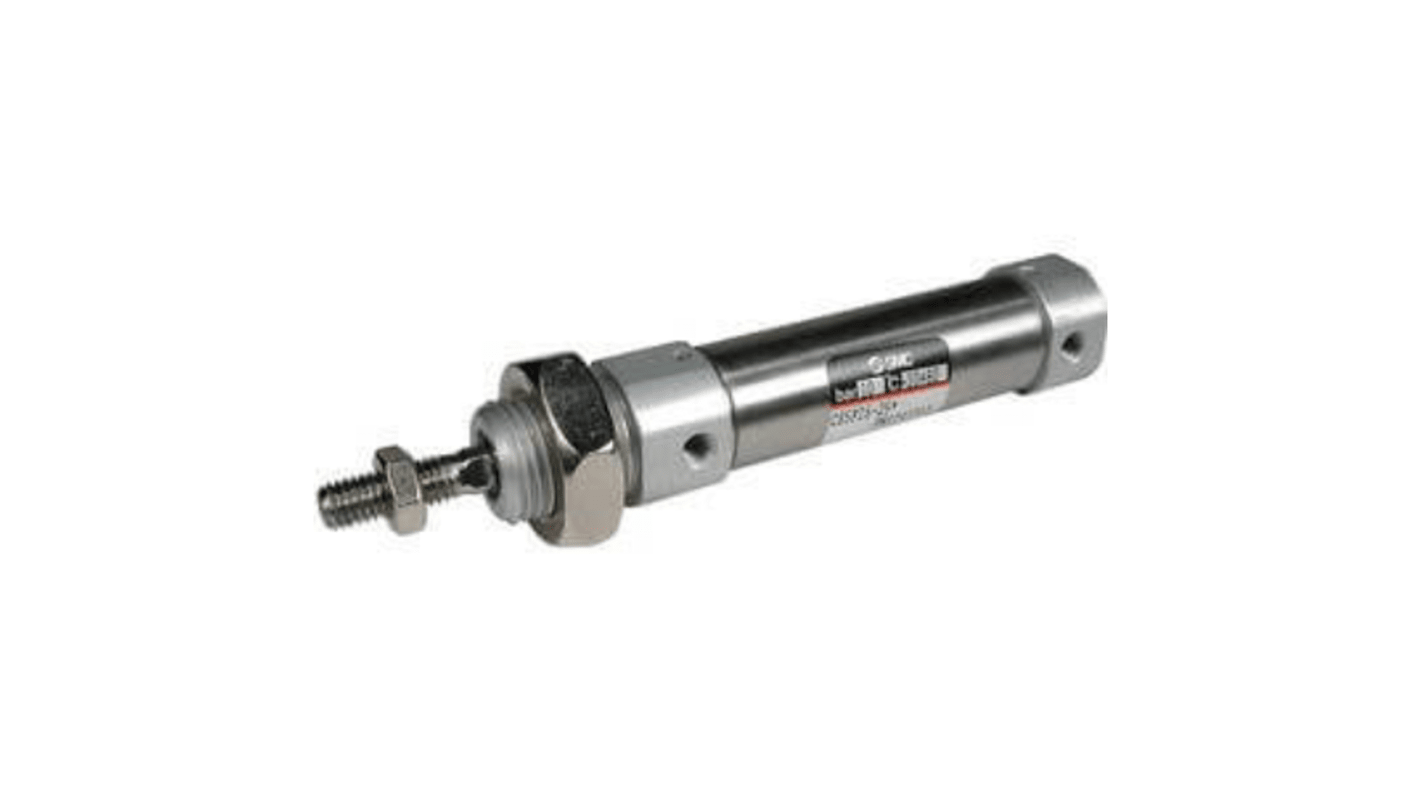

SMC ISO Standard Cylinder - 25mm Bore, 20 mm CD85 Series, Double Acting Acting
- RS Stock No.:
- 254-6026
- Mfr. Part No.:
- CD85N25-20-B
- Brand:
- SMC
Subtotal (1 unit)*
£56.69
(exc. VAT)
£68.03
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.69 |
*price indicative
- RS Stock No.:
- 254-6026
- Mfr. Part No.:
- CD85N25-20-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | ISO Standard Cylinder | |
| Series | CD85 | |
| Action Type | Double Acting | |
| Bore Diameter | 25mm | |
| Mount Type | Clevis | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Stainless Steel | |
| Stroke Length | 20mm | |
| Maximum Operating Pressure | 1 MPa | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | M10 x 1.25 | |
| Maximum Piston Speed | 1500mm/s | |
| Piston Rod Thread Standard | Metric | |
| Rod Type | Single | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Weight | 301g | |
| Standards/Approvals | ISO/21287 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type ISO Standard Cylinder | ||
Series CD85 | ||
Action Type Double Acting | ||
Bore Diameter 25mm | ||
Mount Type Clevis | ||
Cushioning Type Rubber Bumper | ||
Body Material Stainless Steel | ||
Stroke Length 20mm | ||
Maximum Operating Pressure 1 MPa | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size M10 x 1.25 | ||
Maximum Piston Speed 1500mm/s | ||
Piston Rod Thread Standard Metric | ||
Rod Type Single | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Weight 301g | ||
Standards/Approvals ISO/21287 | ||
- COO (Country of Origin):
- CN
SMC CD85 Series ISO Standard Cylinder, 25mm Bore size, 20mm Stroke Length - CD85N25-20-B
This ISO standard cylinder provides a Compact pneumatic linear actuator for controlled push–pull motion in automated systems. It is designed for double-acting operation with a stainless steel body and single rod output, suitable for environments requiring corrosion-resistant construction and precise short-stroke actuation.
Features & Benefits
• 25mm bore delivers consistent force for Compact actuation
• Double-acting design enables controlled extension and retraction
• Rubber bumper cushioning reduces impact and noise
• Rated to 1.0 MPa for robust pneumatic performance
• Piston speed capability up to 1500 mm/s supports high-cycle tasks
• Clevis mount simplifies alignment and pivoting installations
• Double-acting design enables controlled extension and retraction
• Rubber bumper cushioning reduces impact and noise
• Rated to 1.0 MPa for robust pneumatic performance
• Piston speed capability up to 1500 mm/s supports high-cycle tasks
• Clevis mount simplifies alignment and pivoting installations
**Applications**
• Suitable for pick-and-place mechanisms in assembly lines
• Ideal for valve actuation in fluid control panels
• Used for end-of-arm tooling in robotic cells
• Can be used for panel or door actuation in equipment enclosures
• Suitable for short-stroke transfer operations in packaging machines
• Ideal for valve actuation in fluid control panels
• Used for end-of-arm tooling in robotic cells
• Can be used for panel or door actuation in equipment enclosures
• Suitable for short-stroke transfer operations in packaging machines
What thread does the piston rod use for end fittings?
The rod is male with an M10 x 1.25 metric thread for direct attachment of clevises or custom fittings.
What temperature range can it operate within?
It functions between -10 °C and +80 °C to suit typical industrial ambient conditions.
How much stroke is available for this configuration?
The unit is supplied with a 20mm stroke for short travel requirements.
What standard does the cylinder adhere to?
It conforms to ISO 21287 dimensional and mounting specifications for interchangeability.
What is the approximate mass for handling and mounting calculations?
The cylinder weighs 0.301 kg for use in payload and support assessments.
