RS PRO Pneumatic Compact Cylinder - 25mm Bore, 10mm Stroke, SQN Series, Double Acting
- RS Stock No.:
- 235-1275
- Brand:
- RS PRO
Subtotal (1 unit)*
£26.47
(exc. VAT)
£31.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £26.47 |
*price indicative
- RS Stock No.:
- 235-1275
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Manufacturer Series | SQN | |
Action | Double | |
Stroke | 10mm | |
Bore | 25mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Manufacturer Series SQN | ||
Action Double | ||
Stroke 10mm | ||
Bore 25mm | ||
- COO (Country of Origin):
- CN

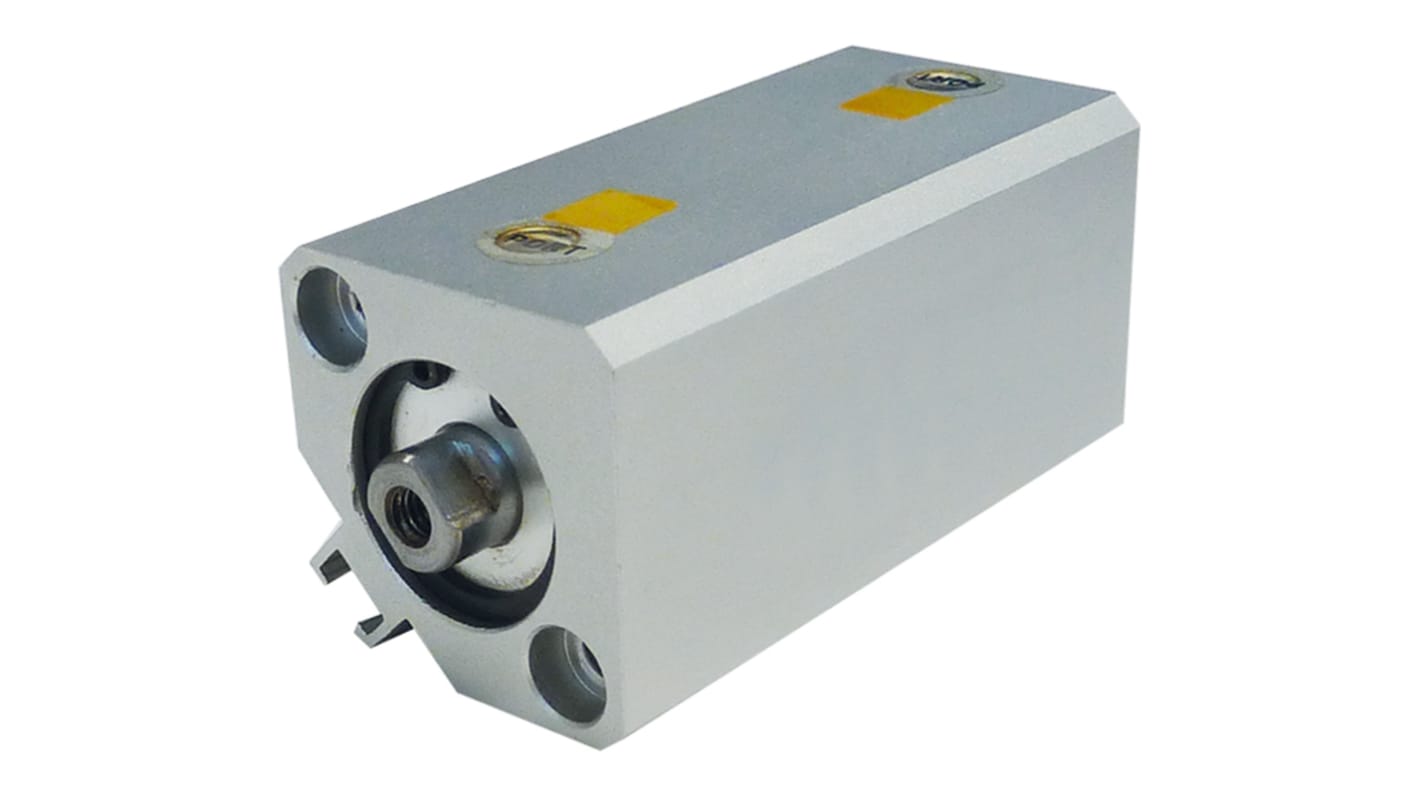

RS PRO Pneumatic Compact Cylinder 25mm Bore, 10mm Stroke, SQN Series, Double Acting
These RS PRO compact diamond profile cylinder is a high-performance pneumatic piston rod cylinder that uses air pressure to generate a steady pumping motion. This cylinder is double-acting, with the air pressure applying to each end alternately to give it a longer stroke length than most single-acting cylinders. The RS PRO compact cylinder has anti-bump cushioning for better shock and vibration absorption and through hole mounting making them easier to install.
Features and Benefits
- Rear cover and body are riveted together for reliability
- Japanese anti-dust seal, providing better sealing performance, and dust protection
- German grease provides a longer cylinder life
- Strong self-lubricating bronze barings for high lateral loading performance
Piston rod and rod connection is rotary riveted for high concentricity
Applications
The compact size makes these RS PRO pneumatic cylinders ideal for applications and environments which might have tight spaces. Pneumatic cylinders are used in various industrial environments.
Factory automation
Transportation and packaging machinery
Small-bore and medium-duty applications.
Factory automation
Transportation and packaging machinery
Small-bore and medium-duty applications.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
