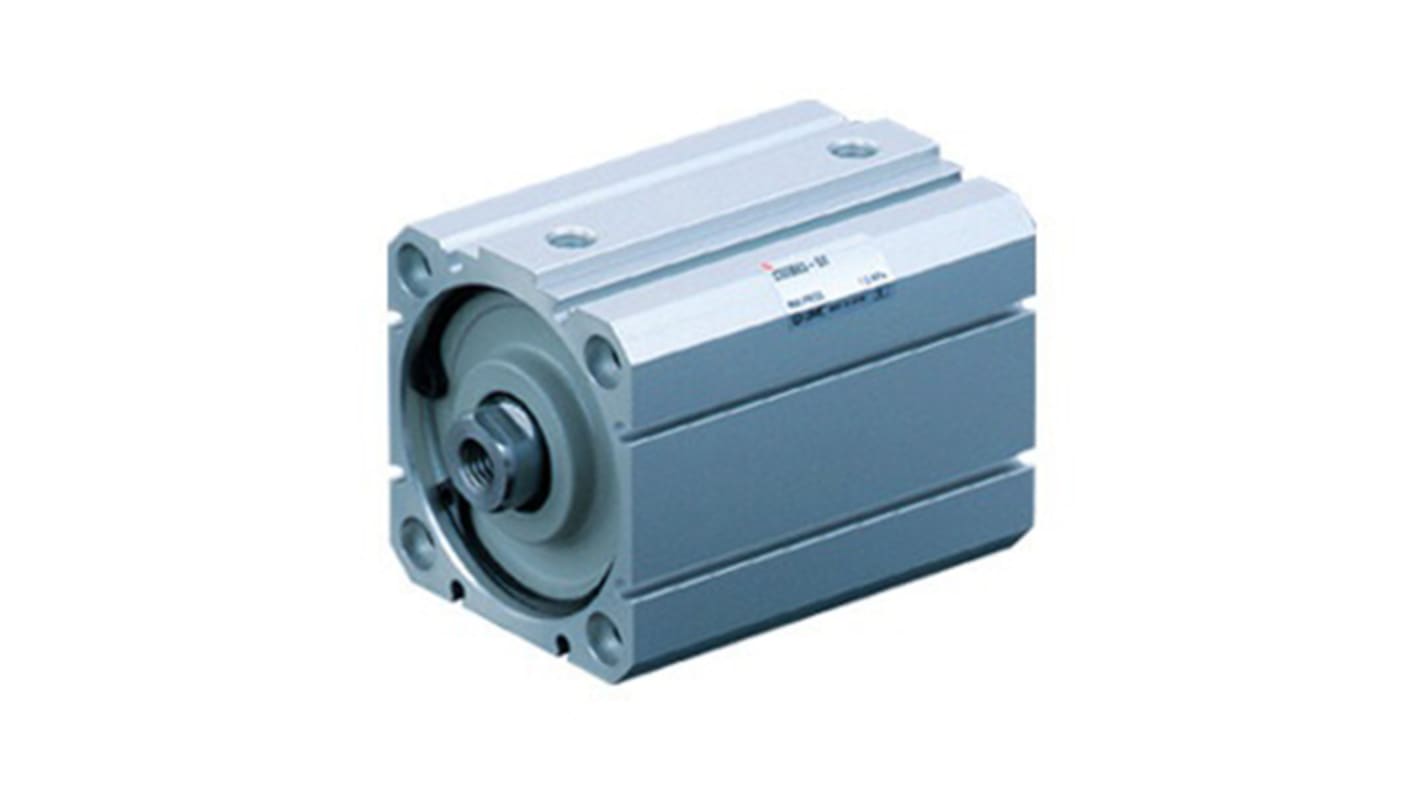

SMC Pneumatic Compact Cylinder - 50mm Bore, 25mm Stroke, C55 Series, Double Acting
- RS Stock No.:
- 234-4279
- Mfr. Part No.:
- C55B50-25
- Brand:
- SMC
Subtotal (1 unit)*
£83.80
(exc. VAT)
£100.56
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 9 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £83.80 |
*price indicative
- RS Stock No.:
- 234-4279
- Mfr. Part No.:
- C55B50-25
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | C55 | |
Bore | 50mm | |
Action | Double | |
Stroke | 25mm | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series C55 | ||
Bore 50mm | ||
Action Double | ||
Stroke 25mm | ||
The SMC C55 series is a compact cylinder integrated with a guide rod and plate. The series is available in 20, 25, 32, 40, 50, 63, 80, 100, 150mm bore sizes with the same mounting dimensions as the CQ2.
Large stroke range from 5 mm up to 150 mm
Construction is similar to the current CQ2 lateral load resistant specification
Snap ring construction allows easy and quicker maintenance
Auto switches can be mounted on any of the four sides of the cylinder tube
Construction is similar to the current CQ2 lateral load resistant specification
Snap ring construction allows easy and quicker maintenance
Auto switches can be mounted on any of the four sides of the cylinder tube
