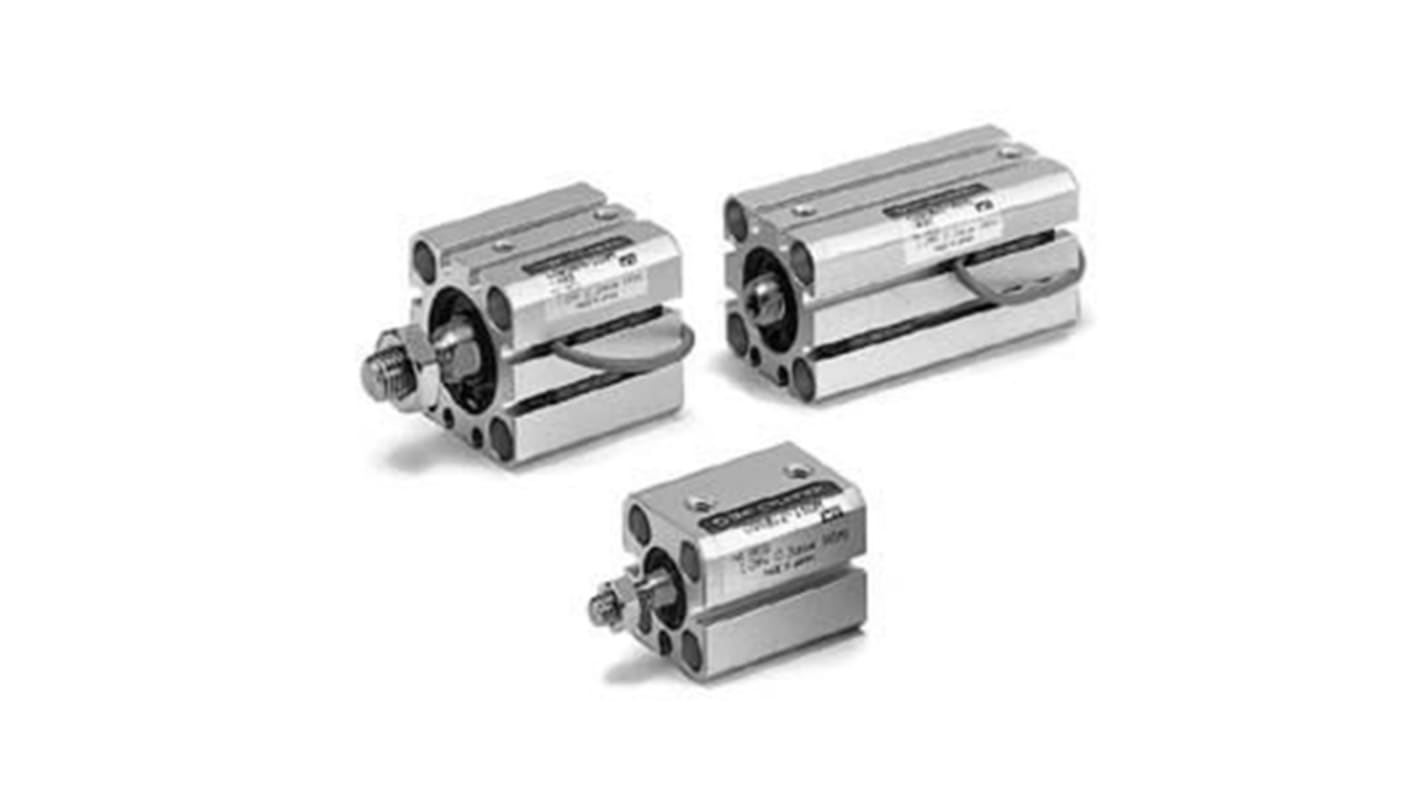

SMC Pneumatic Cylinder - 20mm Bore, 15mm Stroke, CQS Series, Double Acting
- RS Stock No.:
- 232-8835
- Mfr. Part No.:
- CDQSB20-15DM
- Brand:
- SMC
Available to back order for despatch 30/04/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£35.92
(exc. VAT)
£43.10
(inc. VAT)
| Units | Per unit |
| 1 + | £35.92 |
- RS Stock No.:
- 232-8835
- Mfr. Part No.:
- CDQSB20-15DM
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke.
Ambient and fluid temperature ranges from -10 to 60°C (with auto switch)
Reduction in labour for design
Reduction of installation space
Reduction in labour for design
Reduction of installation space
Specifications
Attribute | Value |
|---|---|
| Stroke | 15mm |
| Bore | 20mm |
| Action | Double |
| Manufacturer Series | CQS |
