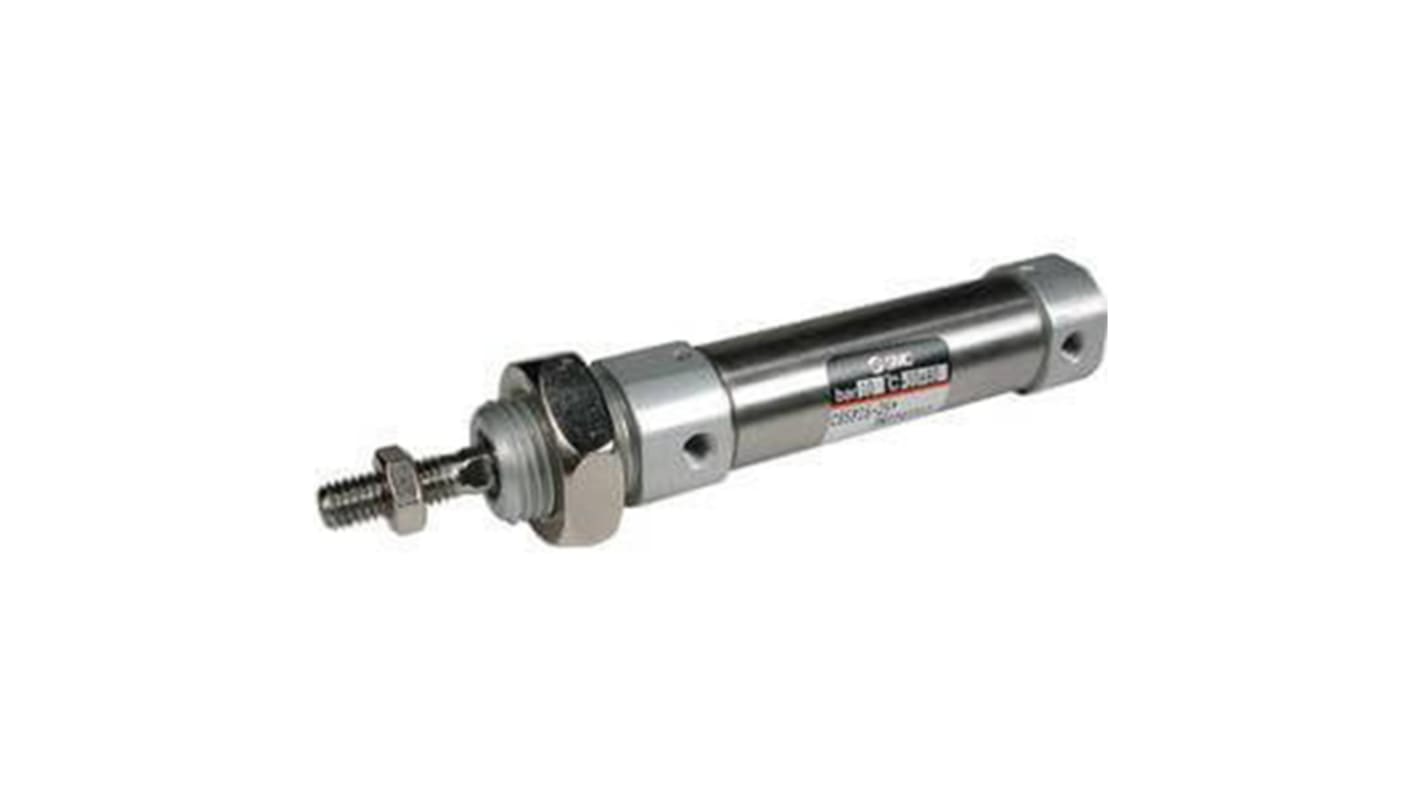

SMC Pneumatic Cylinder - 20mm Bore, 15mm Stroke, C85 Series, Double Acting
- RS Stock No.:
- 232-8746
- Mfr. Part No.:
- CD85N20-15-B
- Brand:
- SMC
Available to back order for despatch 11/06/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£46.10
(exc. VAT)
£55.32
(inc. VAT)
| Units | Per unit |
| 1 + | £46.10 |
- RS Stock No.:
- 232-8746
- Mfr. Part No.:
- CD85N20-15-B
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life.
High quality bronze bush in clevis bearing extends the life of cylinder
Double swaging of the end covers of the barrel provides an absolutely air tight union
Easy accurate mounting
Minimized side clearance
Double swaging of the end covers of the barrel provides an absolutely air tight union
Easy accurate mounting
Minimized side clearance
Specifications
Attribute | Value |
|---|---|
| Stroke | 15mm |
| Bore | 20mm |
| Action | Double |
| Manufacturer Series | C85 |
