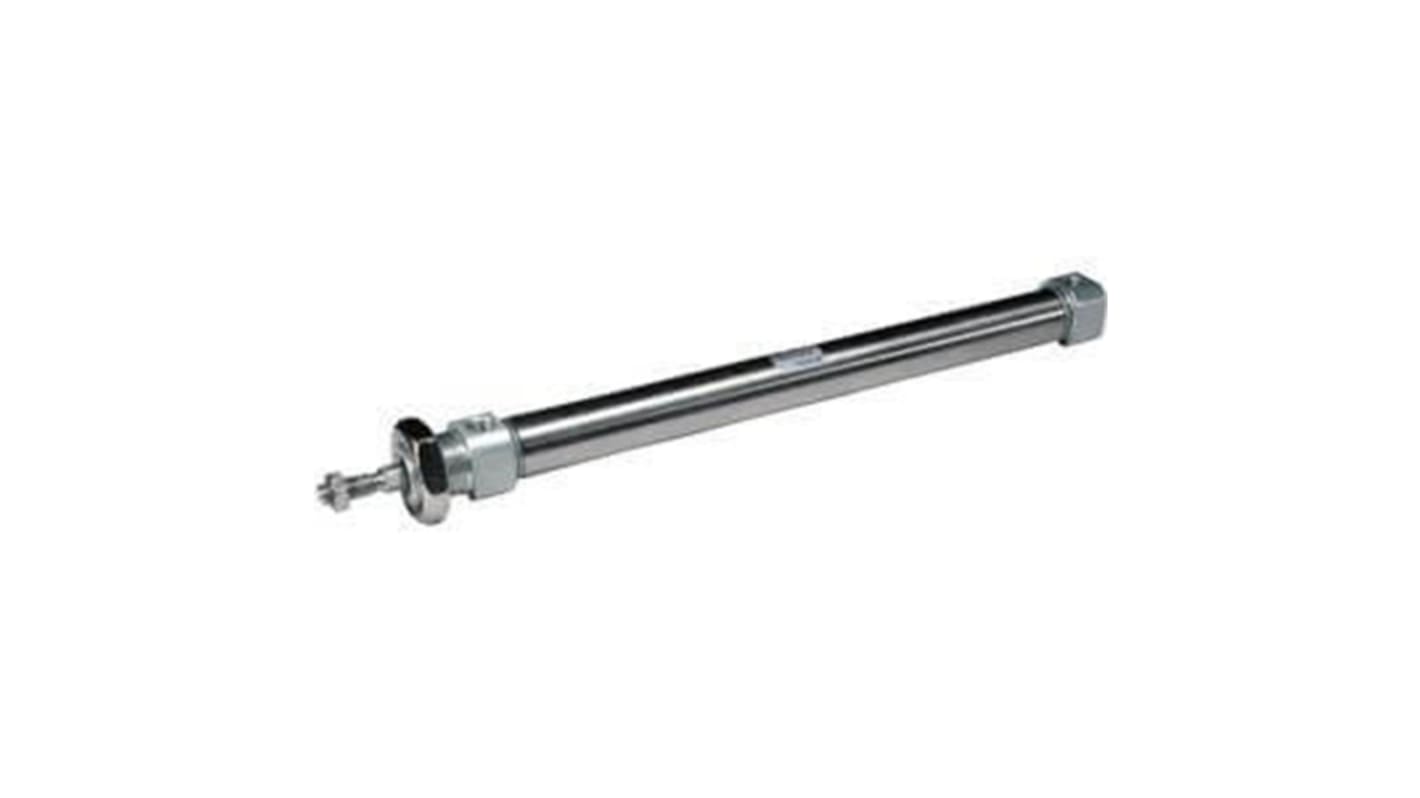

SMC Pneumatic Cylinder - 10mm Bore, 40mm Stroke, CD85 Series, Double Acting
- RS Stock No.:
- 232-8723
- Mfr. Part No.:
- CD85KN10-40-B
- Brand:
- SMC
Available to back order for despatch 30/07/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£47.19
(exc. VAT)
£56.63
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £47.19 |
- RS Stock No.:
- 232-8723
- Mfr. Part No.:
- CD85KN10-40-B
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 10mm through 40mm stroke. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life
Auto switch capable
Easy accurate mounting
Minimized side clearance
Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)
Easy accurate mounting
Minimized side clearance
Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)
Specifications
Attribute | Value |
|---|---|
| Stroke | 40mm |
| Bore | 10mm |
| Action | Double |
| Manufacturer Series | CD85 |
