SMC Pneumatic Compact Cylinder - 40mm Bore, 30mm Stroke, RSQ Series, Double Acting
- RS Stock No.:
- 227-4405
- Mfr. Part No.:
- RSDQB40-30D
- Brand:
- SMC

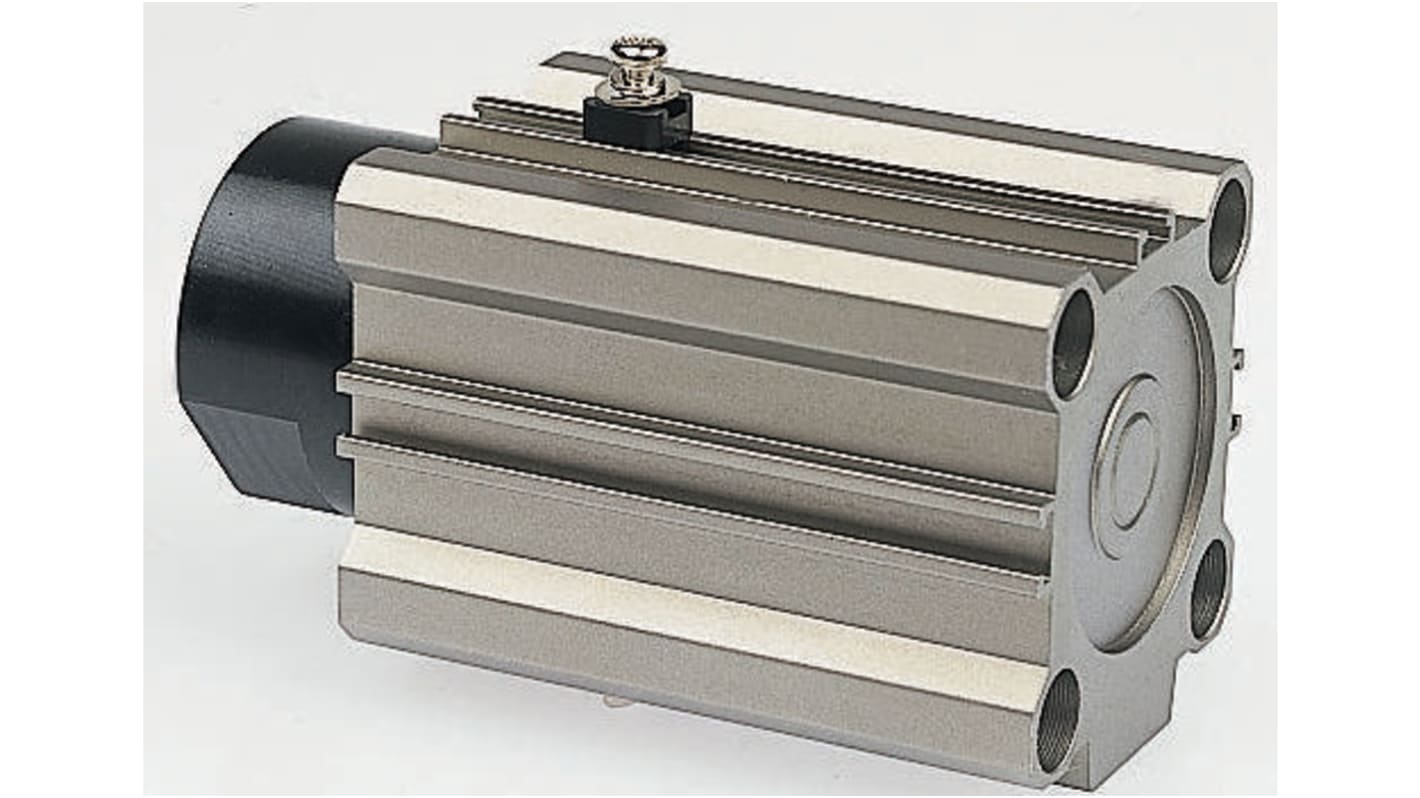

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£91.99
(exc. VAT)
£110.39
(inc. VAT)
- RS Stock No.:
- 227-4405
- Mfr. Part No.:
- RSDQB40-30D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Stroke | 30mm | |
| Bore | 40mm | |
| Action | Double | |
| Manufacturer Series | RSQ | |
| Length | 140.5mm | |
| Cushioning Type | Rubber | |
| Dimensions | 140.5 x 52 x 66mm | |
| Width | 52mm | |
| Absolute Maximum Pressure | 1.5MPa | |
| Maximum Operating Pressure | 1 MPa | |
| Height | 66mm | |
| Weight | 860g | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Stroke 30mm | ||
Bore 40mm | ||
Action Double | ||
Manufacturer Series RSQ | ||
Length 140.5mm | ||
Cushioning Type Rubber | ||
Dimensions 140.5 x 52 x 66mm | ||
Width 52mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Height 66mm | ||
Weight 860g | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Compact Cylinders
The RSQ series is a fixed-height stopper cylinder with high endurance and low breakaway characteristics.
Large rod and cylinder bearings give very high side impact resistance
Magnetic piston
Rubber seals
Proof pressure 15 bar
Maximum operating pressure 9.9 bar
Temperature range -10°C to +60°C
Lubrication not required
Supplied with mounting bolts and switch mounting brackets
Ideal for conveyor applications
Magnetic piston
Rubber seals
Proof pressure 15 bar
Maximum operating pressure 9.9 bar
Temperature range -10°C to +60°C
Lubrication not required
Supplied with mounting bolts and switch mounting brackets
Ideal for conveyor applications
RSQ Stopper 20-40mm Diameter
.
