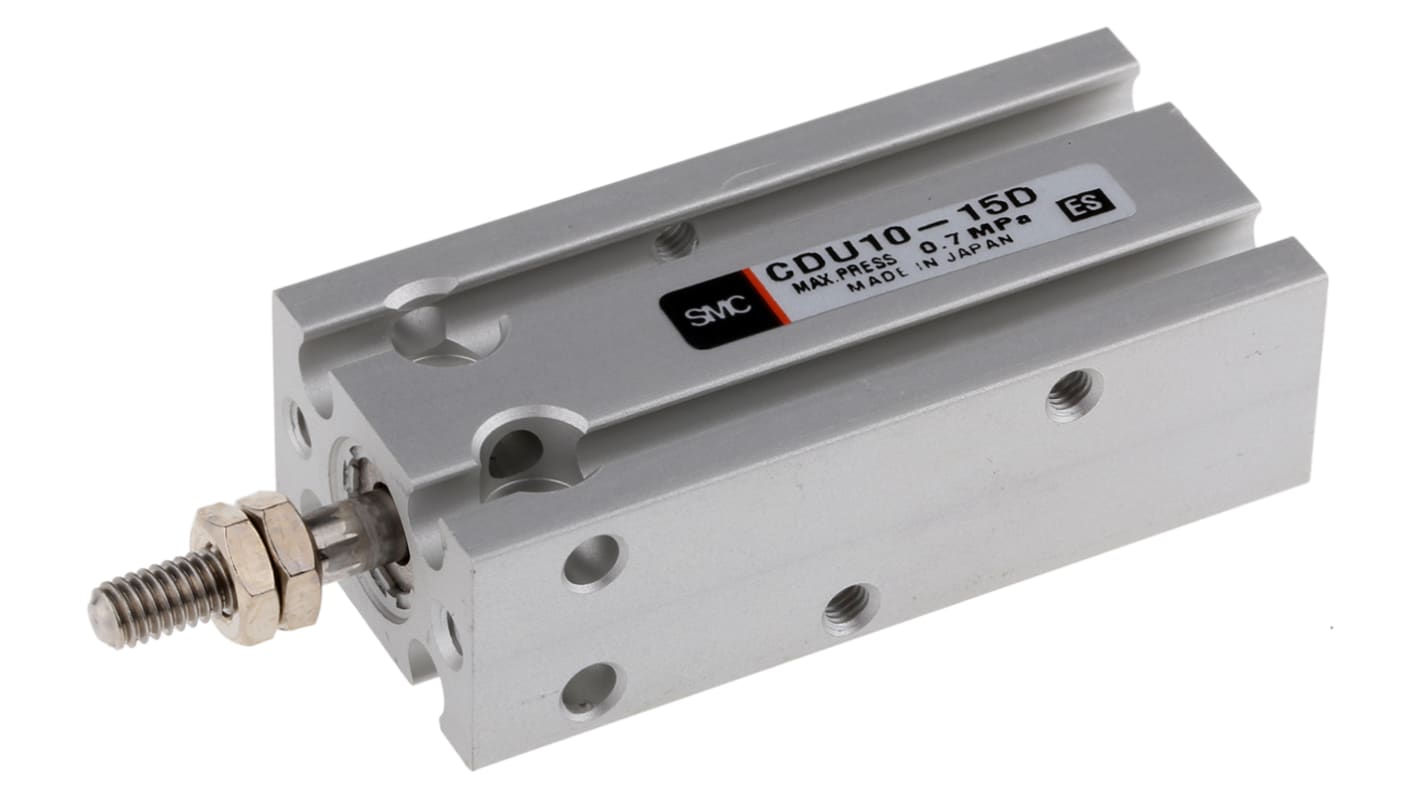

SMC Pneumatic Piston Rod Cylinder - 10mm Bore, 15mm Stroke, CU Series, Double Acting

View this category
Save 5% when you buy 5 units

Subtotal (1 unit)*

£57.12

(exc. VAT)

£68.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£57.12
5 +£53.75

*price indicative

RS Stock No.:
183-4523
Mfr. Part No.:
CDU10-15D
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Manufacturer Series

CU

Stroke

15mm

Bore

10mm

Action

Double

Port Connection

M5 x 0.8

Cushioning Type

Rubber

Dimensions

67 x 15 x 24mm

Width

15mm

Height

24mm

Length

67mm

Absolute Maximum Pressure

1.05MPa

Maximum Operating Pressure

0.7 MPa

Weight

44g

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-10°C

Non Compliant

COO (Country of Origin):
CN

CU Series Cylinders


The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard.

Maximum operating pressure 7 bar, 10.5 bar proof pressure
Ambient and fluid temperature 5°C to 60°C
Lubrication not required
Rubber cushion to both sides
Stroke allowance +1.0mm
Port size M5, except 32Ø which is Rc(PT) 1//8 in.


CDU 10 - 32mm Diameter


A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
