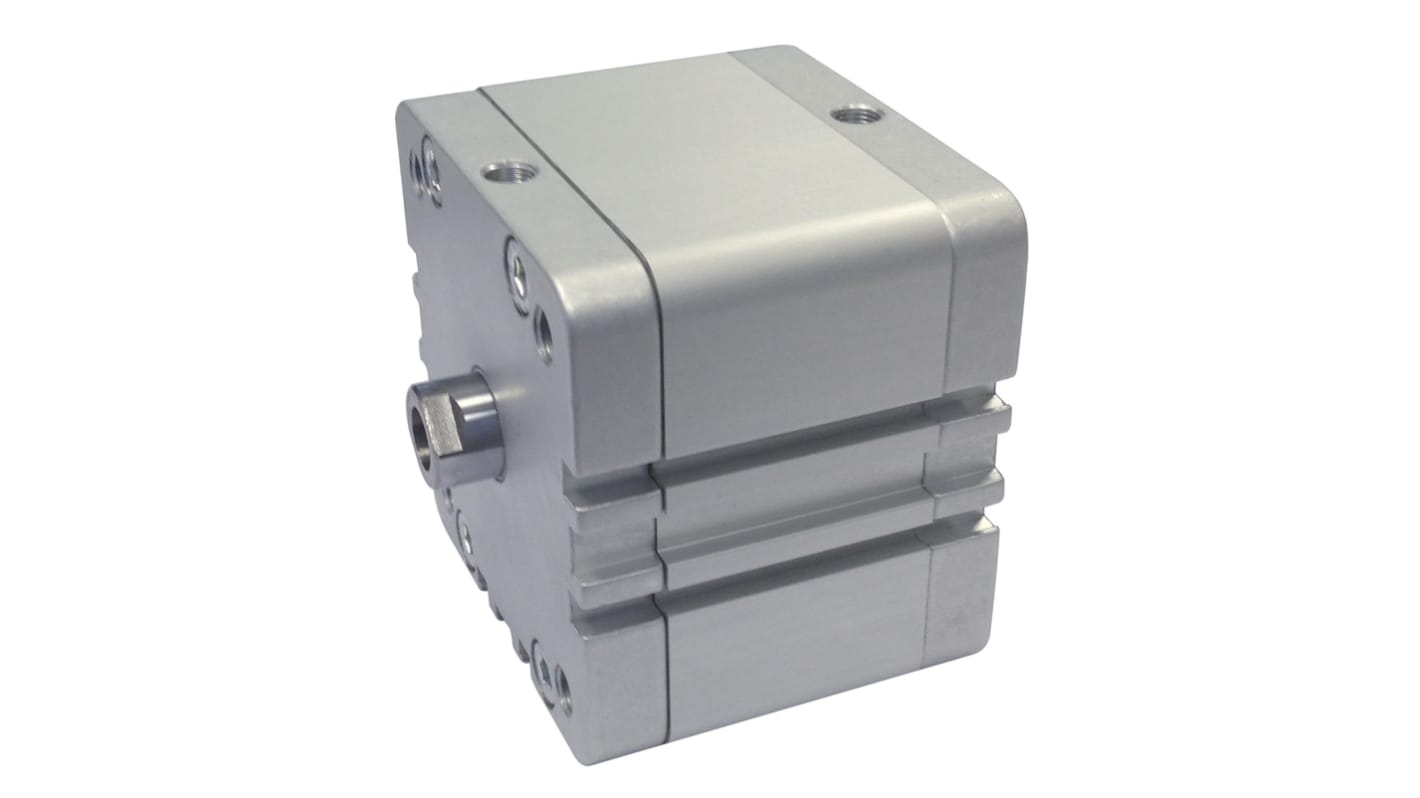

RS PRO Pneumatic Compact Cylinder - 80mm Bore, 25mm Stroke, Double Acting

Subtotal (1 unit)*

£151.81

(exc. VAT)

£182.17

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 3 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£151.81

*price indicative

RS Stock No.:
176-1680
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Stroke

25mm

Action

Double

Bore

80mm

Port Connection

G 1/8, M12

Cushioning Type

Not Cushioned

Dimensions

89 x 98 x 98mm

Width

98mm

Length

89mm

Height

98mm

Maximum Operating Pressure

10 bar

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

0°C

COO (Country of Origin):
IT
RS Pro double-acting compact cylinders according to ISO 21287 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
