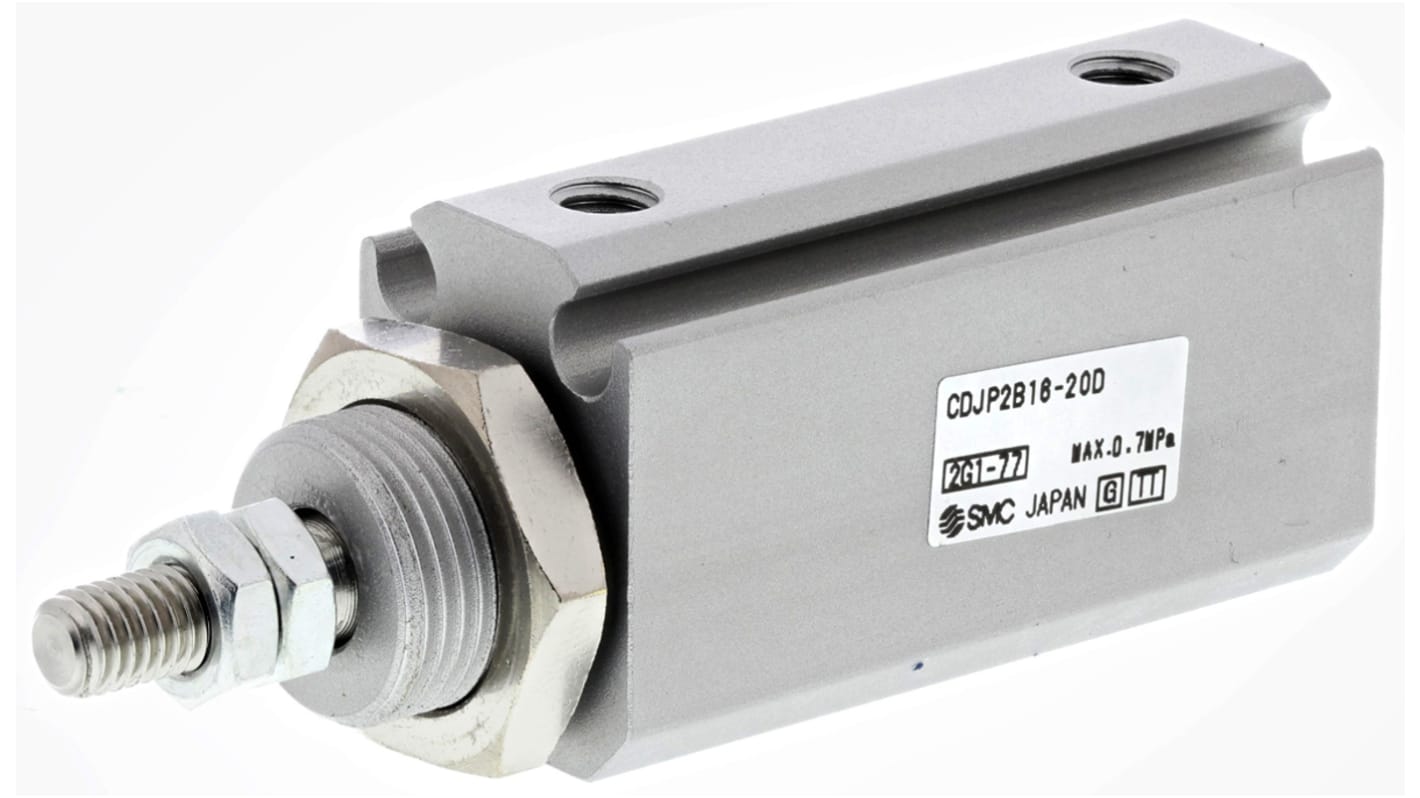

SMC Pneumatic Piston Rod Cylinder - 16mm Bore, 20mm Stroke, CJP2 Series, Double Acting
- RS Stock No.:
- 547-613
- Mfr. Part No.:
- CDJP2B16-20D
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£40.29
(exc. VAT)
£48.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £40.29 |
5 - 9 | £37.92 |
10 + | £36.36 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£39.44
(exc. VAT)
£47.33
(inc. VAT)
- RS Stock No.:
- 547-613
- Mfr. Part No.:
- CDJP2B16-20D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CJP2 | |
Action | Double | |
Bore | 16mm | |
Stroke | 20mm | |
Port Connection | M5 x 0.8 | |
Cushioning Type | Rubber | |
Dimensions | 63.5 x 20 x 24.5mm | |
Width | 20mm | |
Length | 63.5mm | |
Height | 24.5mm | |
Maximum Operating Pressure | 0.7 MPa | |
Piston Speed | 50 → 500mm/s | |
Maximum Operating Temperature | +70°C | |
Weight | 54g | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CJP2 | ||
Action Double | ||
Bore 16mm | ||
Stroke 20mm | ||
Port Connection M5 x 0.8 | ||
Cushioning Type Rubber | ||
Dimensions 63.5 x 20 x 24.5mm | ||
Width 20mm | ||
Length 63.5mm | ||
Height 24.5mm | ||
Maximum Operating Pressure 0.7 MPa | ||
Piston Speed 50 → 500mm/s | ||
Maximum Operating Temperature +70°C | ||
Weight 54g | ||
Minimum Operating Temperature -10°C | ||
Non Compliant
- COO (Country of Origin):
- CN
Cylinders
Bore sizes 6, 10, 16mm
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
