EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010762, 50mm Bore, 15mm Stroke, KHZ Series, Double Acting
- RS Stock No.:
- 274-921
- Mfr. Part No.:
- 0822010762
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£181.24
(exc. VAT)
£217.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £181.24 |
*price indicative
- RS Stock No.:
- 274-921
- Mfr. Part No.:
- 0822010762
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822010762 | |
Action | Double | |
Stroke | 15mm | |
Bore | 50mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 0.086 @ 10 mm kg/mm | |
Minimum Operating Temperature | -25°C | |
Test Weight | 0.388 kg | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822010762 | ||
Action Double | ||
Stroke 15mm | ||
Bore 50mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 0.086 @ 10 mm kg/mm | ||
Minimum Operating Temperature -25°C | ||
Test Weight 0.388 kg | ||
- COO (Country of Origin):
- HU

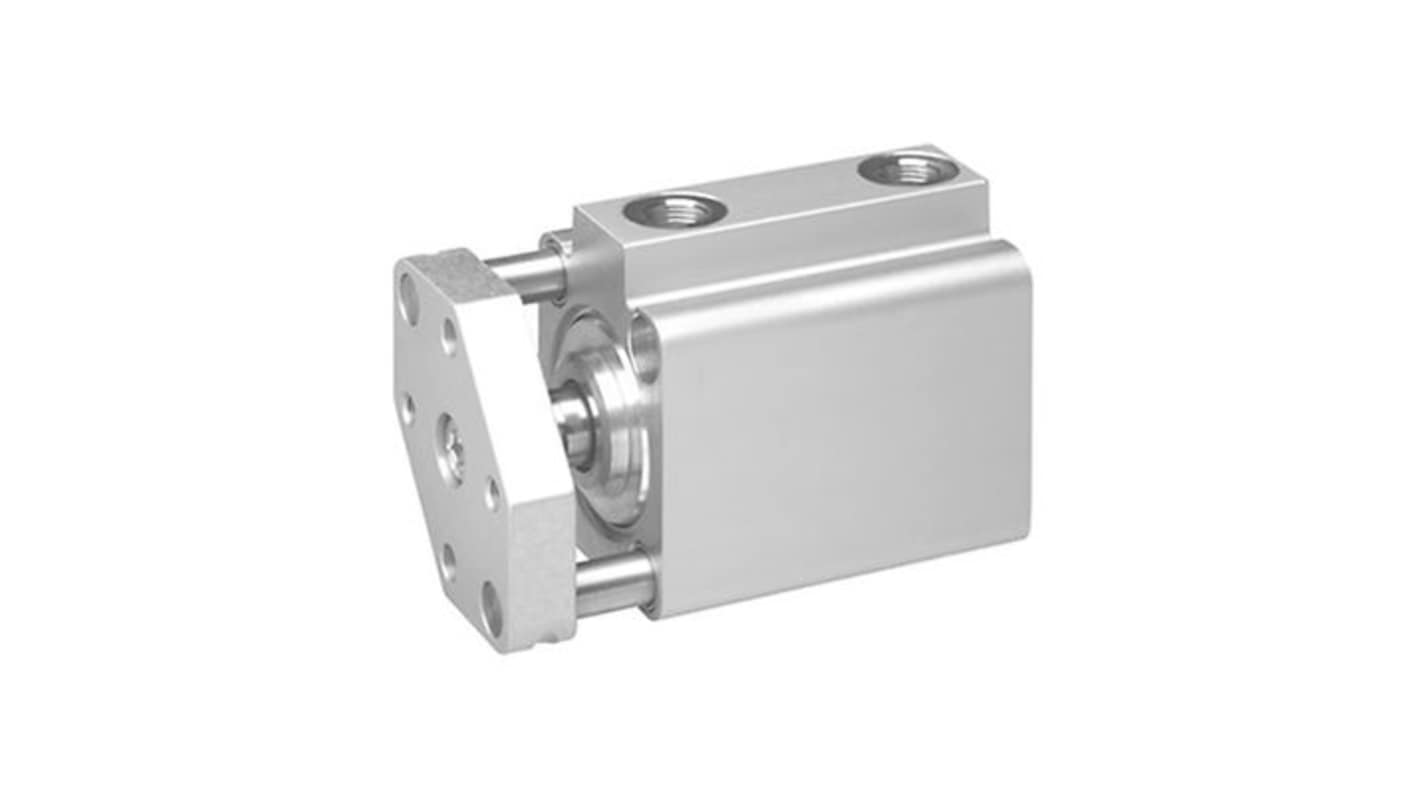

The Aventics short-stroke cylinder from the Series KHZ is expertly designed for applications that require compact solutions in tight installation spaces. It offers double-acting functionality, ensuring reliable performance and efficient operation in various industrial environments. The non-standard dimensions accommodate seamless integration into machinery, while the elastic cushioning feature enhances user experience by providing shock absorption. Its construction from durable materials like stainless steel and aluminium underscores its robustness, promoting longevity and reliable performance under pressure. This cylinders operational capabilities are effectively matched with stringent environmental requirements, making it ideal for a range of industrial applications. Its precision engineering guarantees that you won't compromise on performance or quality.
Designed specifically for applications with limited space constraints
Double-acting functional principle for versatile use
Robust construction ensures resilience and longevity
Elastic cushioning mitigates shock impacts during operation
High operational pressures enhance efficiency in demanding tasks
Easy integration into existing machinery provides user convenience
Resistant to a wide range of ambient temperatures
Complies with industry standards, ensuring reliability
Utilises approved oils to maintain optimal performance
Minimal maintenance requirements support long-term reliability
Double-acting functional principle for versatile use
Robust construction ensures resilience and longevity
Elastic cushioning mitigates shock impacts during operation
High operational pressures enhance efficiency in demanding tasks
Easy integration into existing machinery provides user convenience
Resistant to a wide range of ambient temperatures
Complies with industry standards, ensuring reliability
Utilises approved oils to maintain optimal performance
Minimal maintenance requirements support long-term reliability
