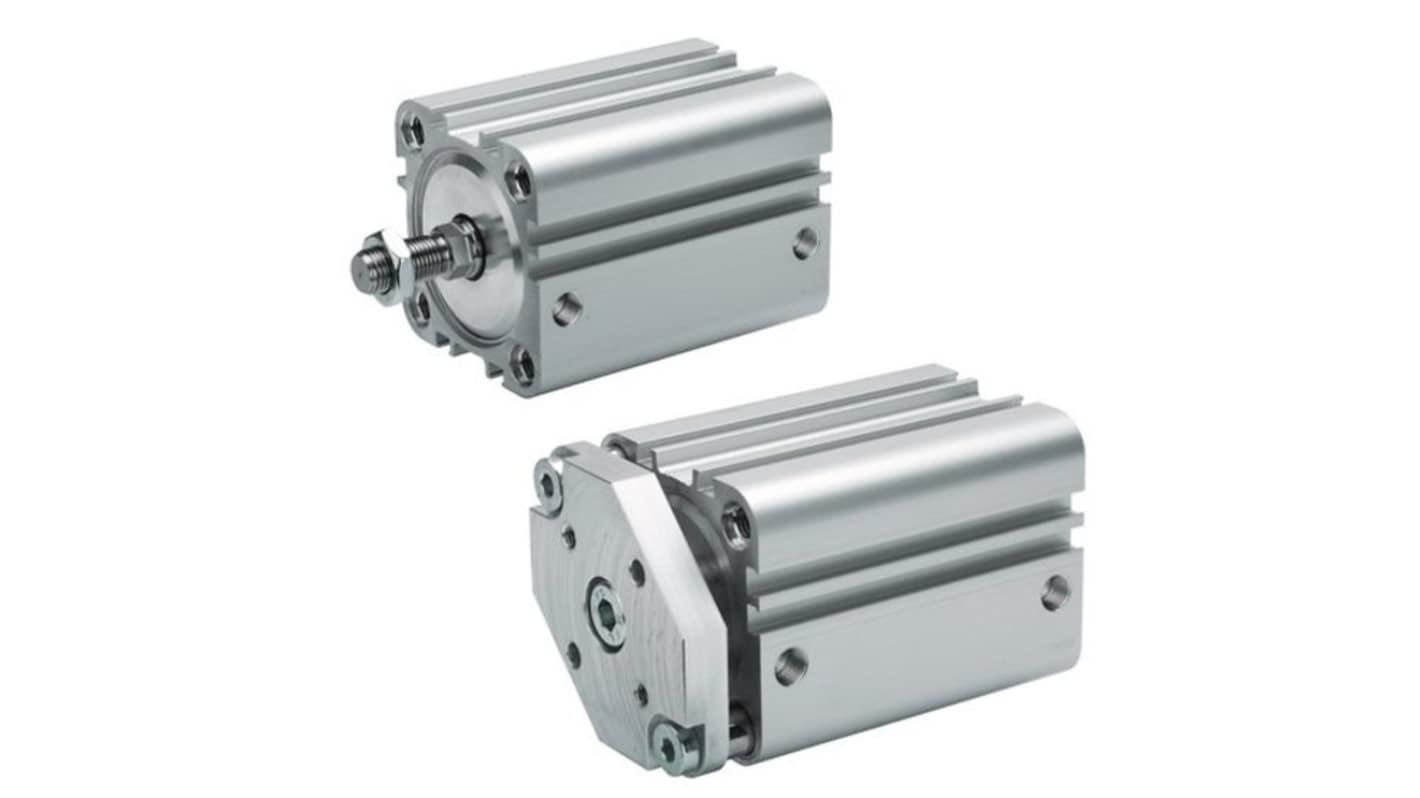

EMERSON – AVENTICS Pneumatic Compact Cylinder - 0822393608, 32mm Bore, 60mm Stroke, KPZ Series, Double Acting
- RS Stock No.:
- 274-459
- Mfr. Part No.:
- 0822393608
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£155.99
(exc. VAT)
£187.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £155.99 |
*price indicative
- RS Stock No.:
- 274-459
- Mfr. Part No.:
- 0822393608
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KPZ | |
Model Number p | 0822393608 | |
Stroke | 60mm | |
Action | Double | |
Bore | 32mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KPZ | ||
Model Number p 0822393608 | ||
Stroke 60mm | ||
Action Double | ||
Bore 32mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics Series KPZ compact cylinder offers an innovative solution for diverse industrial applications, combining reliability with exceptional performance. Engineered in accordance with the established NFE 49004 standard, this cylinder promises a high degree of versatility, making it suitable for various operational environments. With features such as double-acting functionality, elastic cushioning, and a robust construction using materials like stainless steel and aluminium, this product stands out in the market. Its environmental adaptability is evidenced by a wide operating temperature range and optional ATEX certification, ensuring it meets industry standards even under demanding conditions. The Series KPZ is not just about performance
its intuitive design allows for easy integration into existing systems, providing operational simplicity and enhanced efficiency for users.
Double-acting functionality enhances operational efficiency
Elastic cushioning ensures smooth operation and extended lifespan
Engineered with stainless steel and aluminium for superior durability
Wide operating temperature range supports various applications
Optional ATEX certification available for hazardous environments
Installation compatibility with an array of accessories simplifies setup
Designed to maximise performance while maintaining low operating pressure
Magnetic piston design allows for additional functional integration
Offers a variety of variants to cater to specific operational needs
Elastic cushioning ensures smooth operation and extended lifespan
Engineered with stainless steel and aluminium for superior durability
Wide operating temperature range supports various applications
Optional ATEX certification available for hazardous environments
Installation compatibility with an array of accessories simplifies setup
Designed to maximise performance while maintaining low operating pressure
Magnetic piston design allows for additional functional integration
Offers a variety of variants to cater to specific operational needs
