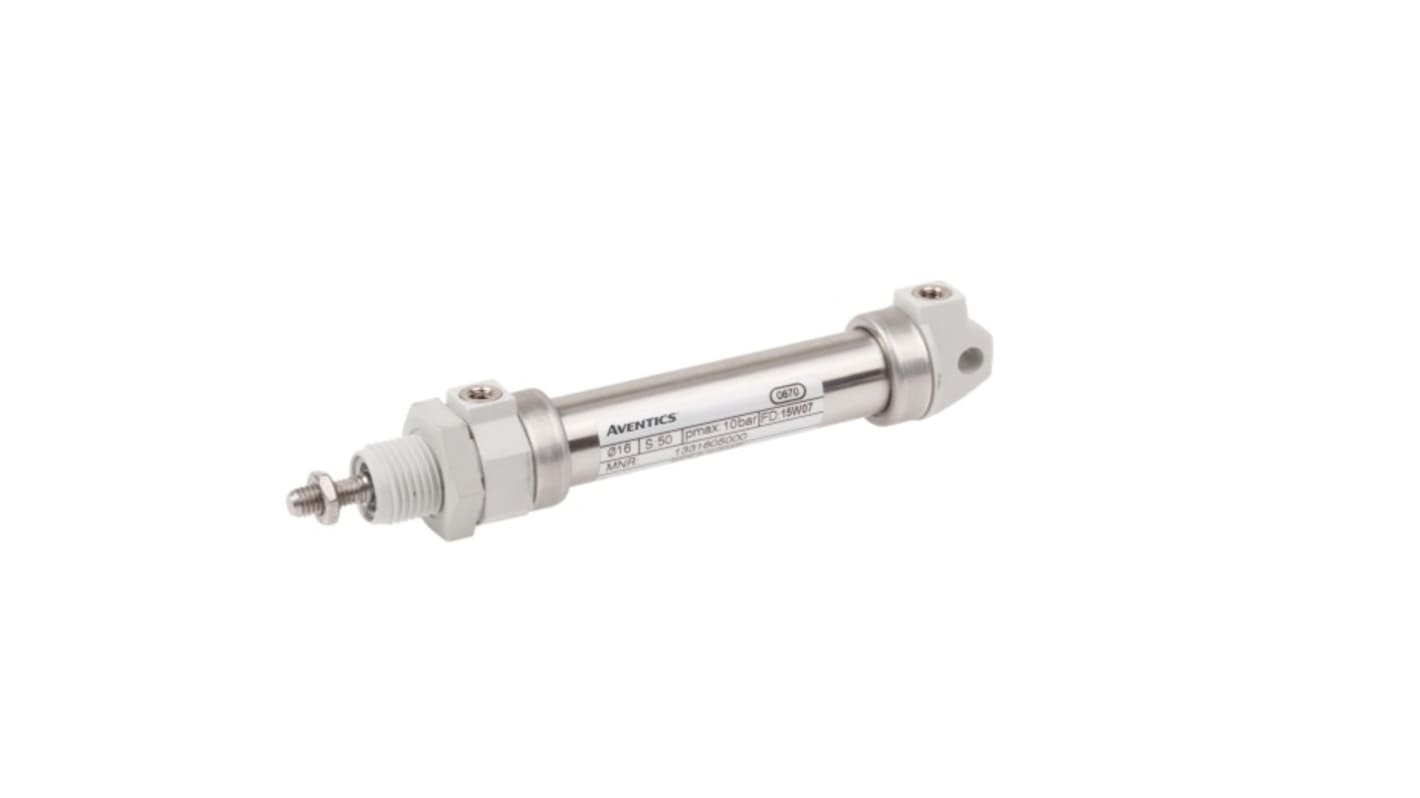

EMERSON – AVENTICS Roundline Cylinder - 1331601000, 16mm Bore, 12mm Stroke, ICM Series, Double Acting
- RS Stock No.:
- 274-410
- Mfr. Part No.:
- 1331601000
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£81.44
(exc. VAT)
£97.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £81.44 |
*price indicative
- RS Stock No.:
- 274-410
- Mfr. Part No.:
- 1331601000
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | ICM | |
Model Number p | 1331601000 | |
Stroke | 12mm | |
Action | Double | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series ICM | ||
Model Number p 1331601000 | ||
Stroke 12mm | ||
Action Double | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- HU
The Aventics Series ICM mini cylinder from aventics is designed to deliver exceptional performance in demanding environments, particularly suited for industrial applications where high corrosion resistance is essential. This cost-effective solution integrates advanced materials, featuring a stainless steel tube and piston rod, along with high-quality polymer covers, ensuring reliability and longevity even under the most challenging conditions. Conveniently designed for use in food processing, the Series ICM sets a new standard in mini cylinders, prioritising not just functionality but also safety and compliance with industry standards. This cylinder thrives where traditional alternatives fall short, making it the ideal choice for a variety of applications looking for durability and efficiency coupled with ease of maintenance.
Optimised for high corrosion resistance, ensuring longevity in harsh environments
Designed with a double-acting functional principle for versatile application
Utilises elastic cushioning for smooth operation and minimised impact
Features a magnetic piston that enhances reliability and performance
Constructed with components compliant to ISO 6432 standards for industry reliability
Lightweight design allows for easy installation and reduced strain on equipment
Meets environmental requirements for use in food processing applications
Includes a standard industry scraper to enhance operational efficiency
Designed with a double-acting functional principle for versatile application
Utilises elastic cushioning for smooth operation and minimised impact
Features a magnetic piston that enhances reliability and performance
Constructed with components compliant to ISO 6432 standards for industry reliability
Lightweight design allows for easy installation and reduced strain on equipment
Meets environmental requirements for use in food processing applications
Includes a standard industry scraper to enhance operational efficiency
