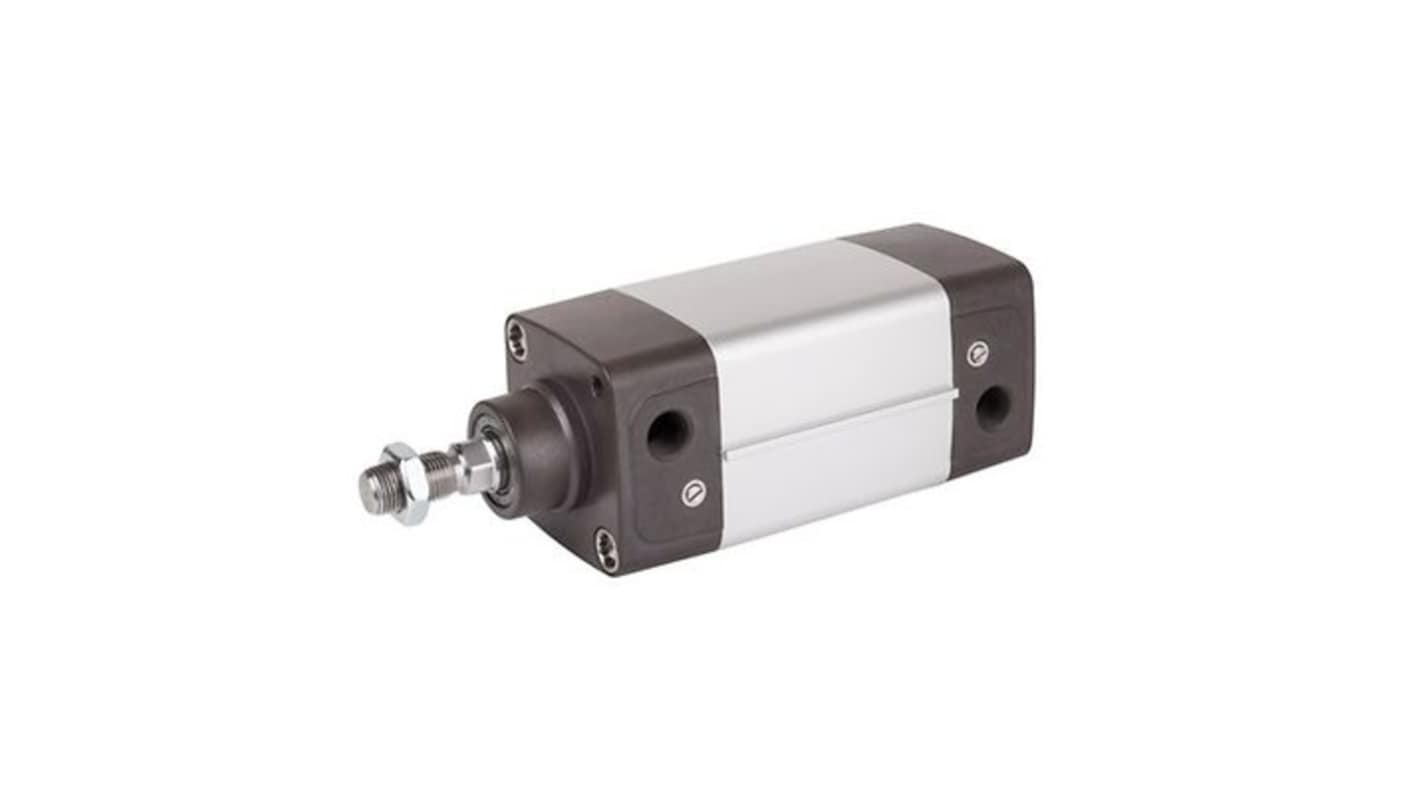

EMERSON – AVENTICS ISO Standard Cylinder - R480060083, 125mm Bore, 100mm Stroke, CCL-IS Series, Double Acting
- RS Stock No.:
- 274-382
- Mfr. Part No.:
- R480060083
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£736.51
(exc. VAT)
£883.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £736.51 |
*price indicative
- RS Stock No.:
- 274-382
- Mfr. Part No.:
- R480060083
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | CCL-IS | |
Model Number p | R480060083 | |
Stroke | 100mm | |
Bore | 125mm | |
Action | Double | |
Pneumatic Connection | G 1/2 | |
Port Connection | G 1/2 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCL-IS | ||
Model Number p R480060083 | ||
Stroke 100mm | ||
Bore 125mm | ||
Action Double | ||
Pneumatic Connection G 1/2 | ||
Port Connection G 1/2 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics CCL-IS series cylinder represents a pinnacle of hygienic design, purpose-built for the food sector. Engineered to complement existing systems while adhering to ISO 15552 standards, this cylinder is the ideal solution for applications requiring precision and cleanliness. With a unique capability to configure air connections, it allows for increased flexibility in tubing designs. Its robust construction ensures reliability, even in demanding industrial environments, making it a smart choice for businesses seeking optimal performance without compromising on safety or hygiene.
Designed for maximum flexibility with air connection configurations
Hygienic design suited for food processing applications
Constructed with exceptional materials for enhanced corrosion resistance
Double-acting functional principle providing efficient operation
Pneumatic adjustable cushioning for smooth functionality
Magnetic piston technology for improved precision
Operates effectively in a wide ambient temperature range
Low oil content requirements minimise maintenance needs
ATEX certification available for safety in explosive environments
Comprehensive options available via the Internet configurator
Hygienic design suited for food processing applications
Constructed with exceptional materials for enhanced corrosion resistance
Double-acting functional principle providing efficient operation
Pneumatic adjustable cushioning for smooth functionality
Magnetic piston technology for improved precision
Operates effectively in a wide ambient temperature range
Low oil content requirements minimise maintenance needs
ATEX certification available for safety in explosive environments
Comprehensive options available via the Internet configurator
