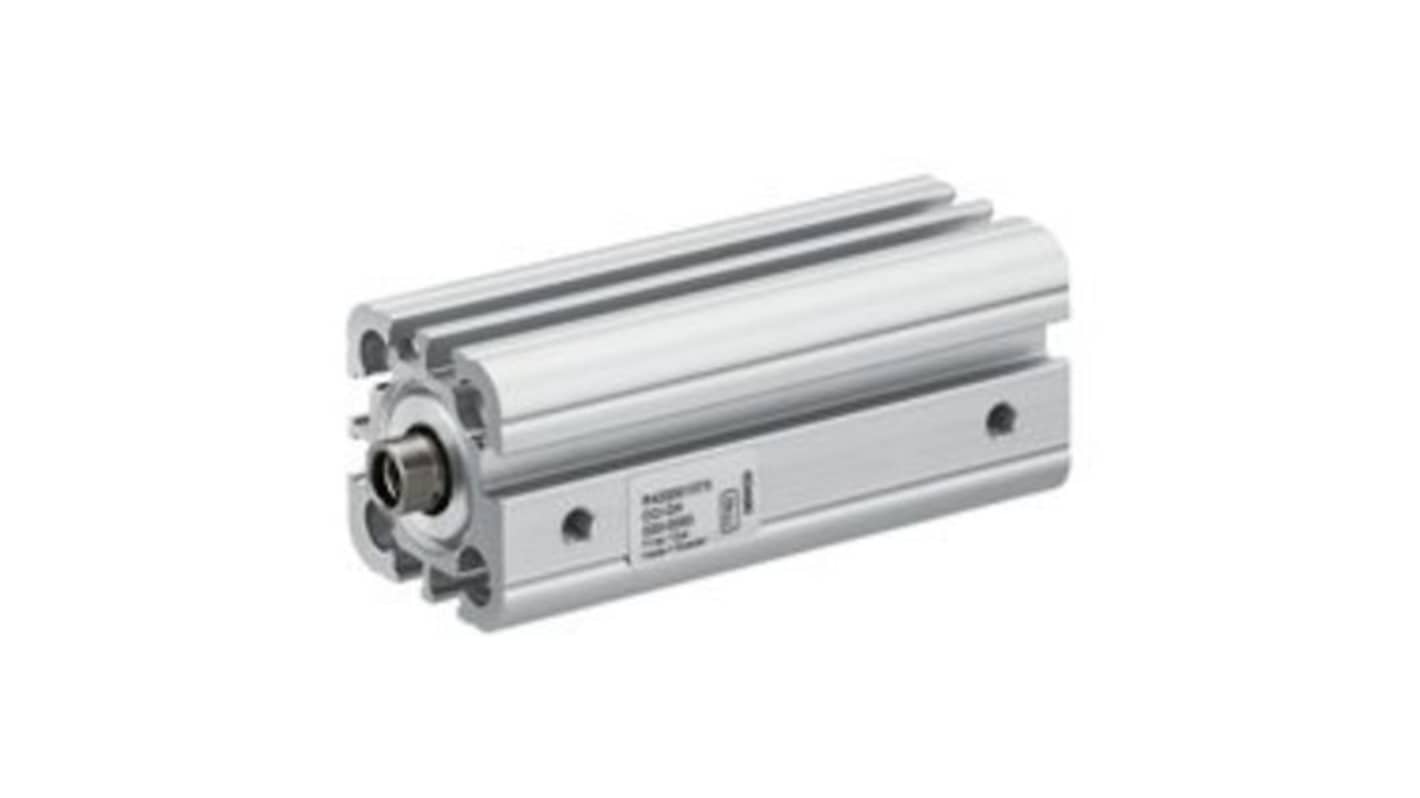

EMERSON – AVENTICS Pneumatic Compact Cylinder - R422001013, 20mm Bore, 10mm Stroke, CCI Series, Double Acting
- RS Stock No.:
- 274-238
- Mfr. Part No.:
- R422001013
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£55.32
(exc. VAT)
£66.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £55.32 |
*price indicative
- RS Stock No.:
- 274-238
- Mfr. Part No.:
- R422001013
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | CCI | |
Model Number p | R422001013 | |
Stroke | 10mm | |
Bore | 20mm | |
Action | Double | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCI | ||
Model Number p R422001013 | ||
Stroke 10mm | ||
Bore 20mm | ||
Action Double | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
The Aventics series CCI Compact Cylinder ISO 21287 embodies avant-garde engineering tailored for efficiency and versatility in industrial applications. Designed with a focus on compactness and ease of maintenance, this cylinder excels in situations demanding long strokes and rapid cycle times. With its double-acting functional principle and elastic cushioning, it delivers reliable performance while ensuring minimal impact force. The ability to easily install sensors along the entirety of the cylinder length enhances operational capabilities, making it an ideal choice for diverse environments. The series CCI not only meets industry standards but also offers optional ATEX certification, accommodating various environmental conditions. This positioning not only showcases its robust build but also its adaptability, providing a seamless integration into existing systems.
Compact design ensures easy installation in space-restricted areas
Double-acting functionality optimises operational efficiency
Elastic cushioning reduces wear and prolongs service life
Magnetic piston allows for quick and easy sensor integration
ATEX certification option provides safety for hazardous environments
Wide ambient temperature range ensures operation in diverse conditions
Lightweight construction aids in reducing overall system inertia
Aluminium and stainless steel materials enhance durability and resistance
Available with minimal oil content requirements for eco-friendly operation
Versatile port configurations accommodate various connections
Double-acting functionality optimises operational efficiency
Elastic cushioning reduces wear and prolongs service life
Magnetic piston allows for quick and easy sensor integration
ATEX certification option provides safety for hazardous environments
Wide ambient temperature range ensures operation in diverse conditions
Lightweight construction aids in reducing overall system inertia
Aluminium and stainless steel materials enhance durability and resistance
Available with minimal oil content requirements for eco-friendly operation
Versatile port configurations accommodate various connections
