EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010534, 25mm Bore, 25mm Stroke, KHZ Series, Double Acting
- RS Stock No.:
- 273-979
- Mfr. Part No.:
- 0822010534
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£59.06
(exc. VAT)
£70.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £59.06 |
*price indicative
- RS Stock No.:
- 273-979
- Mfr. Part No.:
- 0822010534
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822010534 | |
Action | Double | |
Stroke | 25mm | |
Bore | 25mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Stroke Interval Weight | 0.03 @ 10 mm kg/mm | |
Maximum Operating Temperature | +80°C | |
Test Weight | 0.164 kg | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822010534 | ||
Action Double | ||
Stroke 25mm | ||
Bore 25mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Stroke Interval Weight 0.03 @ 10 mm kg/mm | ||
Maximum Operating Temperature +80°C | ||
Test Weight 0.164 kg | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- HU

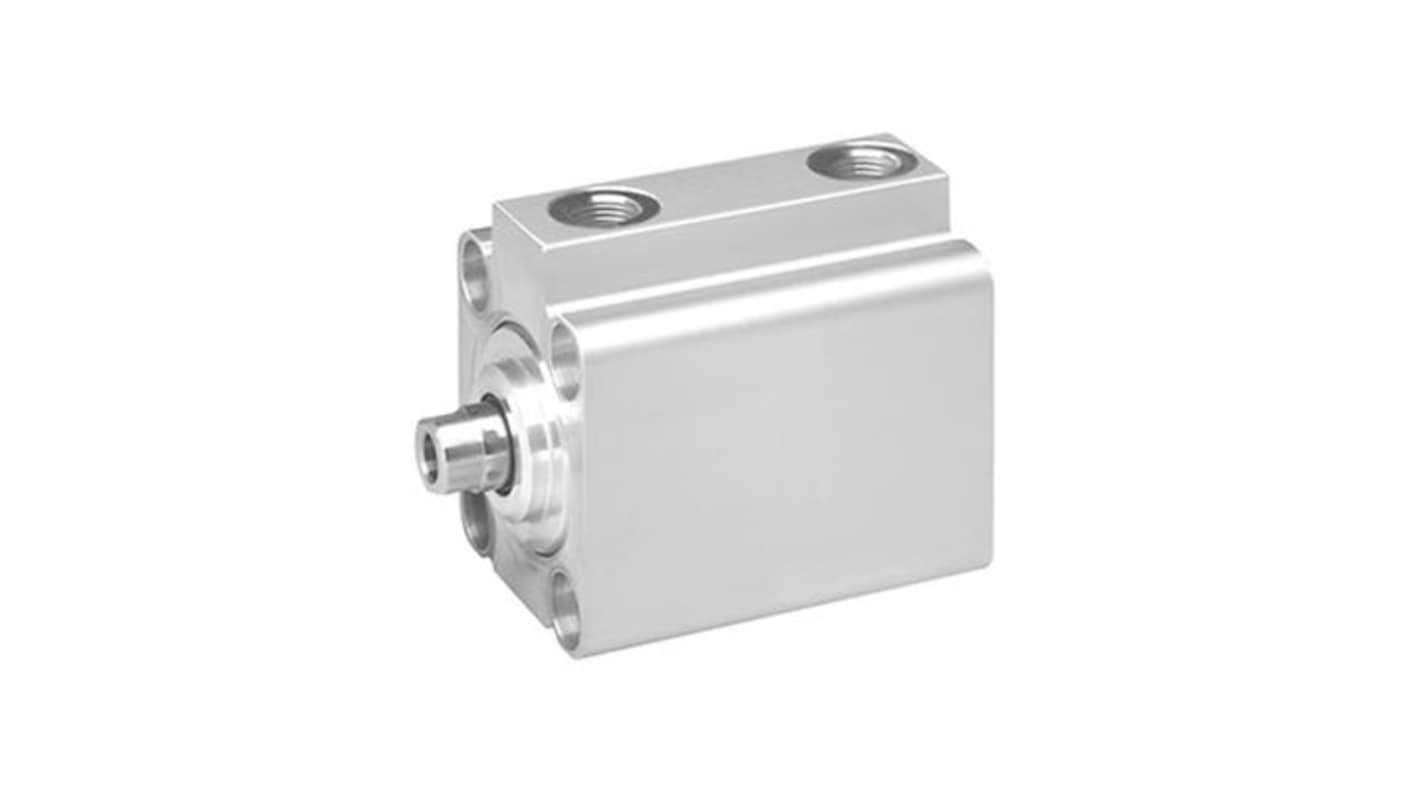

The Aventics Short Stroke Cylinder, part of the series KHZ, is expertly designed to excel in tight installation spaces without compromising performance. Built from high-quality materials, its robust construction ensures durability while maintaining exceptional functionality. The cylinder operates on a double-acting functional principle, providing reliable and consistent power in various industrial applications. Ideal for automation and machinery integration, this model blends seamlessly into systems requiring precision engineering.
Stainless steel piston rod promotes corrosion resistance and longevity
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Aluminium cylinder tube and end cover provide a lightweight yet robust structure
Compatible with compressed air mediums making it versatile for numerous applications
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Aluminium cylinder tube and end cover provide a lightweight yet robust structure
Compatible with compressed air mediums making it versatile for numerous applications
