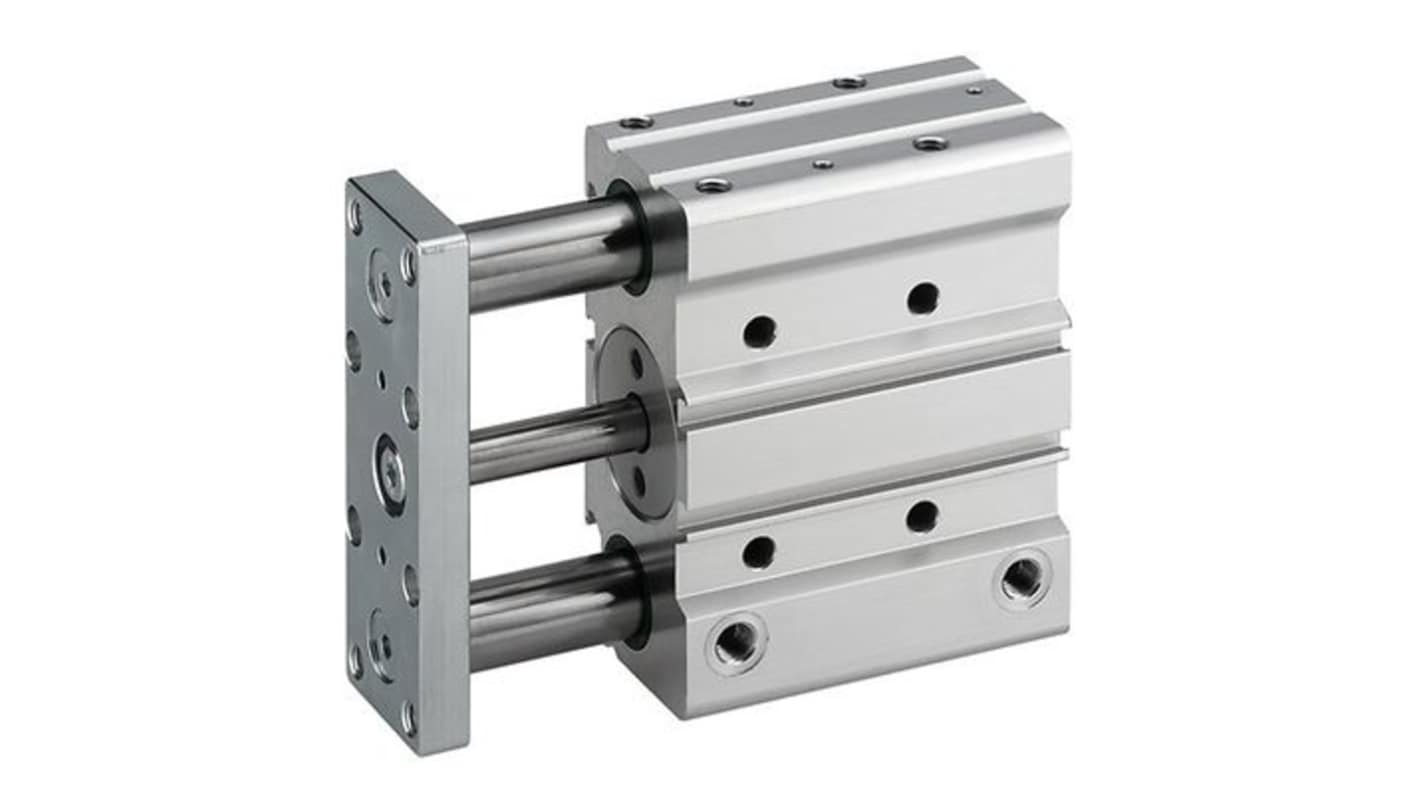

EMERSON – AVENTICS Pneumatic Guided Cylinder - R402000307, 10mm Bore, 75mm Stroke, GPC Series, Double Acting
- RS Stock No.:
- 273-903
- Mfr. Part No.:
- R402000307
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£256.38
(exc. VAT)
£307.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £256.38 |
*price indicative
- RS Stock No.:
- 273-903
- Mfr. Part No.:
- R402000307
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | GPC | |
Model Number p | R402000307 | |
Action | Double | |
Bore | 10mm | |
Stroke | 75mm | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 8 bar | |
Piston Speed | 500mm/s | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series GPC | ||
Model Number p R402000307 | ||
Action Double | ||
Bore 10mm | ||
Stroke 75mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 8 bar | ||
Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- HU
The Aventics Guide Cylinders from the Series GPC-BV integrate advanced engineering to deliver exceptional performance in demanding industrial environments. Featuring a robust, double-acting design, these cylinders are adept at handling high side loads and offer superior torsion protection. The 10 mm piston diameter allows for precision movements, while the elastic cushioning system enhances operational smoothness.
Versatile applicability across various industrial applications
Robust build materials ensure longevity and reliability
Wide operational temperature range caters to diverse environments
Enhanced compatibility with sensor series for flexible integrations
Robust build materials ensure longevity and reliability
Wide operational temperature range caters to diverse environments
Enhanced compatibility with sensor series for flexible integrations
