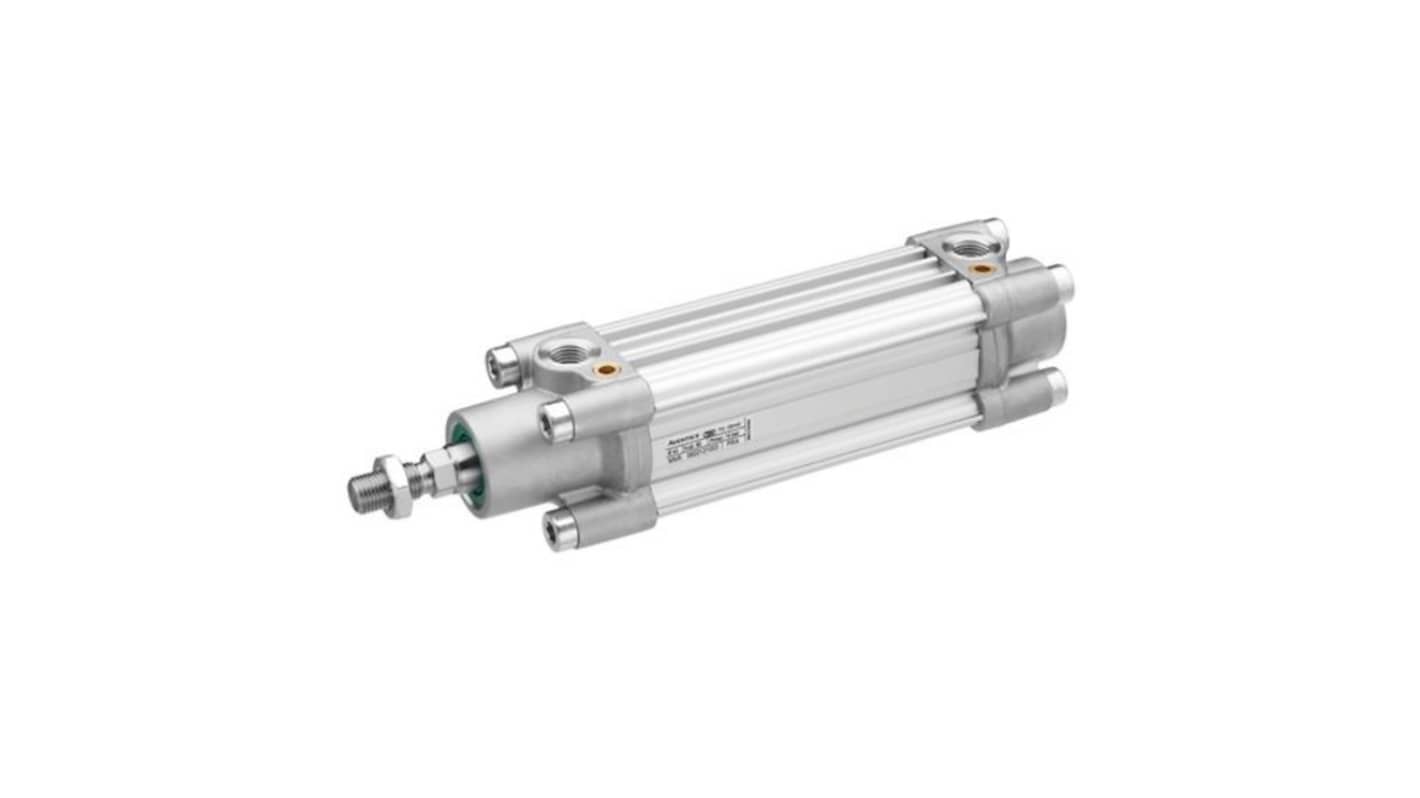

EMERSON – AVENTICS ISO Standard Cylinder - R480140491, 125mm Bore, 25mm Stroke, PRA Series, Double Acting
- RS Stock No.:
- 273-620
- Mfr. Part No.:
- R480140491
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£551.55
(exc. VAT)
£661.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £551.55 |
*price indicative
- RS Stock No.:
- 273-620
- Mfr. Part No.:
- R480140491
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | PRA | |
Model Number p | R480140491 | |
Bore | 125mm | |
Action | Double | |
Stroke | 25mm | |
Pneumatic Connection | G 1/2 | |
Port Connection | G 1/2 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series PRA | ||
Model Number p R480140491 | ||
Bore 125mm | ||
Action Double | ||
Stroke 25mm | ||
Pneumatic Connection G 1/2 | ||
Port Connection G 1/2 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics Series PRA Profile Cylinder ISO 15552 offers an exceptional blend of innovative design and industrial efficiency. Tailored for diverse applications across various sectors, this cylinder features a compact profile and built-in sensor slots, making it ideal for general automation and specific industrial needs. The double-acting functional principle ensures reliable performance, while the adjustable pneumatic cushioning enhances operational precision. With an impressive operating temperature range of -20°C to 80°C, this cylinder is equipped to thrive in demanding environments. Constructed from robust materials including stainless steel and die-cast aluminium, it meets industry standards and can accommodate ATEX certification. This makes it a versatile choice for applications requiring strict safety compliance.
Compact design enhances installation flexibility
Integrated sensor slots facilitate easy monitoring
Double-acting principle ensures consistent operation
Pneumatic adjustable cushioning optimises performance
Durable materials prolong product life and reliability
Meets ATEX certification for enhanced safety in hazardous environments
Wide temperature range supports diverse working conditions
Designed for easy integration into existing systems
Low maintenance requirements contribute to overall efficiency
Variable stroke lengths cater to specific application needs
Integrated sensor slots facilitate easy monitoring
Double-acting principle ensures consistent operation
Pneumatic adjustable cushioning optimises performance
Durable materials prolong product life and reliability
Meets ATEX certification for enhanced safety in hazardous environments
Wide temperature range supports diverse working conditions
Designed for easy integration into existing systems
Low maintenance requirements contribute to overall efficiency
Variable stroke lengths cater to specific application needs
