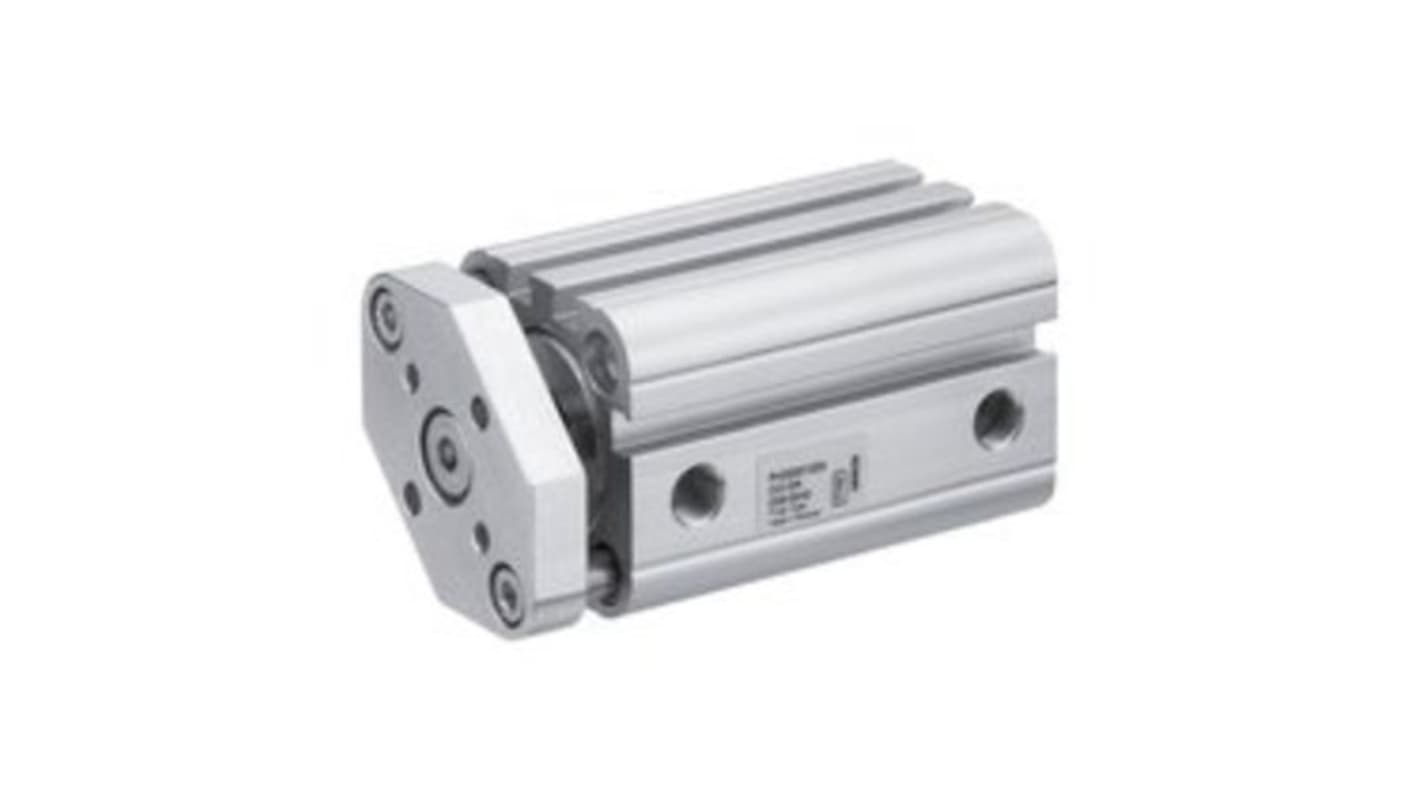

EMERSON – AVENTICS Pneumatic Compact Cylinder - R422001324, 25mm Bore, 40mm Stroke, CCI Series, Double Acting
- RS Stock No.:
- 273-566
- Mfr. Part No.:
- R422001324
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£110.03
(exc. VAT)
£132.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £110.03 |
*price indicative
- RS Stock No.:
- 273-566
- Mfr. Part No.:
- R422001324
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | CCI | |
Model Number p | R422001324 | |
Stroke | 40mm | |
Action | Double | |
Bore | 25mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCI | ||
Model Number p R422001324 | ||
Stroke 40mm | ||
Action Double | ||
Bore 25mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics Series CCI compact cylinder (ISO 21287) represents the pinnacle of innovation and design in the realm of actuators. Renowned for its compact yet robust construction, this cylinder effortlessly meets the demands of diverse industrial applications. Its easy-to-clean features enhance hygiene and efficiency, making it an ideal choice for environments with stringent cleanliness requirements. The Series CCI is tailored for long stroke lengths and optimised cycle times, ensuring that performance is never compromised. With sensors that can be swiftly installed along the entire length of the cylinder, reliability and adaptability come standard. Designed for double-acting functionality, this cylinder not only boasts an elastic cushioning mechanism for smooth operation but is also available with ATEX certification, making it suitable for hazardous environments.
Compact design ideal for applications with space constraints
Easy-to-clean construction that promotes operational efficiency
Suitable for long strokes, addressing increased operational demands
Sensors can be fitted quickly and easily for enhanced adaptability
Double-acting operation ensures powerful performance
Elastic cushioning enables smooth and controlled movements
Optional ATEX certification allows use in challenging environments
Wide range of temperature tolerances for diverse industrial applications
Quality materials like stainless steel and aluminium ensure durability
Designed to maintain optimal air quality for operational effectiveness
Easy-to-clean construction that promotes operational efficiency
Suitable for long strokes, addressing increased operational demands
Sensors can be fitted quickly and easily for enhanced adaptability
Double-acting operation ensures powerful performance
Elastic cushioning enables smooth and controlled movements
Optional ATEX certification allows use in challenging environments
Wide range of temperature tolerances for diverse industrial applications
Quality materials like stainless steel and aluminium ensure durability
Designed to maintain optimal air quality for operational effectiveness
