MPN

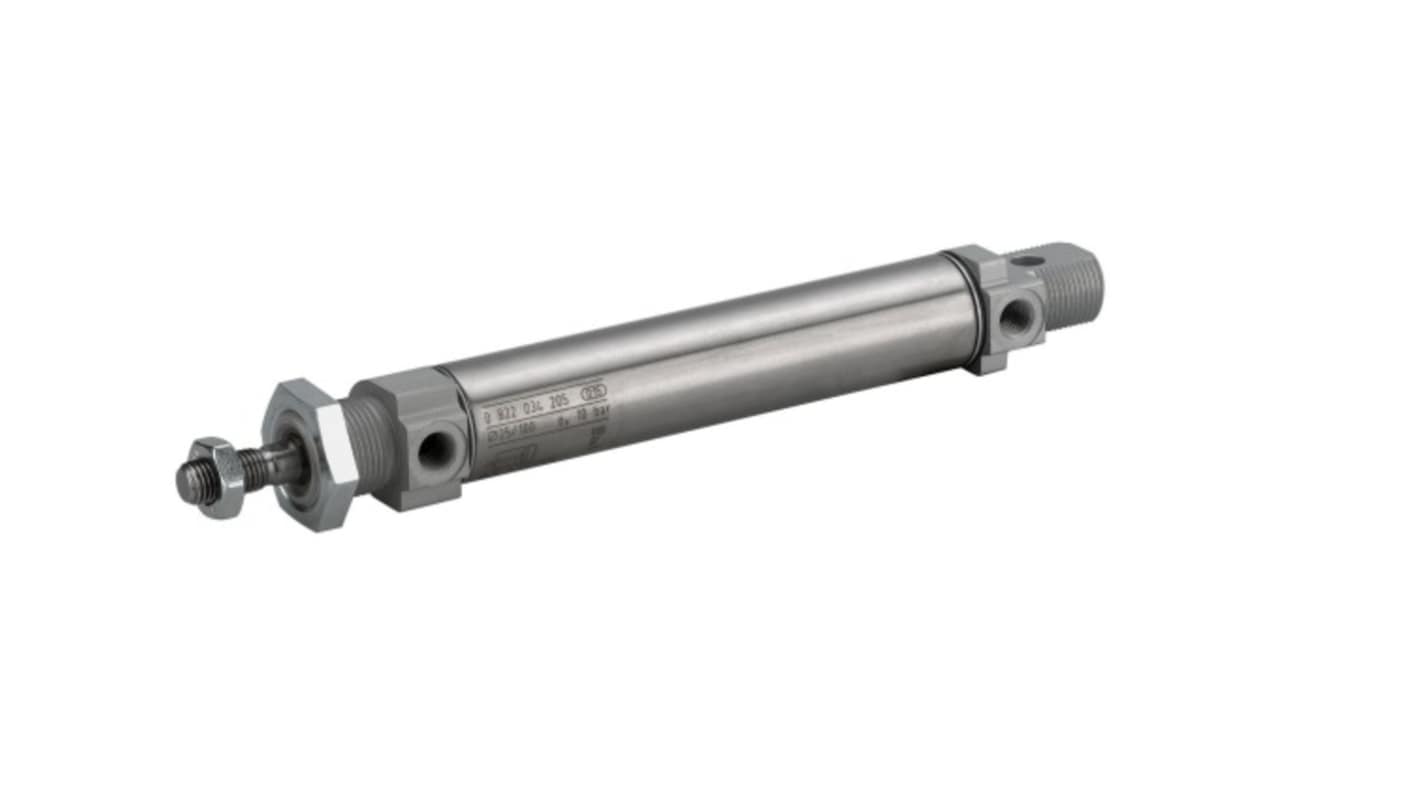

EMERSON – AVENTICS Roundline Cylinder - 0822334206, 25mm Bore, 125mm Stroke, MNI Series, Double Acting

Subtotal (1 unit)*

£71.78

(exc. VAT)

£86.14

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£71.78

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	MNI
	Model Number p	0822334206
	Action	Double
	Stroke	125mm
	Bore	25mm
	Port Connection	G 1/8
	Pneumatic Connection	G 1/8
	Piston Rod Thread Gender	Male
	Cushioning Type	Elastic
	Maximum Operating Pressure	10 bar
	ISO Standard	ISO 6432
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series MNI
	Model Number p 0822334206
	Action Double
	Stroke 125mm
	Bore 25mm
	Port Connection G 1/8
	Pneumatic Connection G 1/8
	Piston Rod Thread Gender Male
	Cushioning Type Elastic
	Maximum Operating Pressure 10 bar
	ISO Standard ISO 6432
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +80°C
