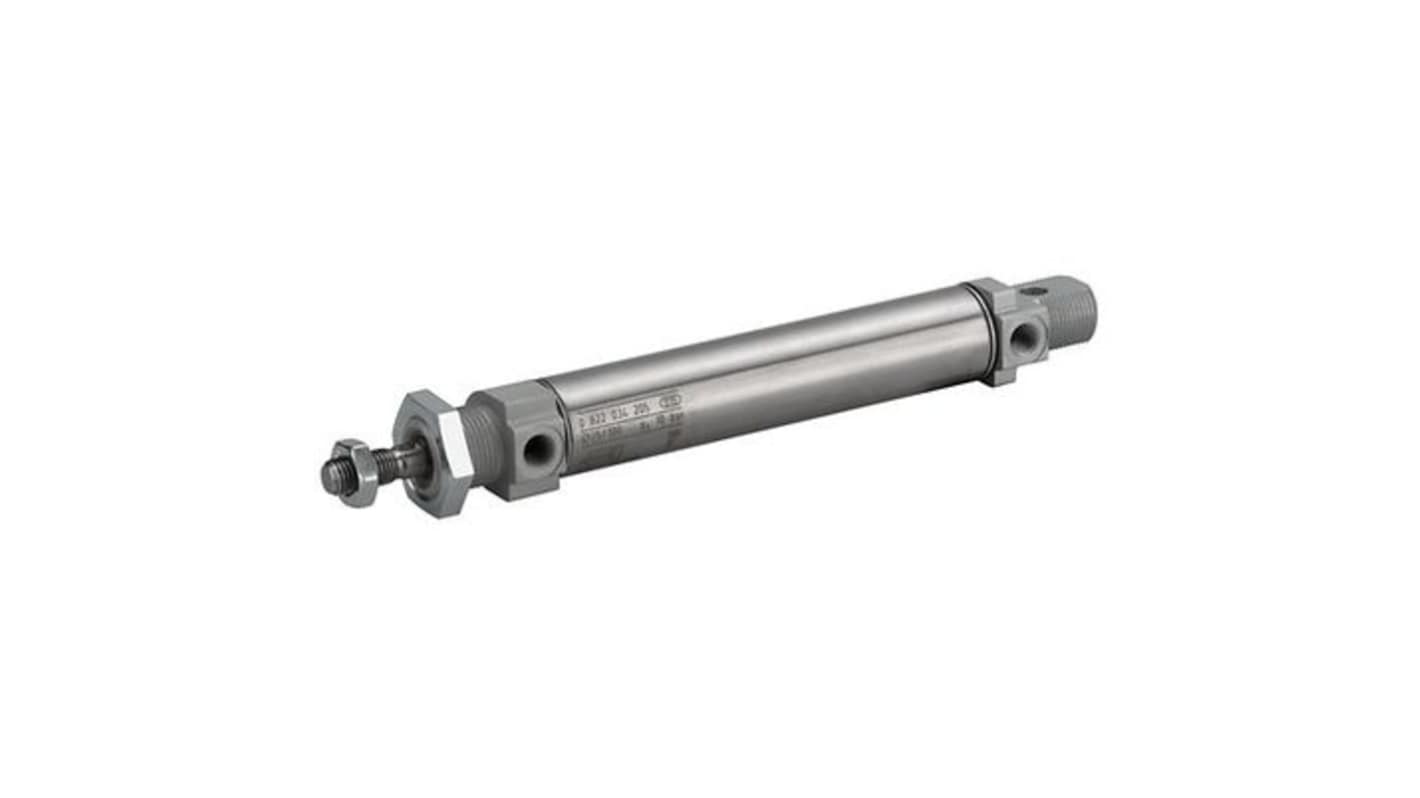

EMERSON – AVENTICS Roundline Cylinder - 0822033209, 20mm Bore, 250mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 272-904
- Mfr. Part No.:
- 0822033209
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£70.63
(exc. VAT)
£84.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £70.63 |
*price indicative
- RS Stock No.:
- 272-904
- Mfr. Part No.:
- 0822033209
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Model Number p | 0822033209 | |
Action | Double | |
Stroke | 250mm | |
Bore | 20mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822033209 | ||
Action Double | ||
Stroke 250mm | ||
Bore 20mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
The Aventics Mini Cylinder is designed to meet the demands of general machine construction with its robust design and long service life. This exceptional round cylinder, complying with ISO 6432 standards, provides reliable performance in a variety of industrial applications. Engineered for double-acting functionality, the Series MNI offers precise control and efficiency. Its compact size makes it ideal for installations where space is at a premium, while the elastic cushioning ensures maximum safety and durability.
Designed to operate effectively in a wide temperature range
ATEX certification options available for hazardous environments
Stainless steel piston rod promotes corrosion resistance and longevity
Robust construction
Long service life
ATEX certification options available for hazardous environments
Stainless steel piston rod promotes corrosion resistance and longevity
Robust construction
Long service life
