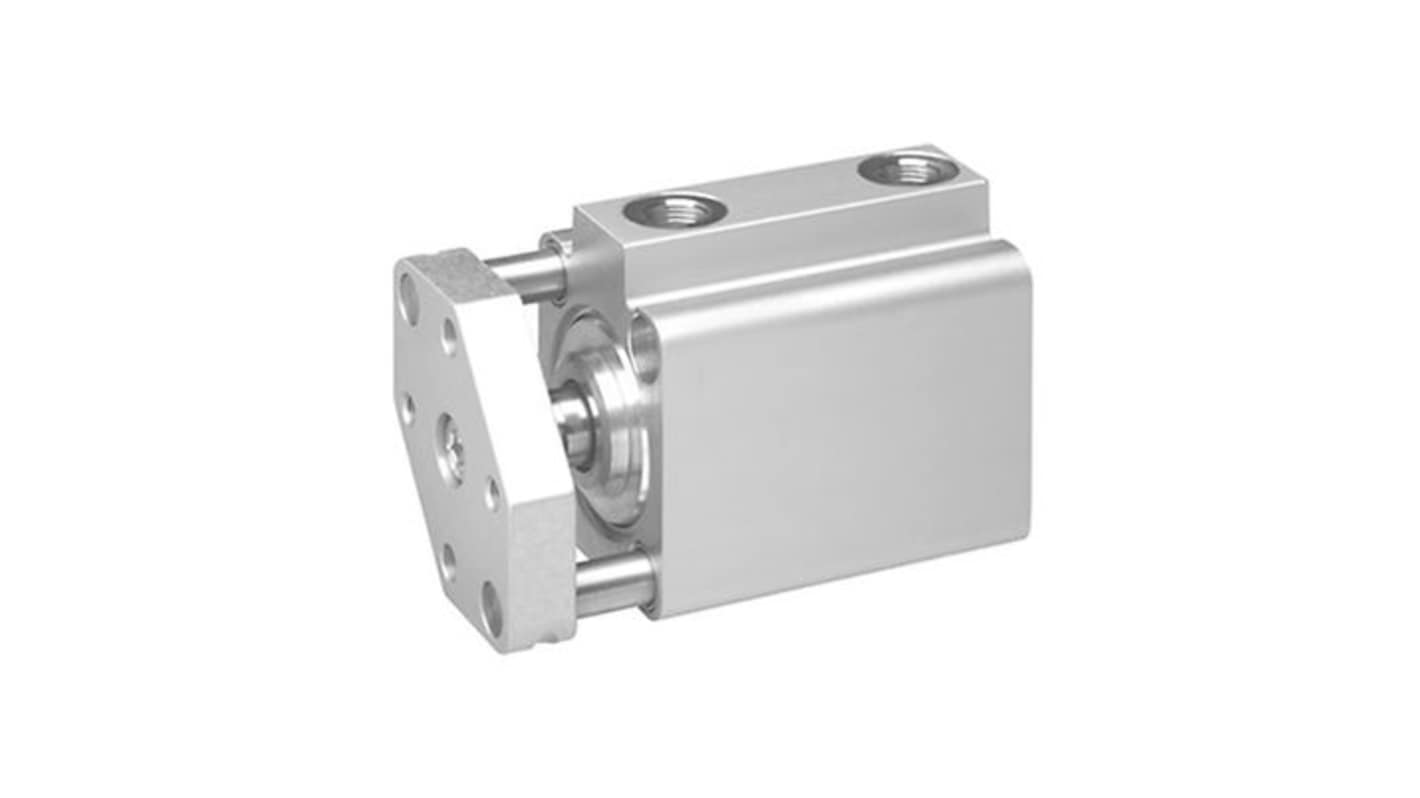

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010849, 32mm Bore, 100mm Stroke, KHZ Series, Double Acting
- RS Stock No.:
- 271-706
- Mfr. Part No.:
- 0822010849
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£194.58
(exc. VAT)
£233.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £194.58 |
*price indicative
- RS Stock No.:
- 271-706
- Mfr. Part No.:
- 0822010849
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822010849 | |
Bore | 32mm | |
Action | Double | |
Stroke | 100mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822010849 | ||
Bore 32mm | ||
Action Double | ||
Stroke 100mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
The Aventics Series KHZ short-stroke cylinder is crafted for precision and efficiency in confined spaces. This sophisticated solution embraces advanced engineering, making it the go-to choice for industries that demand reliable performance. Its compact design combines functionality with ease of integration, ensuring seamless incorporation into various machinery setups. The double-acting mechanism optimises piston movement while elastic cushioning guarantees gentle operation, significantly reducing wear and tear. With robust materials and industry-standard features, this cylinder meets the rigorous requirements of modern applications, providing unparalleled reliability and longevity. Perfect for tight installation environments, the Series KHZ advances operational effectiveness without compromising safety or quality.
Designed for optimal performance in tight spaces
Double-acting functionality enhances efficiency
Robust elastic cushioning minimises operational noise
Equipped with a magnetic piston for reliable detection
Constructed from high-quality materials for enhanced durability
Industry-standard specifications ensure compatibility
Lightweight design facilitates easy handling and installation
Piston rod with an internal thread allows versatile positioning
Standard scraper provides increased protection against contaminants
Excellent temperature tolerance for diverse environments
Double-acting functionality enhances efficiency
Robust elastic cushioning minimises operational noise
Equipped with a magnetic piston for reliable detection
Constructed from high-quality materials for enhanced durability
Industry-standard specifications ensure compatibility
Lightweight design facilitates easy handling and installation
Piston rod with an internal thread allows versatile positioning
Standard scraper provides increased protection against contaminants
Excellent temperature tolerance for diverse environments
