RS PRO 57065 Non Return Valve, Push In 10mm Tube Inlet, 2 to 8bar

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
187-5692
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Tube Inlet Connection

Push In 10mm

Inlet Connection Type

Tube

Outlet Connection Type

Threaded

Manufacturer Series

57065

Minimum Operating Pressure

2bar

Maximum Operating Pressure

8 bar

Maximum Operating Temperature

+80°C

Threaded Outlet Gender

Male

Minimum Operating Temperature

-20°C

Body Material

Brass

Operating Pressure Range

2 to 8bar

Threaded Outlet Thread Size

1/4in

COO (Country of Origin):
IT

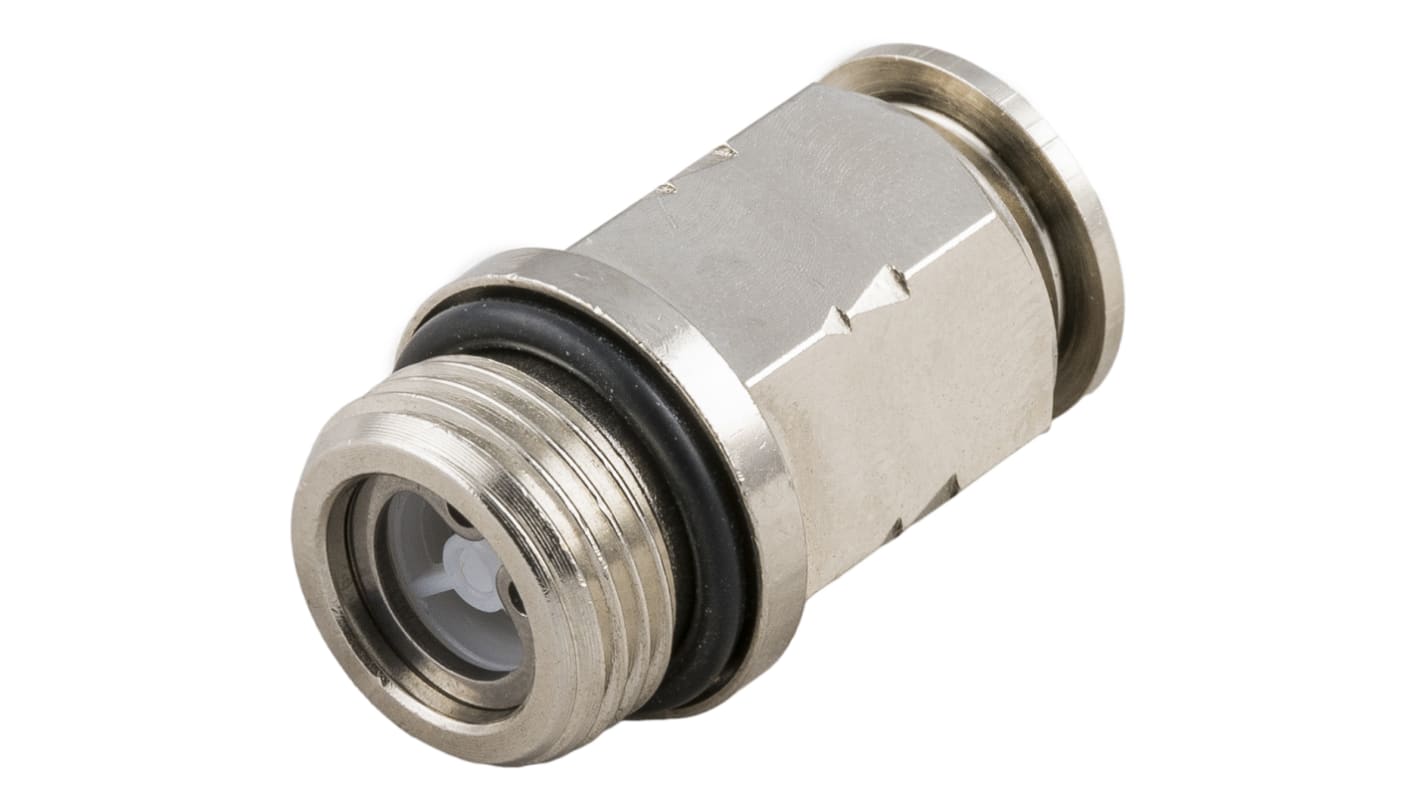

RS PRO Check Valve


The RS PRO 57065 series check valve has push-in 10mm tube inlet connection and male threaded outlet connection. The valve body is made of nickel-plated brass material. This line of technopolymer valves are lighter and more compact, thus offering high performance to demanding customers. This valve has a length of 34.5mm.

Features and Benefits


• 3 threads available: BSPP, BSPT (universal short) & Metric
• Full flow and vacuum resistant tank to special shaped seals
• Lighter and more compact
• Operating pressure ranges between 2bar and 8bar
• Operating temperature ranges between -20°C and 80°C
• Outlet thread size of 1/4in
• Quick connection and disconnection
• Silicon free
• Specific configurations to satisfy the advanced robotics

Applications


• Robotics
• Automotive
• Textile, packaging and handling
• Vacuum
• Industrial water
• Compressed air circuit

Certifications


• REACH compliant
• ISO 14743:2004
• PED 2014/68/UE
• 2011/65/CE
