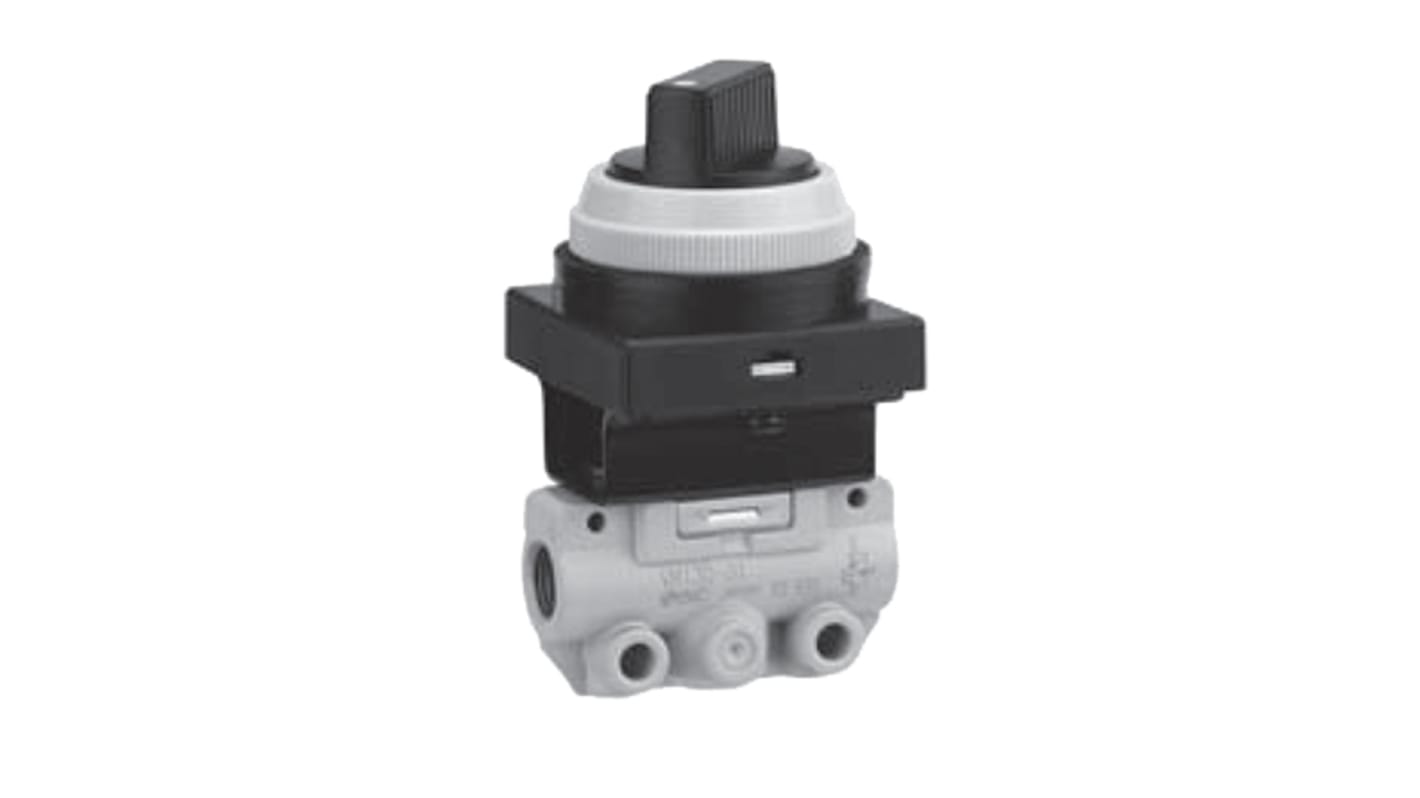

SMC Twist Selector (2 Position) Pneumatic Manual Control Valve VM100 Series, Rc, NPT R 1/8, III B
- RS Stock No.:
- 885-2102
- Mfr. Part No.:
- VM130-01-34RA
- Brand:
- SMC
Get a bulk buy discount
Add 5 more to save 5%
View bulk pricing optionsSubtotal (1 unit)*
£37.11
(exc. VAT)
£44.53
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 23 unit(s) shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £37.11 | - |
| 5 - 9 | £34.93 | 5% |
| 10 + | £33.46 | 9% |
*price indicative
- RS Stock No.:
- 885-2102
- Mfr. Part No.:
- VM130-01-34RA
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Control Mechanism | Twist Selector (2 Position) | |
| Product Type | Pneumatic Manual Control Valve | |
| Connection Thread Standard | Rc, NPT | |
| Port Size | R 1/8 | |
| Series | VM100 | |
| Control Button/Switch Colour | Red | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Zinc Die Cast Alloy | |
| Maximum Flow Rate | 1088L/min | |
| Minimum Operating Temperature | -5°C | |
| Valve Function | Pneumatic Relay | |
| Maximum Operating Temperature | +60°C | |
| Standards/Approvals | No | |
| Number of Positions | 2 | |
| Number of Ports | 3 | |
| Thread Size | 1/8 | |
| Model Number | III B | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Control Mechanism Twist Selector (2 Position) | ||
Product Type Pneumatic Manual Control Valve | ||
Connection Thread Standard Rc, NPT | ||
Port Size R 1/8 | ||
Series VM100 | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Zinc Die Cast Alloy | ||
Maximum Flow Rate 1088L/min | ||
Minimum Operating Temperature -5°C | ||
Valve Function Pneumatic Relay | ||
Maximum Operating Temperature +60°C | ||
Standards/Approvals No | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Thread Size 1/8 | ||
Model Number III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
VM100 Series - Twist Selector
SMCs VM100 series are a compact and lightweight series of twist select mechanical pneumatic valves. Built to withstand harsh working conditions and ideal for pneumatic control panels and confirming the position of a work piece using a pneumatic signal.
3 Port, 2 Way
Poppet type construction
R1/8 Ports
Suitable for vacuum applications
Side mounting or bottom mounting
