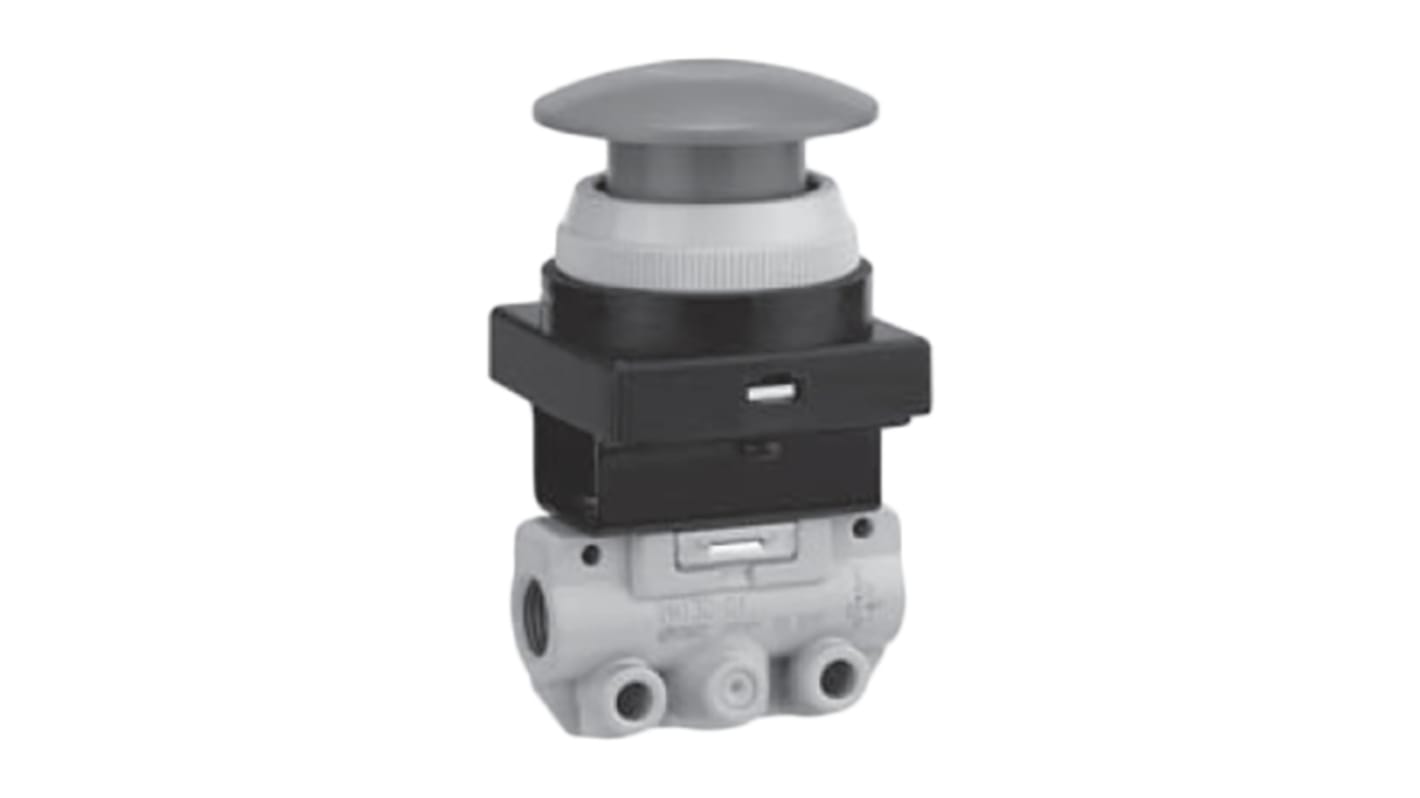

SMC Push Button (Mushroom) Pneumatic Relay Pneumatic Manual Control Valve VM100 Series, R 1/8, 1/8, III B
- RS Stock No.:
- 885-2095
- Mfr. Part No.:
- VM130-01-30RA
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£36.34
(exc. VAT)
£43.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £36.34 |
5 - 9 | £34.20 |
10 + | £32.77 |
*price indicative
- RS Stock No.:
- 885-2095
- Mfr. Part No.:
- VM130-01-30RA
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Control Mechanism | Push Button (Mushroom) | |
Connection Port Thread | R 1/8 | |
Function | Pneumatic Relay | |
Thread Size | 1/8 | |
Thread Standard | R | |
Manufacturer Series | VM100 | |
Control Button/Switch Colour | Red | |
Maximum Operating Pressure | 1 MPa | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +60°C | |
Number of Positions | 2 | |
Number of Ports | 3 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand SMC | ||
Control Mechanism Push Button (Mushroom) | ||
Connection Port Thread R 1/8 | ||
Function Pneumatic Relay | ||
Thread Size 1/8 | ||
Thread Standard R | ||
Manufacturer Series VM100 | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
SMC VM100 Series Pneumatic Manual Control Valve, 1 MPa Maximum Operating Pressure, 3 Ports - VM130-01-30RA
This pneumatic manual control valve is designed to facilitate efficient airflow in various applications. The product features a compact design with a body material made of durable PBT, ensuring robustness under varying conditions. It operates within a temperature range of -5 °C to +60 °C and can handle a maximum operating pressure of 1 MPa, making it suitable for high-pressure pneumatic control scenarios. The valve operates with a simple push-button mechanism for ease of use.
Features & Benefits
• Push-button control for straightforward manual operation
• Compact design with three-port connectivity for versatility
• High maximum operating pressure of 1 MPa for demanding systems
• Effective in a temperature range of -5 °C to +60 °C
• PBT body material offers durability and corrosion resistance
• Ideal for use as a pneumatic relay for enhanced system control
• Compact design with three-port connectivity for versatility
• High maximum operating pressure of 1 MPa for demanding systems
• Effective in a temperature range of -5 °C to +60 °C
• PBT body material offers durability and corrosion resistance
• Ideal for use as a pneumatic relay for enhanced system control
Applications
• Used in automation systems for precise control
• Suitable for mechanical assemblies requiring manual valve operation
• Employed in pneumatic control systems for effective airflow regulation
• Utilised in various industries including manufacturing and assembly lines
• Suitable for mechanical assemblies requiring manual valve operation
• Employed in pneumatic control systems for effective airflow regulation
• Utilised in various industries including manufacturing and assembly lines
How does the push-button mechanism improve operational efficiency?
The push-button mechanism allows for quick and easy manual operation, enabling users to control airflow efficiently without complex setups. This simplicity enhances productivity in industrial applications.
What is the significance of a 3-port design in pneumatic systems?
A 3-port design allows for versatile functionality, enabling the valve to effectively control the flow of air or inert gases, making it ideal for various applications within pneumatic circuits.
What maintenance is required to ensure optimal performance?
Regular inspections should be conducted to ensure that the push-button is functioning correctly and that no debris obstructs the valves operation. Periodic cleaning of the outer surfaces helps maintain integrity.
