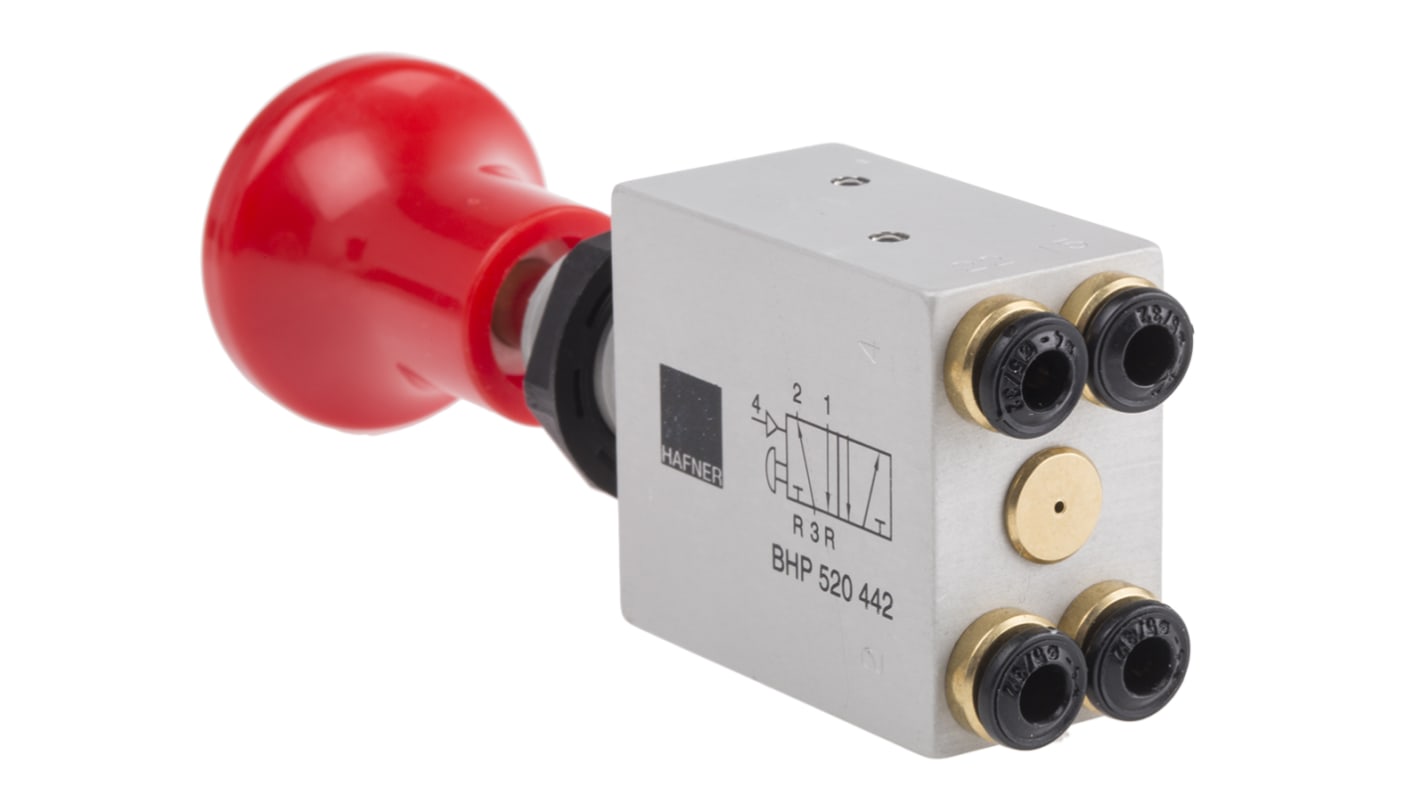

RS PRO Push Pull 4/2 Pneumatic Manual Control Valve BHP Series, Push In 4 mm, 4mm, III B
- RS Stock No.:
- 784-0072
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£52.31
(exc. VAT)
£62.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 8 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.31 |
| 5 - 9 | £50.69 |
| 10 + | £49.07 |
*price indicative
- RS Stock No.:
- 784-0072
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Control Mechanism | Push Pull | |
| Connection Port Thread | Push In 4 mm | |
| Function | 4/2 | |
| Thread Size | 4mm | |
| Thread Standard | Push In | |
| Manufacturer Series | BHP | |
| Control Button/Switch Colour | Red | |
| Maximum Operating Pressure | 16 bar | |
| Maximum Flow Rate | 300L/min | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Number of Ports | 4/2 | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Control Mechanism Push Pull | ||
Connection Port Thread Push In 4 mm | ||
Function 4/2 | ||
Thread Size 4mm | ||
Thread Standard Push In | ||
Manufacturer Series BHP | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 16 bar | ||
Maximum Flow Rate 300L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Number of Ports 4/2 | ||
Model Number p III B | ||
Power Take-Off (PTO) Control Valves
Power Take-Off (PTO) Control Valves from RS are suitable for panel/body/dashboard mounting, feature actuation using a push-pull knob, and may operate within temperature limits from -10°C to +50°C. The valves accommodate a maximum flow up to 300 litres per minute, and a pressure range from 0 to 16 bar. Power Take-Off Valves may be used as control valves for power take-off (PTO) applications on commercial vehicles. Power Take-Off Control Valves feature an integrated handbrake interlock safety function (to prevent, for example, a vehicle being driven while the Power Take-Off is still engaged). The valves may also be used within general industry applications as a push-pull control valve.
RS Control Valves and Accessories
RS Spool Valves, Spool Valve Bodies, NAMUR Solenoid-Spring Valves, Power Take-Off (PTO) Valves, Intrinsically Safe (ATEX approved) Solenoid-Spring Valves and the Filter-Regulator-Lubricator (FRL) Portable Air Cradle, suitable for use within a variety of general pneumatic, industrial, automation and control applications.
