SMC Push Button 3/2 Pneumatic Manual Control Valve VR51 Series, 2.5mm, III B
- RS Stock No.:
- 686-2719
- Mfr. Part No.:
- VR51-C06B
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£306.19
(exc. VAT)
£367.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £306.19 |
5 - 9 | £288.18 |
10 + | £276.18 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£293.17
(exc. VAT)
£351.80
(inc. VAT)
- RS Stock No.:
- 686-2719
- Mfr. Part No.:
- VR51-C06B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Control Mechanism | Push Button | |
Function | 3/2 | |
Thread Size | 2.5mm | |
Manufacturer Series | VR51 | |
Maximum Operating Pressure | 1 MPa | |
Body Material | Die Cast Aluminium | |
Maximum Flow Rate | 1L/s | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +60°C | |
Number of Ports | 3/2 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand SMC | ||
Control Mechanism Push Button | ||
Function 3/2 | ||
Thread Size 2.5mm | ||
Manufacturer Series VR51 | ||
Maximum Operating Pressure 1 MPa | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 1L/s | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
Number of Ports 3/2 | ||
Model Number p III B | ||
- COO (Country of Origin):
- JP
SMC Two Hand Control Valve

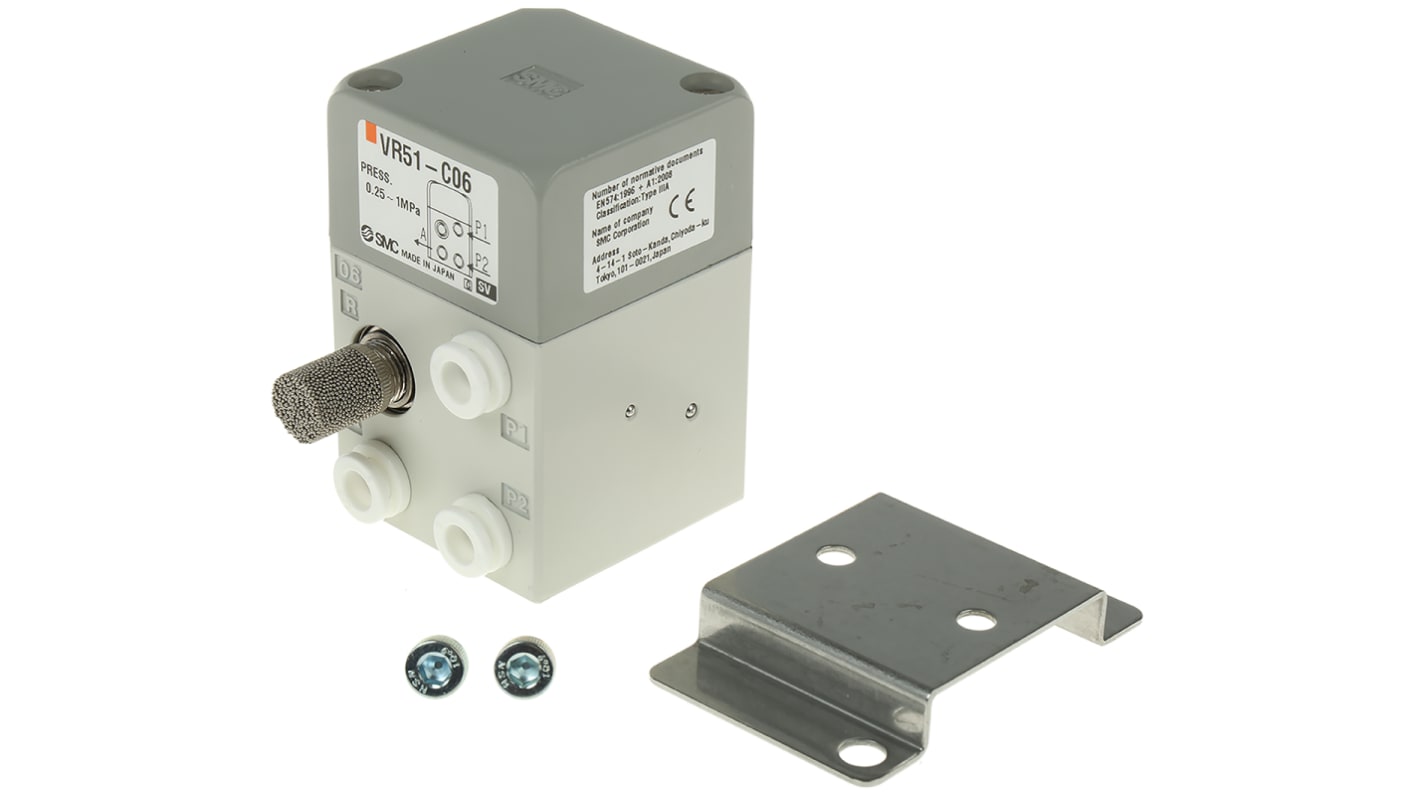

The SMC VR51 series 3/2 ports two-hand control valve with bracket has outputs with two-handed simultaneous operation. It prevents accidents whereby the operator's hands get caught or trapped by requiring both the hands to initialize operations. The VR51 can be installed, set up and configured as part of a safety circuit. For example, between two pushbutton-operated valves, an air-operated valve and a pneumatic cylinder, within a pneumatic control system.
Features and Benefits
Operating pressure ranging between 0.25MPa and 1MPa
Operating temperature ranging between -5°C and 60°C
Flame resistant
One-touch fitting ø6
Operating temperature ranging between -5°C and 60°C
Flame resistant
One-touch fitting ø6
Applications
Riveting and press fitting work
Clamping
Clamping
Certifications
EN574 compliant
