SMC Mechanical Valve VM Series, Metric M5, III B
- RS Stock No.:
- 232-8480
- Mfr. Part No.:
- VM122-M5-33A
- Brand:
- SMC
Subtotal (1 unit)*
£36.28
(exc. VAT)
£43.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.28 |
*price indicative
- RS Stock No.:
- 232-8480
- Mfr. Part No.:
- VM122-M5-33A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Mechanical Valve | |
| Port Size | M5 | |
| Connection Thread Standard | Metric | |
| Series | VM | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Die Cast Aluminium | |
| Valve Function | Pneumatic Relay | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 68.6mm | |
| Length | 44mm | |
| Width | 17mm | |
| Standards/Approvals | No | |
| Model Number | III B | |
| Thread Size | 5 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Mechanical Valve | ||
Port Size M5 | ||
Connection Thread Standard Metric | ||
Series VM | ||
Maximum Operating Pressure 8 bar | ||
Body Material Die Cast Aluminium | ||
Valve Function Pneumatic Relay | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Height 68.6mm | ||
Length 44mm | ||
Width 17mm | ||
Standards/Approvals No | ||
Model Number III B | ||
Thread Size 5 | ||
- COO (Country of Origin):
- JP

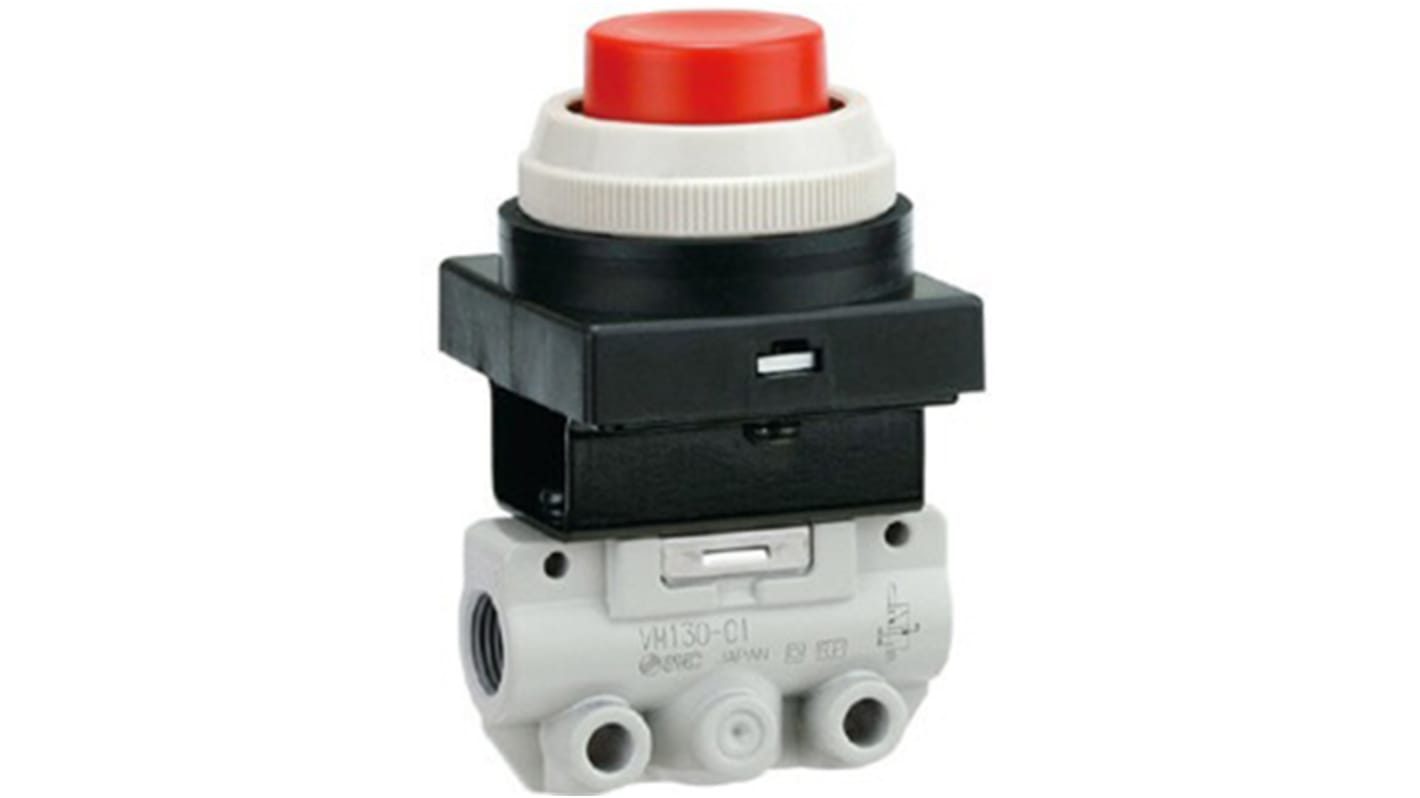

The SMC VM 100 series 2/3 port mechanical valve is side mount. It has M5 port size and 33 actuator type.
Fluid Air/Inert gas
Compact size
Piping options Side ported, Bottom ported
Possible to choose mounting method with side ported
Variety of actuator types
