SMC Rotary Knob 3/2 Pneumatic Manual Control Valve VHK Series, 2.5mm, III B

View this category
Bulk discount available

Subtotal (1 unit)*

£15.38

(exc. VAT)

£18.46

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1 unit(s), ready to ship from another location
Units
Per unit
1 - 4£15.38
5 - 9£14.48
10 +£13.89

*price indicative

RS Stock No.:
217-6121
Mfr. Part No.:
VHK3A-12F-12FRL
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Control Mechanism

Rotary Knob

Function

3/2

Manufacturer Series

VHK

Control Button/Switch Colour

Red

Maximum Operating Pressure

1 MPa

Body Material

PBT

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+60°C

Number of Ports

3/2

RoHS Status: Not Applicable

COO (Country of Origin):
FR

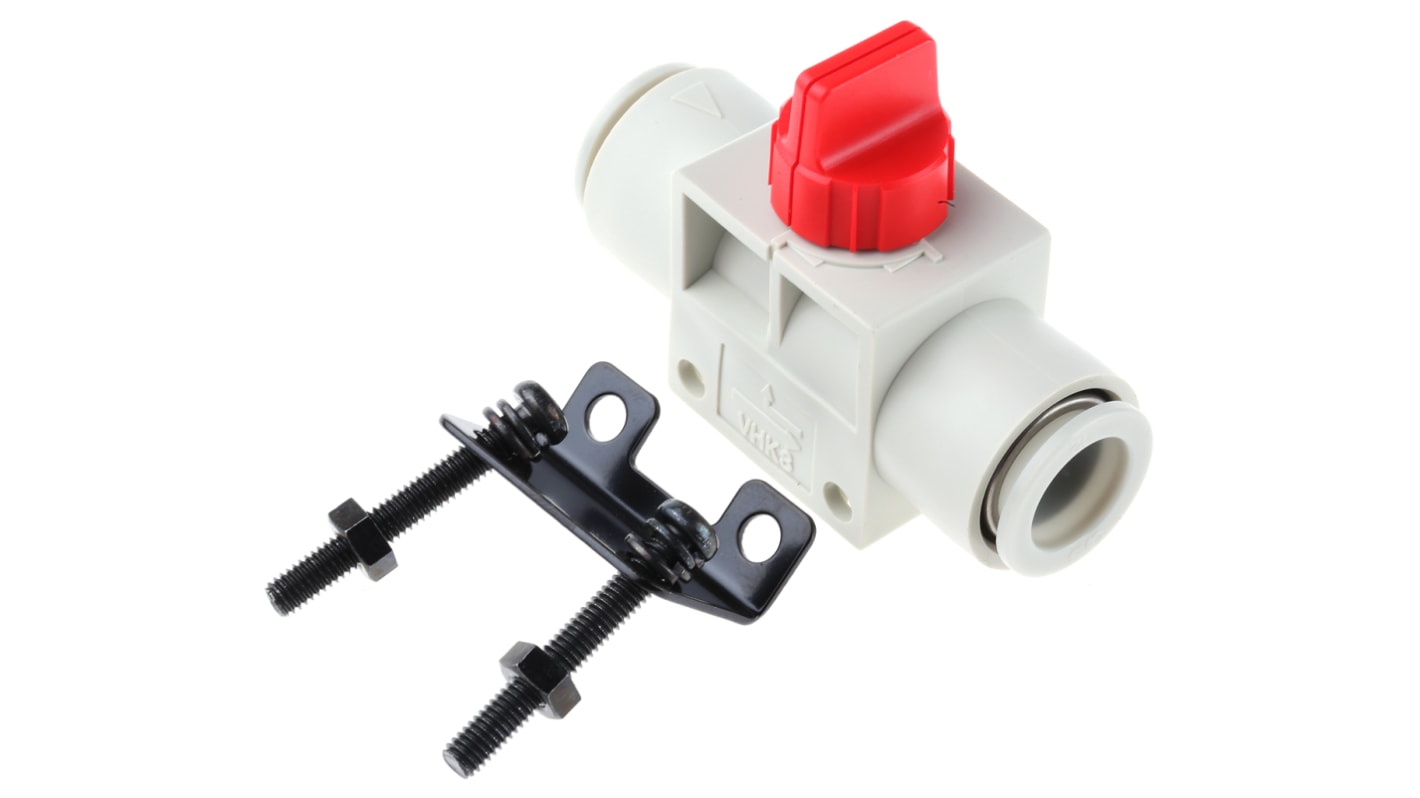

3 Port VHK Series Finger Valves


A 3 port manually operated pneumatic valve with One-touch push in connection available in tube sizes from 4 mm to 12 mm. Suitable for use with Nylon, soft Nylon and polyurethane tube. The valves poppet construction style is reliable with seal failure rare. The direction of flow is clearly marked on the body giving clear indication of whether the valve is open or closed. Residual pressure at port 2 is discharged to atmosphere when valve is set at shut.

Features and Benefits


High flow, long life poppet valve construction
Low operating force
Colour coded operating knobs for easy valve function identification
Proof pressure 15 bar
Maximum operating pressure 10.2 bar
Temperature range: 0 to +60° C

Applications


Suitable for use in pneumatic systems up to a pressure of 10 bar.
