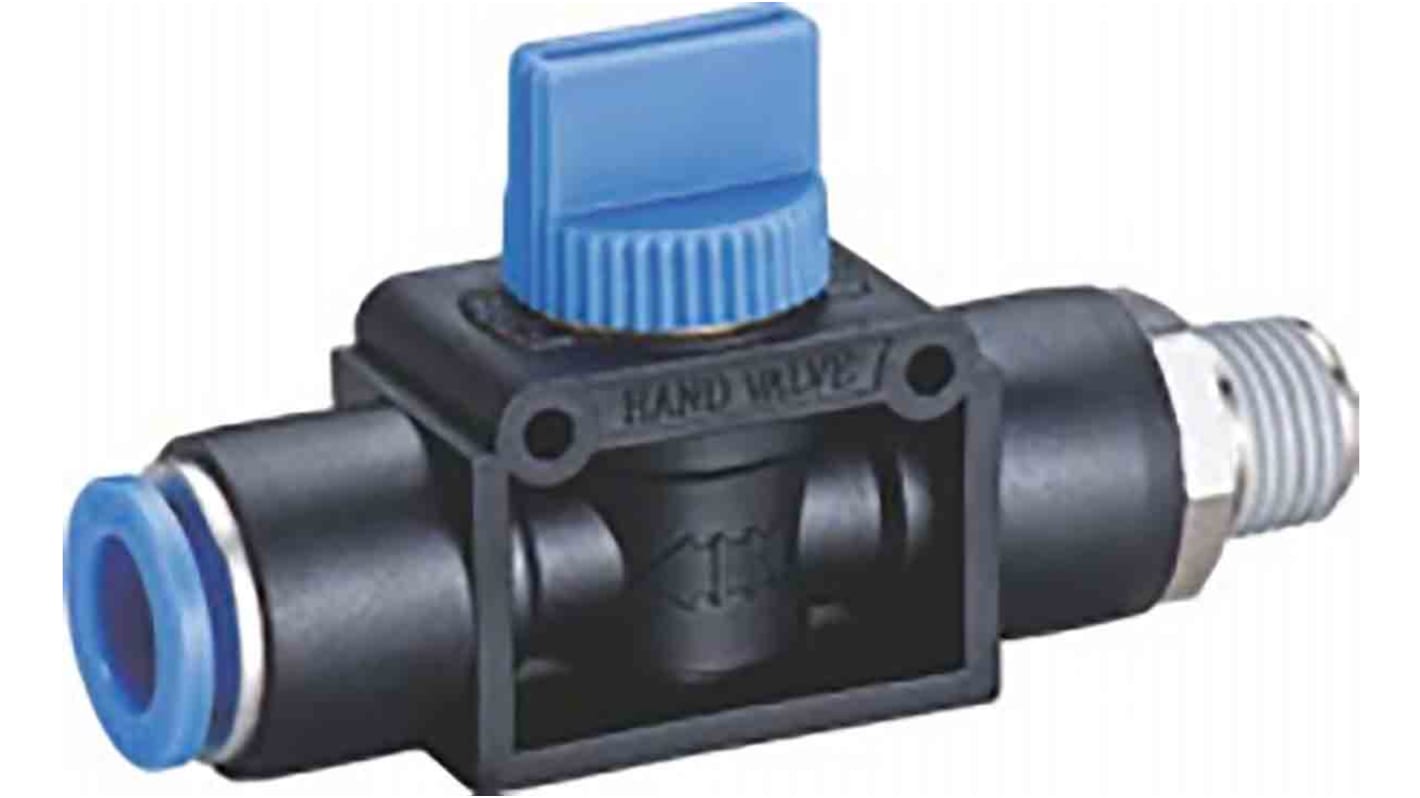

RS PRO Handle Pneumatic Manual Control Valve HVSS Series, PT, III B
- RS Stock No.:
- 144-2687
- Brand:
- RS PRO
Subtotal (1 bag of 10 units)*
£51.77
(exc. VAT)
£62.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £51.77 | £5.177 |
*price indicative
- RS Stock No.:
- 144-2687
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Manual Control Valve | |
| Control Mechanism | Handle | |
| Connection Thread Standard | PT | |
| Series | HVSS | |
| Control Button/Switch Colour | Blue | |
| Maximum Operating Pressure | 990 kPa | |
| Minimum Operating Temperature | 0°C | |
| Valve Function | 3/2 | |
| Maximum Operating Temperature | 50°C | |
| Height | 37.5mm | |
| Length | 69.8mm | |
| Standards/Approvals | RoHS | |
| Number of Ports | 2 | |
| Number of Positions | 3 | |
| Thread Size | 1/4 in, 1/8 in | |
| Model Number | III B | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Manual Control Valve | ||
Control Mechanism Handle | ||
Connection Thread Standard PT | ||
Series HVSS | ||
Control Button/Switch Colour Blue | ||
Maximum Operating Pressure 990 kPa | ||
Minimum Operating Temperature 0°C | ||
Valve Function 3/2 | ||
Maximum Operating Temperature 50°C | ||
Height 37.5mm | ||
Length 69.8mm | ||
Standards/Approvals RoHS | ||
Number of Ports 2 | ||
Number of Positions 3 | ||
Thread Size 1/4 in, 1/8 in | ||
Model Number III B | ||
- COO (Country of Origin):
- TW
When off, the three way direction control valve discharges the residual pressure and blocks air flow in
This product switches air pressure devices air on/off by simply turning the handle
Maintenance or inspection is possible when the remaining pressure in the device is removed
A three way valve discharges the remaining pressure out and blocks the incoming air in the off state
There are 4 types available depending on the way it is applied to the air pressure flow
RS PRO Manual Control Valves
Features and Benefits
• When off, the 3 way direction control valve discharges the residual pressure and blocks airflow
• It switches air pressure devices by simply turning the handle (on/off)
• Maintenance or inspection is possible when the remaining pressure in the device is removed
• A 3 way valve discharges the remaining pressure and blocks the incoming air in the off state
• There are 4 types available depending on the way it is applied to the air pressure flow
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
