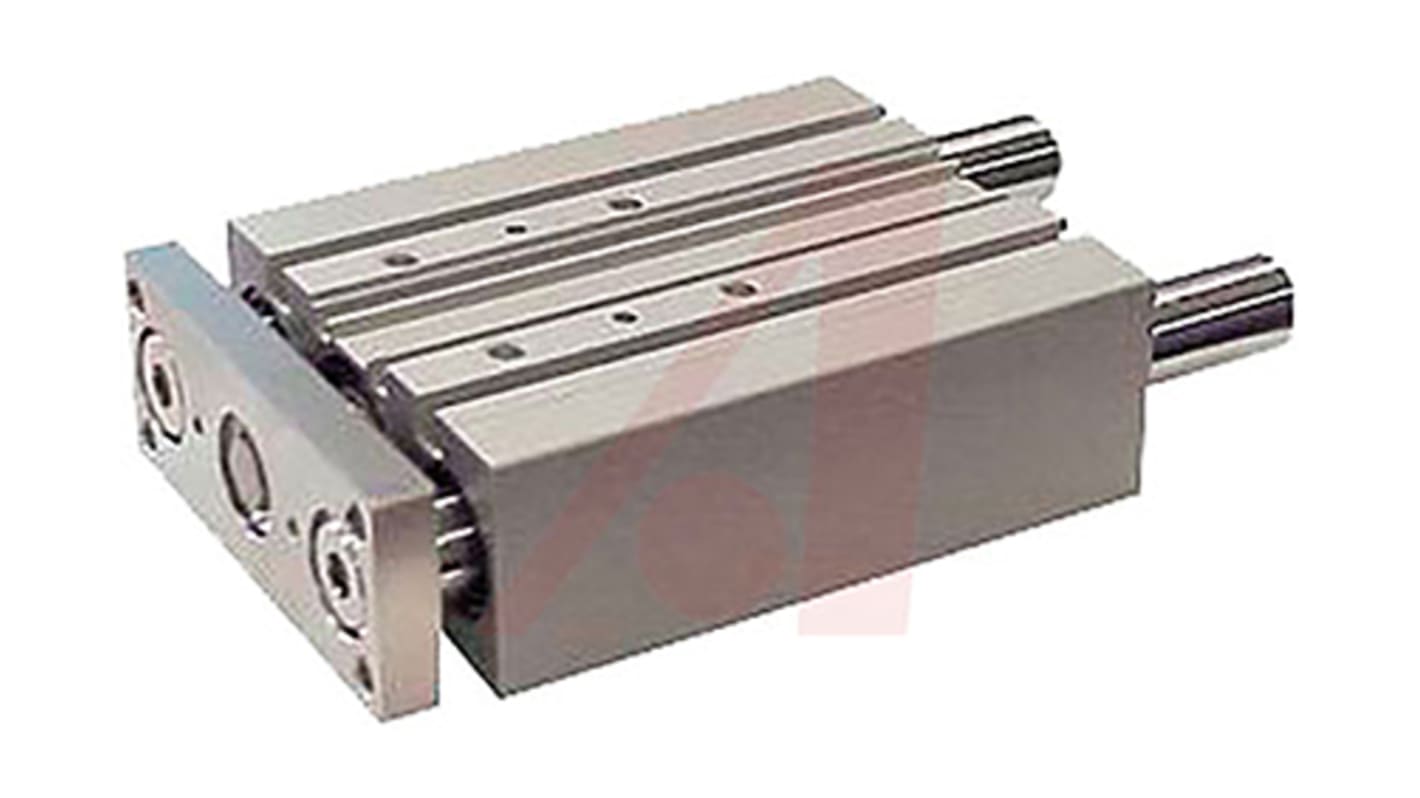

SMC Pneumatic Guided Cylinder 16mm Bore, 50mm Stroke, MGP Series, Double Acting

  • RS Stock No. 844-4127
  • Mfr. Part No. MGPM16-50Z
  • Brand SMC
Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): JP
Product Details

MGP Series Miniature Guided Cylinders

The SMC MGP series of compact guide cylinder is designed for high side load applications found in material handling, lifting and stopping. The MGP series incorporates the cylinder body as part of the guide body to give an ultra-compact design. As the stroke length increases, so does the bearing length, thus enhancing the cylinder's load bearing capacity.

Wide range of bore sizes
Wide range of strokes
Four Mounting Styles Provided
Auto Switches Can Be Mounted on Two Sides
High Mounting and Piping Flexibility

SMC Miniature Guide Rod Cylinders

Specifications
Attribute Value
Manufacturer Series MGP
Action Double
Bore 16mm
Stroke 50mm
Maximum Operating Pressure 1 MPa
Cushioning Type Rubber Bumper
Dimensions 96 x 62 x 25mm
Weight 510g
Maximum Operating Temperature +60°C
Length 96mm
Minimum Operating Temperature -10°C
Height 25mm
Width 62mm
9 In stock for FREE next working day delivery
Price Each
£ 170.96
(exc. VAT)
£ 205.15
(inc. VAT)
Units
Per unit
1 +
£170.96
