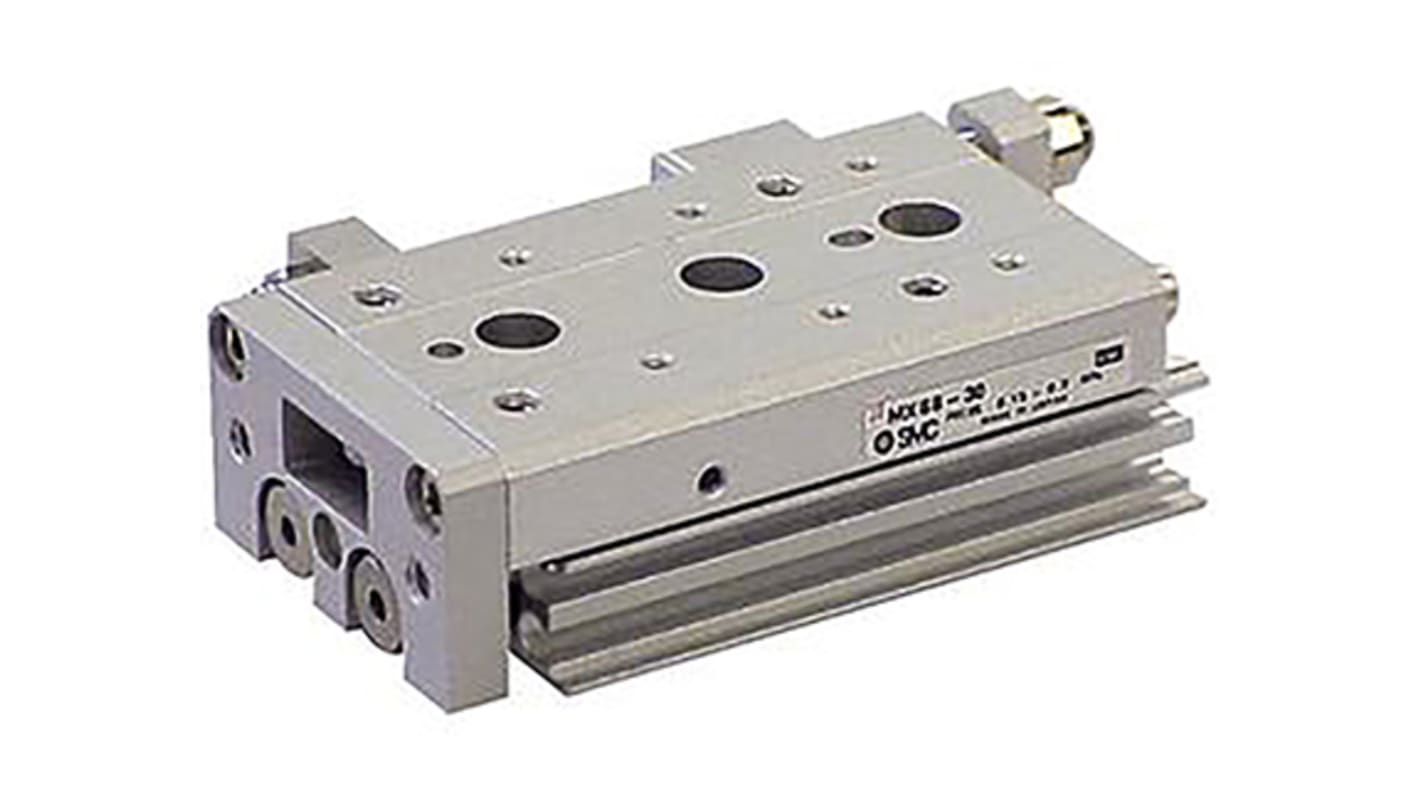

SMC Slide Unit Actuator Double Action, 16mm Bore, 50mm stroke
- RS Stock No.:
- 843-0585
- Mfr. Part No.:
- MXS16-50A
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 843-0585
- Mfr. Part No.:
- MXS16-50A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Stroke | 50mm | |
| Bore | 16mm | |
| Manufacturer Series | MXS | |
| Action | Double | |
| Maximum Operating Pressure | 0.7 MPa | |
| Cushioning Type | Rubber Bumper | |
| Dimensions | 112 x 62 x 40mm | |
| Weight | 760g | |
| Length | 112mm | |
| Absolute Maximum Pressure | 1.05MPa | |
| Height | 40mm | |
| Width | 62mm | |
Select all | ||
|---|---|---|
Brand SMC | ||
Stroke 50mm | ||
Bore 16mm | ||
Manufacturer Series MXS | ||
Action Double | ||
Maximum Operating Pressure 0.7 MPa | ||
Cushioning Type Rubber Bumper | ||
Dimensions 112 x 62 x 40mm | ||
Weight 760g | ||
Length 112mm | ||
Absolute Maximum Pressure 1.05MPa | ||
Height 40mm | ||
Width 62mm | ||
- COO (Country of Origin):
- JP
Air Slide Table Series MXS
SMC MXS series of air slide tables provide the user with a solution for applications which require precise movement and offers a movement range of 10 - 150mm. This is achieved within the MXS series by an integrated cross roller bearing and guide coupled with compact air cylinders for compact force generation.
Available in various bore & stroke sizes to ensure your application is covered
CDU 10 - 32mm Diameter
A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
