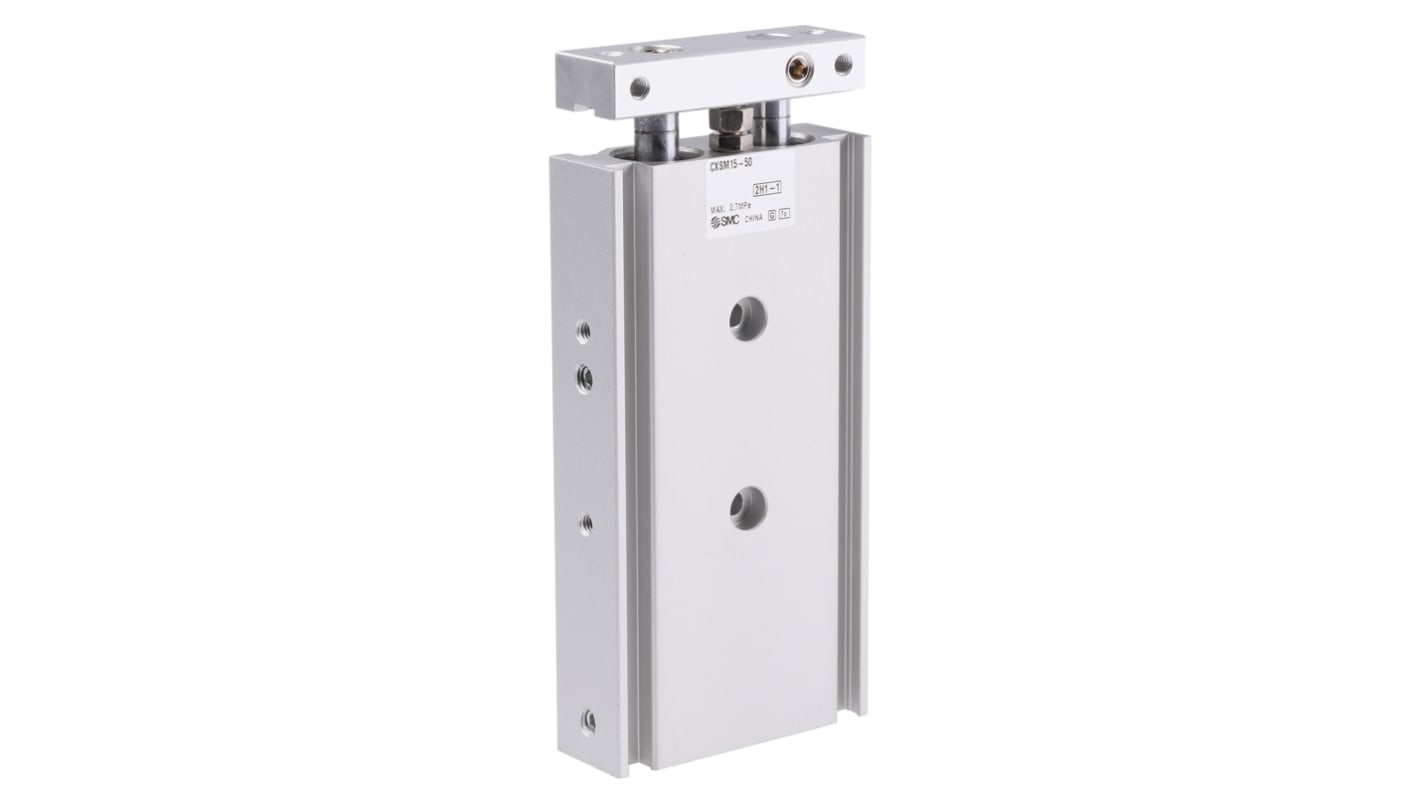

SMC Pneumatic Guided Cylinder 15mm Bore, 50mm Stroke, CXSM Series

  • RS Stock No. 350-0648
  • Mfr. Part No. CXSM15-50
  • Brand SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

SMC CXS Dual-Rod Cylinder Range

SMC Dual-Rod Cylinders with slide bearings (CXSM type) or ball bearing slides (CXSL type), suitable for 'pick-and-place' applications, operating with non-lubricated, filtered, compressed air. Dual-Rod Cylinders feature high non-rotational accuracy, dual port locations, and standard magnetic sensing and buffer cushioning. Integral stroke adjustment may be set to standard stroke less 5mm. The cylinders incorporate a recess for auto switches, and may be used in operating environments from 5 to 60°C.

Specifications
Attribute Value
Manufacturer Series CXSM
Bore 15mm
Stroke 50mm
Maximum Operating Pressure 0.7 MPa
Cushioning Type Rubber
Dimensions 129 x 20 x 58mm
Weight 360g
Maximum Operating Temperature +60°C
Length 129mm
Minimum Operating Temperature -10°C
Width 20mm
Height 58mm
4 In stock - FREE next working day delivery available
Price Each
£ 208.45
(exc. VAT)
£ 250.14
(inc. VAT)
Units
Per unit
1 +
£208.45
