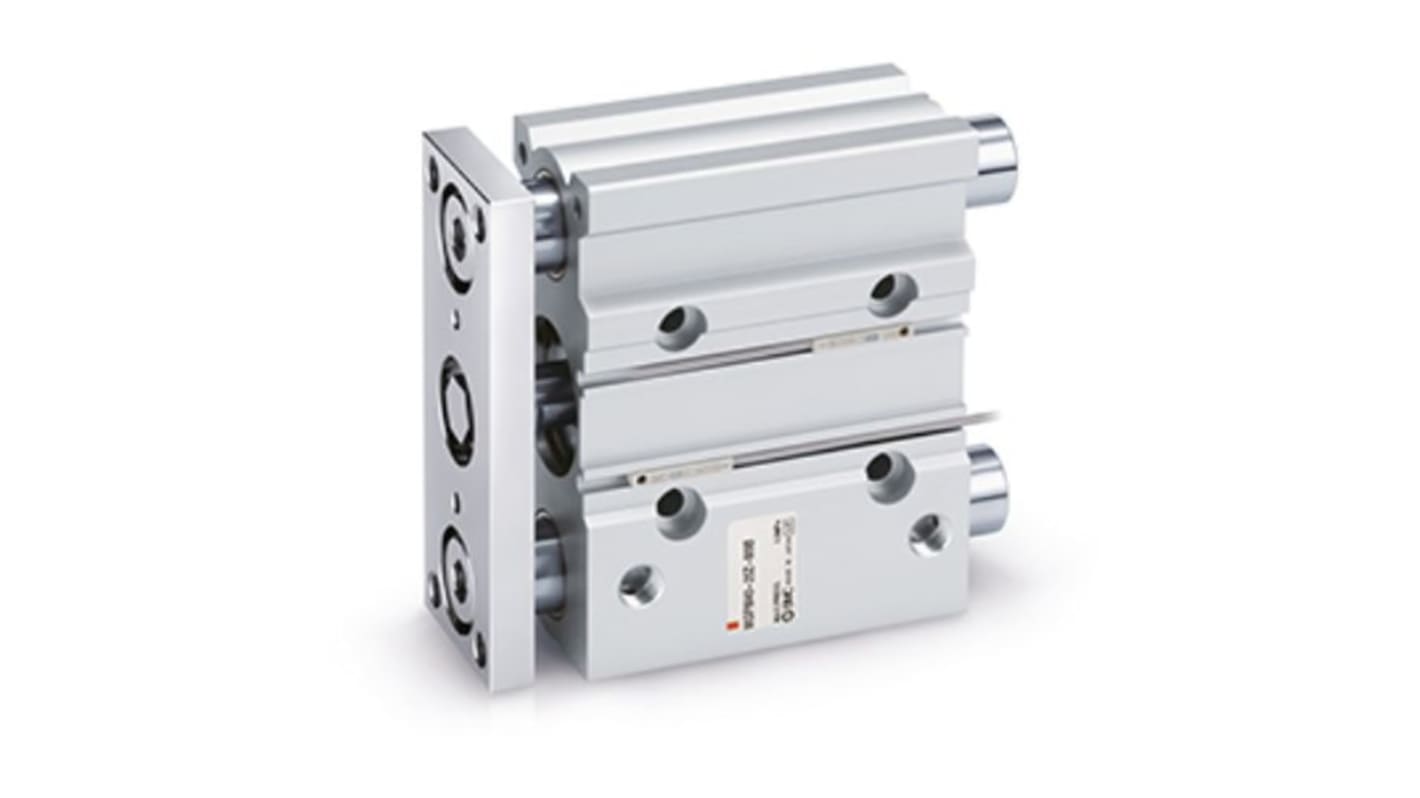

SMC Pneumatic Guided Cylinder - MGPM32 32mm Bore, MGP Series, 175 mm Double Acting Acting

This Compact guide cylinder is a guided pneumatic actuator designed for precise linear motion in automated systems. It provides guided reciprocating movement with a single-rod configuration and is intended for use where Compact guidance and straightforward actuation are required. The unit is suited to industrial automation and Electronic Assembly environments that demand controlled sliding motion and space-efficient installation.

• 32mm bore offering guided stability and repeatable motion
• 175mm stroke enabling extended travel for versatile tasks
• Double-acting design for controlled push and pull operation
• Slide bearing guide type reducing lateral play and wear
• Rubber bumpers at both ends for quieter deceleration
• Maximum piston speed 500 mm/s supporting Rapid cycles

• Suitable for pick-and-place routines in assembly lines
• Ideal for linear positioning in test and inspection rigs
• Used with robotic peripherals requiring guided translation
• Can be used for panel actuation in electrical enclosures
• Used for part transfer systems in small-scale automation

It operates up to 1 MPa, matching common pneumatic supply ranges for industrial equipment.

The cylinder is rated for continuous use up to 60 °C for typical factory ambient conditions.

The rod is a single-ended type with a G-threaded end to accept standard fittings and mounting hardware.

The product conforms to RoHS requirements, indicating limitations on certain restricted substances.

The device weighs 3.65 kg, which informs fixture design and support structures for installation.
