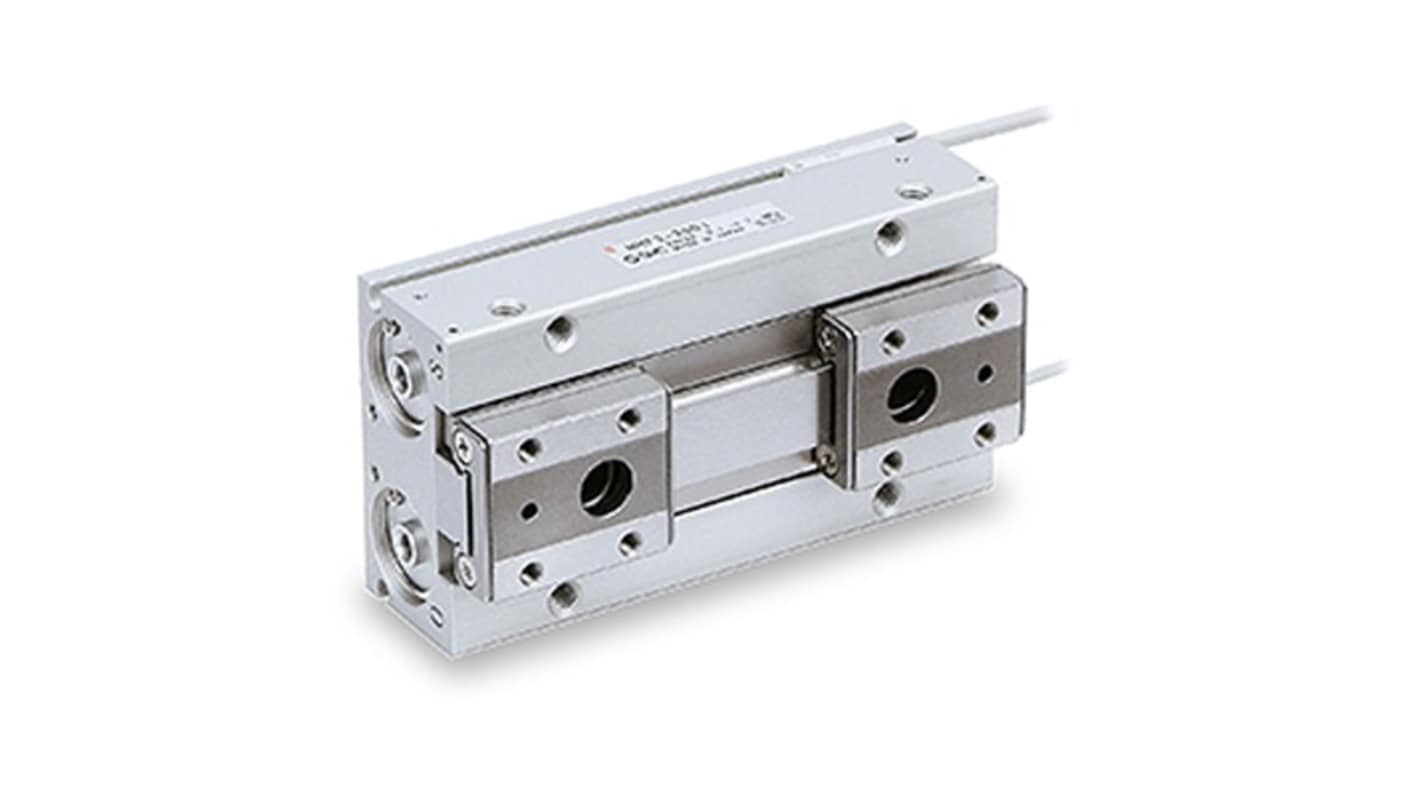

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHF2-20DR, Low Profile Gripping Type

View all Pneumatic Grippers

Subtotal (1 unit)*

£509.40

(exc. VAT)

£611.28

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£509.40

*price indicative

RS Stock No.:
393-162
Mfr. Part No.:
MHF2-20DR
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Bore Size

20 mm

Product Type

Pneumatic Gripper

Number of Fingers

2

Gripping Type

Low Profile

Action Type

Double Acting

Stroke Length

80mm

Series

MHF2

Maximum Operating Pressure

7 bar

Port Size

M5 x 0.8

Weight

645g

Minimum Operating Temperature

-10°C

Closed Width

0mm

Open Width

48mm

Gripping Force - Internal

141N

Gripping Force - External

141N

Maximum Operating Temperature

60°C

Length

62mm

Height

41mm

Standards/Approvals

RoHS

Width

86 mm

Maximum Operating Frequency

120cpm

COO (Country of Origin):
JP
The SMC MHF2 Series low profile air gripper designed to save substantial space. The height of the MHF2 gripper is approximately 1/3 the size of an equivalent MHZ series gripper. Finger strokes are available in short, long, and intermediate for each size. High rigidity can be obtained due to adoption of linear guide.

Compact design allows for easy installation in tight spaces

Robust construction ensures durability in demanding applications

Quick response operation enhances overall system efficiency

Compatibility with various pneumatic systems simplifies integration

Lightweight materials reduce the overall load on machinery

Low maintenance requirements contribute to cost effectiveness

User friendly interface allows for straightforward adjustments
