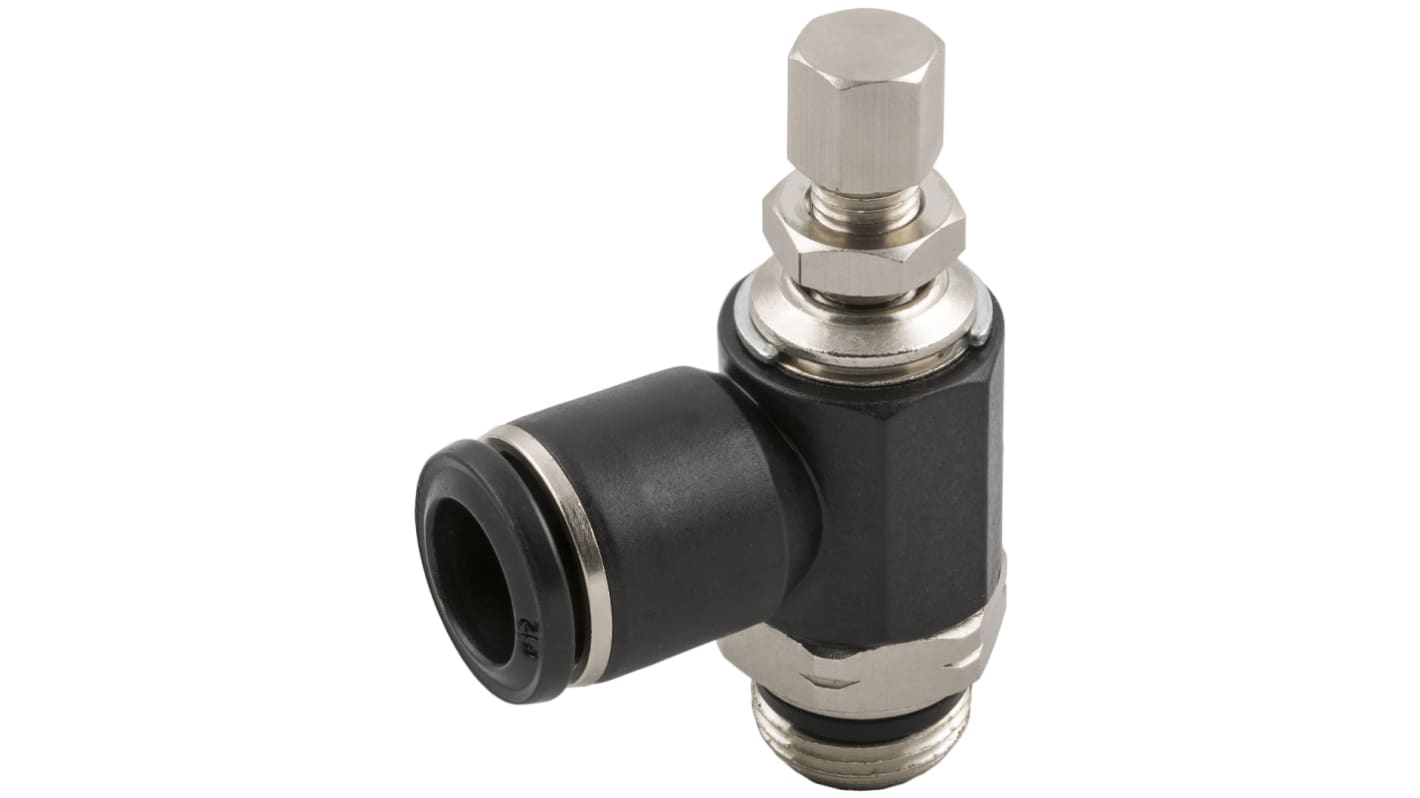

RS PRO Tube Flow Regulator, 6mm Tube Inlet Port

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
187-5711
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Type

Flow Controller

Inlet Port Type

Tube

Tube Inlet Port

6mm

Outlet Port Type

Threaded

Minimum Outlet Pressure

-0.99bar

Maximum Outlet Pressure

20bar

Threaded Outlet Thread Standard

BSP

Body Material

Brass

Threaded Outlet Thread Size

1/8 in

COO (Country of Origin):
IT

RS PRO Inlet Port


The RS PRO orienting flow regulator 6mm tube inlet port has a minimum length of 44mm and a maximum length of 49mm. The port has a nickel-plated brass material body. It is a line in technopolymer, lighter and more compact which offers to demand customer’s high performances.

Features and Benefits


• Quick connection and disconnection
• Operating temperature ranges between -20°C and 80°C
• Outlet pressure ranges between .0.99bar and 20bar
• Threaded outlet thread size of 1/8
• Full Flow and Vacuum resistant tank to special shaped seals
• 3 threads available, BSPP, BSPT (universal short) & Metric
• Lighter and More compact
• Specific configurations to satisfy the advanced robotics
• Silicon Free

Applications


• Robotics
• Automotive
• Textile, packaging and handling
• Vacuum
• Industrial water
• Compressed air circuit

Certifications


• REACH compliant
• ISO 14743:2004
• PED 2014/68/UE
