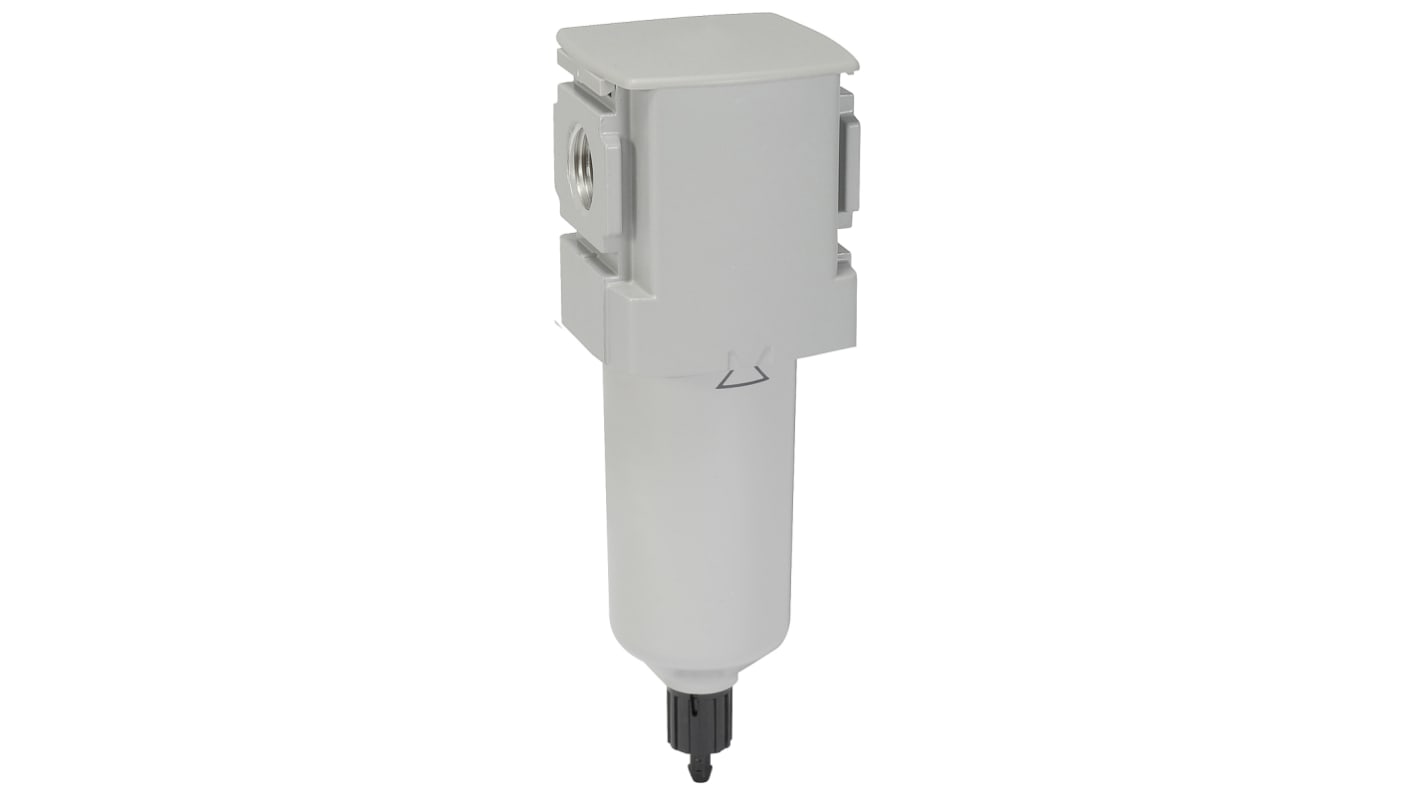

Parker P32 series 5μm G 3/8 150psi to 250 psi Pneumatic Filter 23SCFM max with Manual drain
- RS Stock No.:
- 867-5766
- Mfr. Part No.:
- P32FB13ESMN
- Brand:
- Parker
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 867-5766
- Mfr. Part No.:
- P32FB13ESMN
- Brand:
- Parker
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Filtration Size | 5µm | |
| Port Connection | G 3/8 | |
| Drain Type | Manual | |
| Manufacturer Series | P32 | |
| Maximum Flow Rate | 23SCFM | |
| Minimum Operating Pressure | 150psi | |
| Maximum Operating Pressure | 250 psi | |
| Maximum Operating Temperature | +65.5°C | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | -25°C | |
| Port Connection Thread Size | 3/8 in | |
| Filter Type | Air Filter | |
| Bowl Material | Metal | |
| For Use With | P32 Series Parker Global Air Preparation Systems | |
Select all | ||
|---|---|---|
Brand Parker | ||
Filtration Size 5µm | ||
Port Connection G 3/8 | ||
Drain Type Manual | ||
Manufacturer Series P32 | ||
Maximum Flow Rate 23SCFM | ||
Minimum Operating Pressure 150psi | ||
Maximum Operating Pressure 250 psi | ||
Maximum Operating Temperature +65.5°C | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -25°C | ||
Port Connection Thread Size 3/8 in | ||
Filter Type Air Filter | ||
Bowl Material Metal | ||
For Use With P32 Series Parker Global Air Preparation Systems | ||
- COO (Country of Origin):
- CN
Particulate Filters
Parker's P31 pneumatic particulate filter range for the removal of solid particle contamination and condensed liquids down to a particle size of 5 microns. Suitable for use in a wide variety of industrial compressed air and air preparation solutions and as an upstream filter for all systems employing a coalescing filter
Modular design with integrated ports
Robust & lightweight aluminium construction
High efficiency element as standard
Excellent water removal
One hand operation for easy cartridge removal
Positive bayonet latch to ensure correct & safe fitting
Plastic & metal bowl options
Manual & automatic drain options
Robust & lightweight aluminium construction
High efficiency element as standard
Excellent water removal
One hand operation for easy cartridge removal
Positive bayonet latch to ensure correct & safe fitting
Plastic & metal bowl options
Manual & automatic drain options
P32 Series - Next Generation
