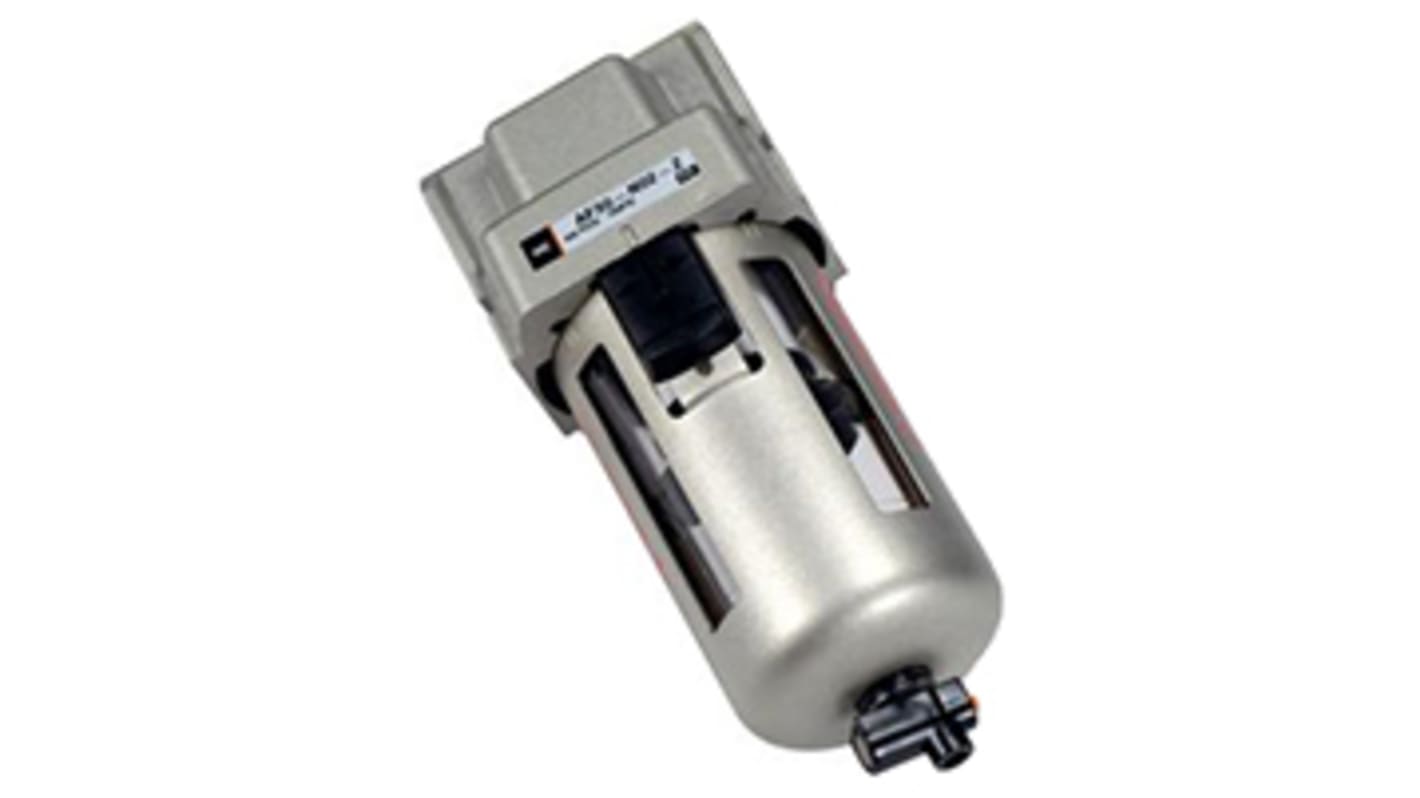

SMC AF series 5μm M5 x 0.8 1 (Operating) MPa, 1.5 (Proof) MPa Pneumatic Filter with Manual drain
- RS Stock No.:
- 827-2133
- Mfr. Part No.:
- AF10-M5
- Brand:
- SMC
Discontinued product
- RS Stock No.:
- 827-2133
- Mfr. Part No.:
- AF10-M5
- Brand:
- SMC
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- CN
Product Details
Modular Air Filter AF10 Series
The AF series modular style air filters are a cost effective solution to your filtration needs. Other SMC air preparation equipment can easily be connected the units due to their modular design. The series offers a wide selection of sizes and accessories.
Modular air filter
Prevents contamination
Lighter weight than old style modular AF
Thickness reduction of resin case provides increased capacity
(approx. 1.3 times more).
Improved water separation efficiency extends the service life of
filter elements
Rc, NPT or G(PF) type threads
Prevents contamination
Lighter weight than old style modular AF
Thickness reduction of resin case provides increased capacity
(approx. 1.3 times more).
Improved water separation efficiency extends the service life of
filter elements
Rc, NPT or G(PF) type threads
Filters, Lubricators and Separators
High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.
Specifications
Attribute | Value |
|---|---|
| Filtration Size | 5µm |
| Port Connection | M5 x 0.8 |
| Drain Type | Manual |
| Manufacturer Series | AF |
| Maximum Operating Pressure | 1 (Operating) MPa, 1.5 (Proof) MPa |
| Maximum Operating Temperature | +60°C |
| Port Connection Thread Standard | Metric |
| Minimum Operating Temperature | -5°C |
| Port Connection Thread Size | M5 x 0.8 |
