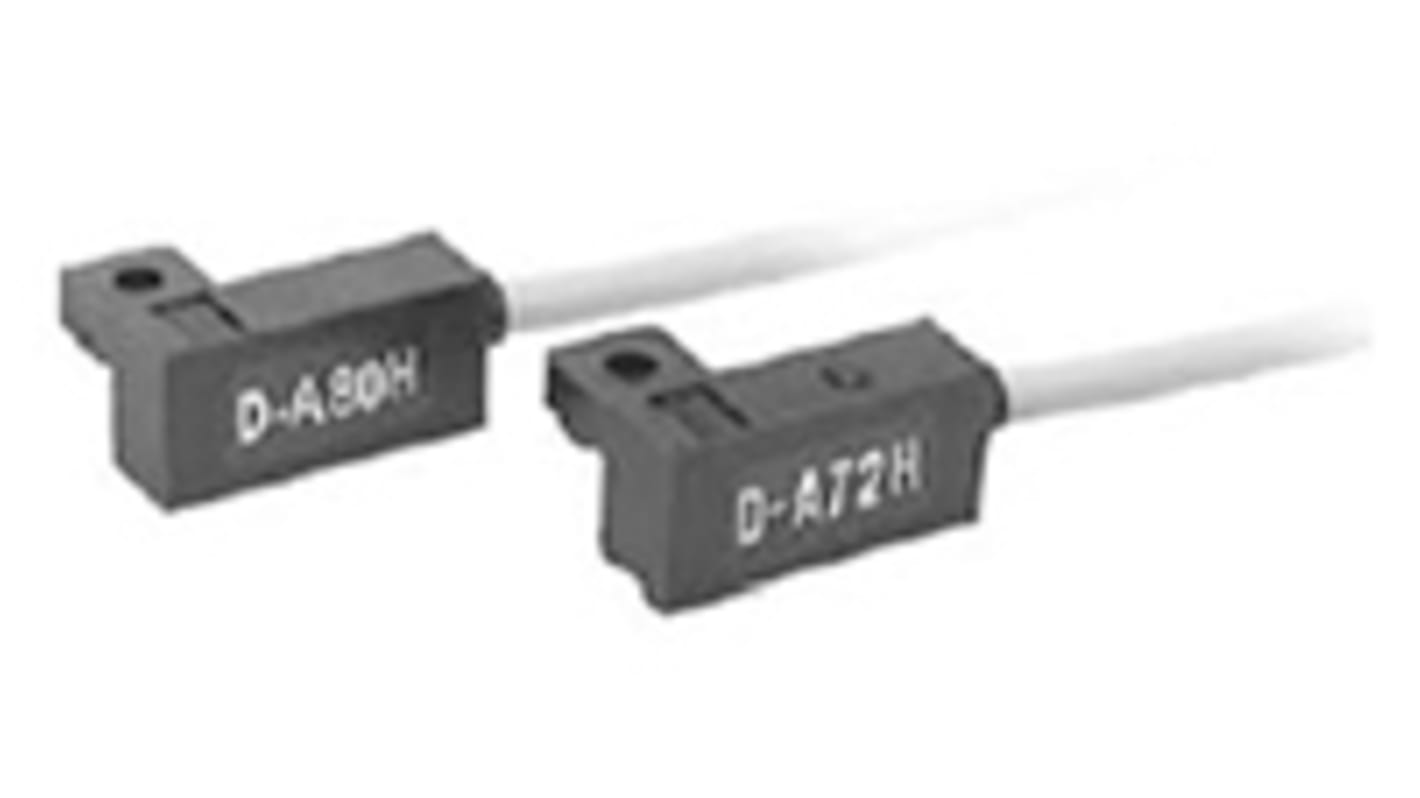

SMC Rail PNP Reed Pneumatic Cylinder & Actuator Switch D-A7 Series, 8V dc LED Indicator
- RS Stock No.:
- 826-2174
- Mfr. Part No.:
- D-A76H
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£21.07
(exc. VAT)
£25.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.07 |
| 5 - 9 | £20.22 |
| 10 + | £19.37 |
*price indicative
- RS Stock No.:
- 826-2174
- Mfr. Part No.:
- D-A76H
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | D-A7 | |
| Product Type | Pneumatic Cylinder & Actuator Switch | |
| Operation Type | PNP | |
| Sub Type | Reed | |
| Mount Type | Rail | |
| Voltage | 8V dc | |
| For Use With | 40 MRQ Series Rotary Actuator, Size 30 CDRA1 Series Rotary Actuator, Size 32 to 63 MHT2 Series Air Gripper, Size 32 | |
| LED Indicator | Yes | |
| IP Rating | IP67 | |
| Switching Current | 40mA | |
| Minimum Operating Temperature | -10°C | |
| Applicable Load | IC Circuit | |
| Maximum Operating Temperature | 60°C | |
| Height | 18mm | |
| Standards/Approvals | IEC 529, RoHS | |
| Width | 15.5mm | |
| Depth | 46mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series D-A7 | ||
Product Type Pneumatic Cylinder & Actuator Switch | ||
Operation Type PNP | ||
Sub Type Reed | ||
Mount Type Rail | ||
Voltage 8V dc | ||
For Use With 40 MRQ Series Rotary Actuator, Size 30 CDRA1 Series Rotary Actuator, Size 32 to 63 MHT2 Series Air Gripper, Size 32 | ||
LED Indicator Yes | ||
IP Rating IP67 | ||
Switching Current 40mA | ||
Minimum Operating Temperature -10°C | ||
Applicable Load IC Circuit | ||
Maximum Operating Temperature 60°C | ||
Height 18mm | ||
Standards/Approvals IEC 529, RoHS | ||
Width 15.5mm | ||
Depth 46mm | ||
Non Compliant
- COO (Country of Origin):
- JP
Sensing Switches
A selection of reed and auto switches from SMC.
Leakage current: None
Operating time: 1.2 ms
Operating temperature: -10 to 60 °C
Standards
Enclosure: IEC60529 Standard IP67
