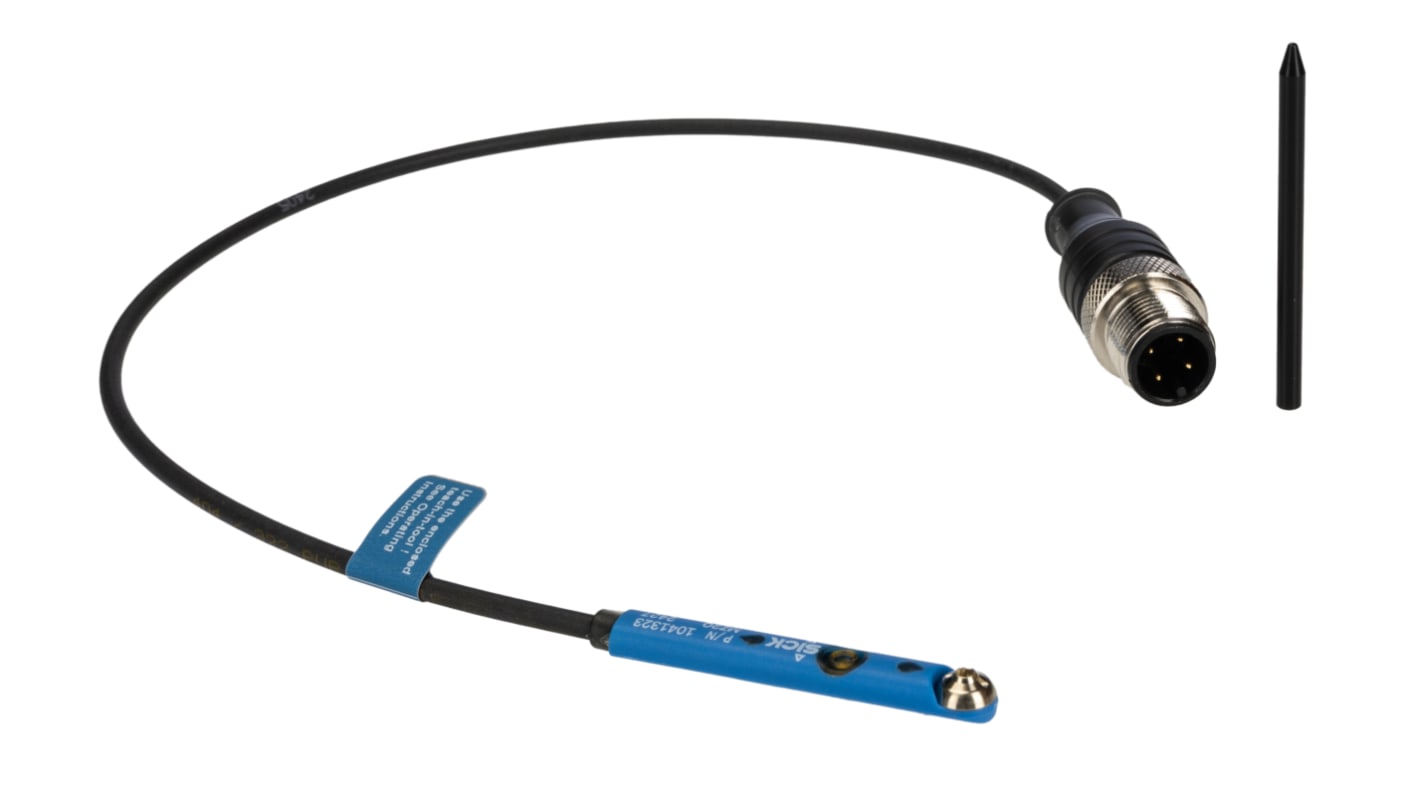

SICK Cable with Connector M12 Pneumatic Sensor, IP67 30V dc, MZ2Q-T LED Indicator
- RS Stock No.:
- 212-8663
- Mfr. Part No.:
- MZ2Q-FTZPS-KQ0
- Brand:
- SICK
Subtotal (1 unit)*
£92.20
(exc. VAT)
£110.64
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 10 August 2026
- Plus 4 unit(s) shipping from 10 August 2026
- Plus 4 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £92.20 |
*price indicative
- RS Stock No.:
- 212-8663
- Mfr. Part No.:
- MZ2Q-FTZPS-KQ0
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Pneumatic Sensor | |
| Output Function | NO | |
| Series | MZ2Q-T | |
| Construction | T-Slot | |
| LED Indicator | Yes | |
| Housing Material | Plastic | |
| Voltage | 30V dc | |
| For Use With | T-Slot | |
| IP Rating | IP67 | |
| Switching Action | 2 x PNP | |
| Minimum Operating Temperature | -20°C | |
| Measurement Principle | Magnetic Cylindrical Sensor | |
| Maximum Operating Temperature | 75°C | |
| Hazardous Area Certification | No | |
| Diameter | 2.6mm | |
| Standards/Approvals | EN 60529, EN 60947-5-2 | |
| Electrical Connection Type | Cable with Connector M12 | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Pneumatic Sensor | ||
Output Function NO | ||
Series MZ2Q-T | ||
Construction T-Slot | ||
LED Indicator Yes | ||
Housing Material Plastic | ||
Voltage 30V dc | ||
For Use With T-Slot | ||
IP Rating IP67 | ||
Switching Action 2 x PNP | ||
Minimum Operating Temperature -20°C | ||
Measurement Principle Magnetic Cylindrical Sensor | ||
Maximum Operating Temperature 75°C | ||
Hazardous Area Certification No | ||
Diameter 2.6mm | ||
Standards/Approvals EN 60529, EN 60947-5-2 | ||
Electrical Connection Type Cable with Connector M12 | ||
- COO (Country of Origin):
- HU
Overview
At a glance
Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders
Drop-in mounting from above simplifies handling and assembly
Easy adjustment of two switching points via teach-in pushbutton
LEDs for indicating the two switching points
Detection range up to 50 mm stroke
Your Benefit
One sensor, two switching points: Reduces commissioning time and costs
Maximum flexibility thanks to a detection zone up to 50 mm
Suitable for precise pneumatic applications due to intuitive and precise definition of two switching points
Quick and easy installation and sensor replacement thanks to drop-in sensor mounting
Flexible sensor settings, monitoring, advanced diagnostics and visualization through IO-Link (depending on type)
On pneumatic cylinders, grippers, or carriages, the MZ2Q magnetic cylinder sensors from SICK are able to detect two end positions or intermediate positions with just one sensor. This is achieved by using two individually adjustable switching points in one sensor housing. This is much easier, quicker, and more cost-effective than conventional solutions, since only one slot is used. As a result, mounting and cabling overheads are halved and applications can be solved efficiently.
Applications
Component detection in the robot gripper
Gripper function monitoring
Part differentiation during gripping
Checking part presence and end position in the loading plate
One sensor with two switching positions for end position monitoring
Monitoring of clamping cylinders
Gripper monitoring using the MZ2Q-C
Detection of two switching positions in solar cell handling
