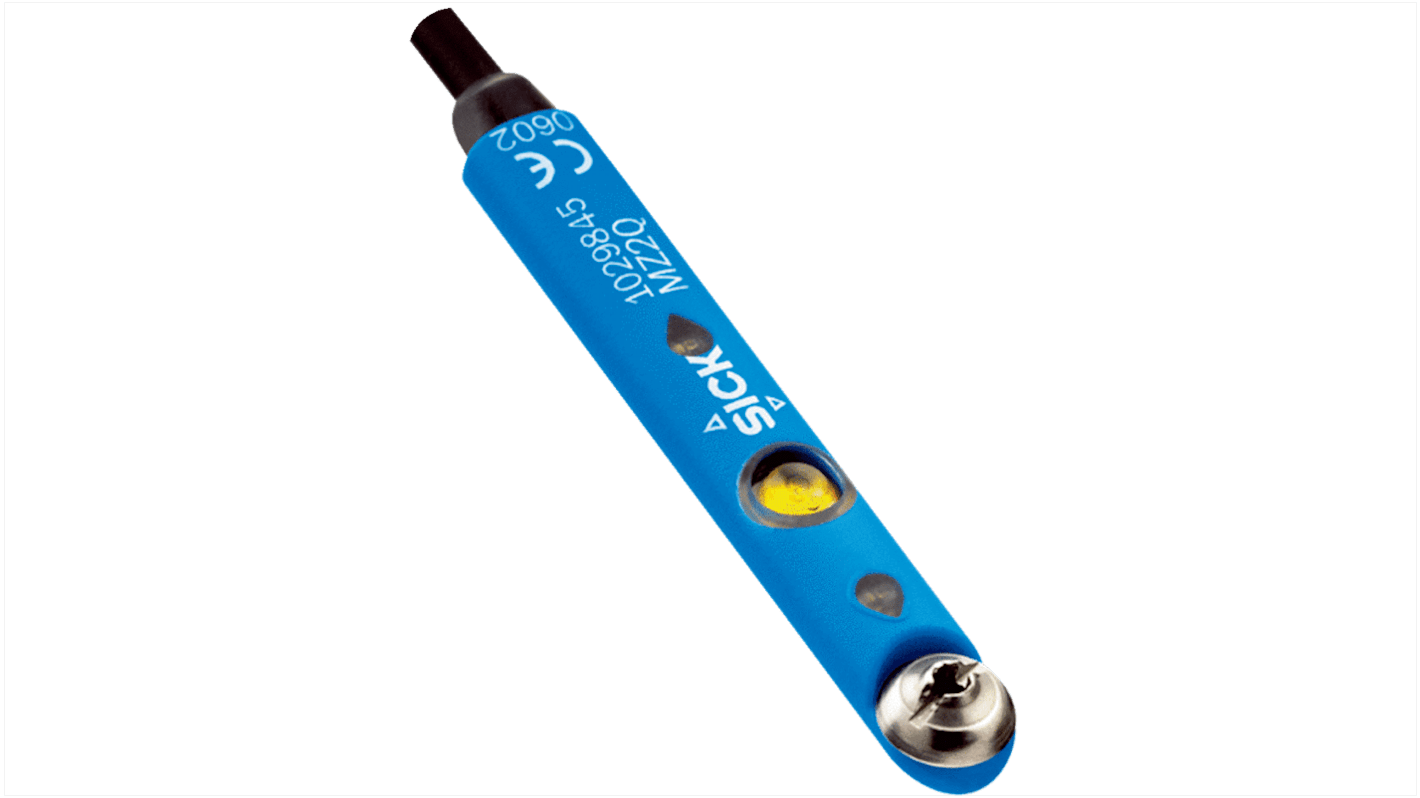

    Sick Magnetic Cylinder Sensor Pneumatic Sensor, IP67, 12 → 30V dc, MZ2Q, with LED indicator

    Sick
    RS Stock No.:
    212-8662
    Mfr. Part No.:
    MZ2Q-FTZPS-KP0
    Brand:
    Sick
    View all Pneumatic Cylinder Sensors
    Available to back order for despatch 03/09/2024
    Add to Basket
    Units

    Added

    Price Each

    £82.78

    (exc. VAT)

    £99.34

    (inc. VAT)

    UnitsPer unit
    1 +£82.78
    RS Stock No.:
    212-8662
    Mfr. Part No.:
    MZ2Q-FTZPS-KP0
    Brand:
    Sick

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    HU

    Product Details

    Overview


    At a glance


    Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders
    Drop-in mounting from above simplifies handling and assembly
    Easy adjustment of two switching points via teach-in pushbutton
    LEDs for indicating the two switching points
    Detection range up to 50 mm stroke

    Your Benefit


    One sensor, two switching points: Reduces commissioning time and costs
    Maximum flexibility thanks to a detection zone up to 50 mm
    Suitable for precise pneumatic applications due to intuitive and precise definition of two switching points
    Quick and easy installation and sensor replacement thanks to drop-in sensor mounting
    Flexible sensor settings, monitoring, advanced diagnostics and visualization through IO-Link (depending on type)

    On pneumatic cylinders, grippers, or carriages, the MZ2Q magnetic cylinder sensors from SICK are able to detect two end positions or intermediate positions with just one sensor. This is achieved by using two individually adjustable switching points in one sensor housing. This is much easier, quicker, and more cost-effective than conventional solutions, since only one slot is used. As a result, mounting and cabling overheads are halved and applications can be solved efficiently.

    Applications


    Component detection in the robot gripper
    Gripper function monitoring
    Part differentiation during gripping
    Checking part presence and end position in the loading plate
    One sensor with two switching positions for end position monitoring
    Monitoring of clamping cylinders
    Gripper monitoring using the MZ2Q-C
    Detection of two switching positions in solar cell handling

    Note


    Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.


    Specifications

    AttributeValue
    TypeMagnetic Cylinder Sensor
    Supply Voltage12 → 30V dc
    Manufacturer SeriesMZ2Q
    Compatible WithT-Slot
    LED IndicatorYes
    IP RatingIP67
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature+75°C
    Outlet PortWire
